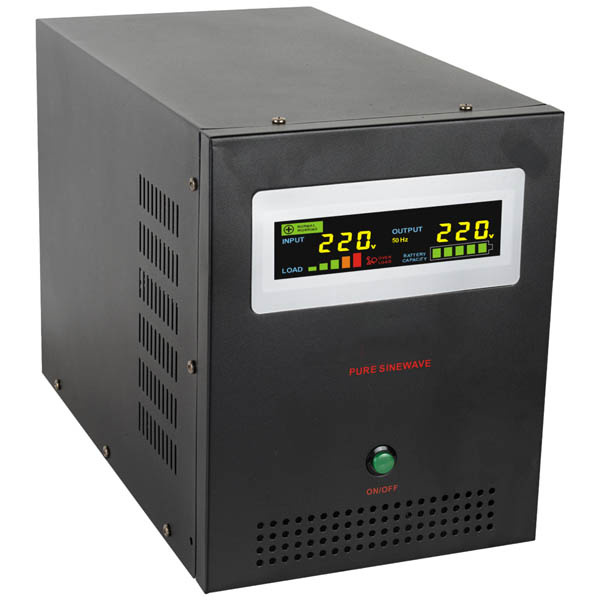

3000va Pure Sine Wave UPS off-Grid Solar Inverter
| Price: |
US $ 68-70/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Product Description
Features:- Pure sine wave output
- CPU control technology; SCM control
- Strong ability of impact resistance
- Wide input voltage range: 90-280V; four step AVR (three step boost, one step reduction voltage)
- Protection against overload, short-circuit, overvoltage, under-voltage and over-temperature, etc.
- Anti reverse connection protection and high-low voltage protection(option)
- Special overload protection: when it is overload, it will lock the unit automatically,when it restores,it will restart the unit automatically again.
- Strong inverter ability. It can change frequency immediately and it is able to drive the inductive load such as air conditioner, refrigerator, motor, etc.
- Powerful charge current: 500 W up to 15 A, 1 KW-4 KW up to 25 A
- LED or LCD display (option)
- Meet the need of different power supply
- Use MOSFET and IGBT
- Intelligent battery management; provide the battery overcharge, discharge protection extend battery life
Application:Apply to television, refrigerator, battery furnace, fan, microwave oven, air conditioning and other household devices.Specifications: | Model | PSI-500 | PSI-800 | PSI-1000 | PSI-1500 | PSI-2000 | PSI-2500 | PSI-3000 | PSI-5000 |
| Rated Capacity | 500VA | 800VA | 1000VA | 1500VA | 2000VA | 2500VA | 3000VA | 5000VA |
| Rated Power | 300W | 500W | 700W/800W | 1000W / 1050W | 1400W/1500W | 1800W | 2000W / 2100W | 3000W / 3500W |
| NO-LOADING Current (DC mode) | | <1.4A | <1.4A | <1.4A | <1.2 | <1.2 | <1.2 | <1.2 | <1.2 |
| Transformer | C.R.G.O |
| Interface | LCD |
| Display Status | working & loading & battery |
| Input | Voltage | 140~275 Vac |
| Frequency | 45~65 Hz |
| Output | Voltage | 220Vac ±1% for inverter; 220Vac ±8% for regulator |
| Frequency | 50/60 Hz ± 0.5Hz, subject to the main |
| Wave form | Pure sinve wave |
| Wave distortion | ≤ 3% |
| Protection | Overload | Yes |
| High temperature | Yes |
| Output high/low voltage | Yes |
| Battery low voltage | Yes |
| Battery | Over-charge, over-discharge, reversed polarity protection (optional) |
| Short circuit | Yes |
| Transfer Time | ≤ 4ms |
| Battery Voltage | 12V DC | 12V DC | 12V DC | 24V DC | 24V DC | 24V DC | 48V DC | 48V DC |
| Charge Voltage | 13.8V±0.5V | 13.8V±0.5V | 13.8V±0.5V | 27.6V±0.5V | 27.6V±0.5V | 27.6V±0.5V | 55V±1V | 55V±1V |
| Low Battery Voltage Limit | | 11V ±0.5V | 11V ±0.5V | 11V ±0.5V | 22V ±1V | 22V ±1V | 22V ±1V | 44V ±1V | 44V ±1V |
| Battery Low Voltage Protection Point | | 10.5V ±0.5V | 10.5V ±0.5V | 10.5V ±0.5V | 21V ±1V | 21V ±1V | 21V ±1V | 42V ±1V | 42V ±1V |
| Charge Current | Max. 10-20A Optional |
| Cooling system | Yes |
| Environmental | Operating temperature | 0 - 40 ºC |
| Relative humidity | 10%~90% RH, non-condensing |
| Storage temperature | -15 - 45 ºC |
| Appearance | Inverter size (mm) | 341x146x210 | 384x219x275 |
| Inverter N.W. (kg) | 5.60 | 7.00 | 8.15 | 9.20 | 13.20 | 16.20 | 17.20 | 23.60 |
| Inner box size (mm) | 405x195x265 | 445x270x340 |
| Qty/Ctn | 2 | 1 |
| Carton size (mm) | 445x430x285 | 445x270x340 |
| Carton G.W. (kg) | 13.60 | 16.40 | 18.30 | 20.60 | 14.00 | 17.00 | 18.00 | 25.20
|
Founded in 2005, SUNKAX Technology Limited is a leading manufacturer and exporter for clean power, such as solar inverter, step up/down voltage transformers, consumer electronics (travel charger adaptors, USB Chargers, output power distribution board, etc. ).
Our products are exported to different countries all over the world, be popular in market for high quality, attractive packing, favorable price, and also excellent service.
With a 19, 000 factory, 8 production lines and over 150 well-trained workers, we turn out 90, 000 units monthly. All our products for export must strictly pass IQC inspections on critical components, 100% online testing, under loading and burn-in testing
SUNKAX has been a pioneer of technology. Back in 2005, we explored the key technology of aluminum transformer production and became the first aluminum transformer supplier
In the automatic voltage regulator field, we developed our own high performance MCU controlled circuit and have obtained several registered patents for our products. We developed air-conditioners stabilizers the best solution to meet your demand.
In inverter/UPS field, We are the 1st to invent toroidal inverters. Which have outstanding advantage of low idle current, low electromagnetic interference, long back-up time and high efficiency. Equipped 32-bit speed CPU control with accurate detection and unique C. R. G. O toroidal transformers, including our solar integrated inverters, all core technology are developed by own R&D team, which makes us one of few factories who holds the key technology.
In guidance of strong R&D team, we are able to produce the exceptional reliable products with the help of skillful working staff, comprehensive quality system and advanced equipments such as newest wave(flow) soldering, and burn-in testing line.
Ongoing research and being creative is what keeping our products at the top of our industry.
Our quality policy:
Everyone participates, continuous improvement, innovation.
Our management idea:
Based on good staff, concentrating on quality and efficiency, keeping on providing customers with excellent service.
Welcome to contact us today for your next OEM/ODM project.
