3000W Semiconductor Laser Cladding Machine for Heavy-Duty Machinery

3000W Semiconductor Laser Cladding Machine for Heavy-Duty Machinery
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Prod Model: GS-LS3DA
Power Instability: ±2%;
Working Method: Continuous
Max. Power Consumption: 15kw
Rated Laser Output Power: 4000W
Laser Wavelength: 900-1070nm

Product Description

3000W Semiconductor Laser Cladding Machine for Heavy-Duty Machinery

Optical guide system:
Function of optical guide system is to switch and guild the laser beam into laser cladding head, making its finally works on the workpiece surface.Optical guide system is composed of fiber and laser cladding head, laser cladding is installed on the sixth shaft head of robot.
1, Optical fiber: Using LASERLING special conductive fiber.Conductive fiber have standard connectors, which can change processing head quickly, easy for dismounting. When the optical fiber transmit energy, it has self-protection function.Specifications are as follows: core diameter 1000 um, numerical aperture NA0.22, 20 m in length, fiber optic connector socket LLK.
2., Cladding head: We choose original imported laser cladding head from laserline.


Product


Specification:

Model

GS-LS3DA

Max.Outside Diameter

70mm

Optical Diameter

44mm

Machine Weight

5kg(Does Not Contain The Nozzle)

Laser Beam Quality

60mm.Mrad

Collimating Focal Length

81mm

Focal Length

400mm

Spot Size

Ф3mm

22mm×3mm(Optional)

Optical Fiber Connector Socket

LLK-D

Storage Temperature

5-65º

Operating Temperature

Max.50ºC

Temperature

Non-Condensing

Technical parameters
1.Laser safety level: I
2.Power Instability: ±2%;
3.Working method:Continuous
4.Storage Temperature:5~65ºC
5.Max. power consumption:15KW
6.Laser Wavelength:900-1070nm;

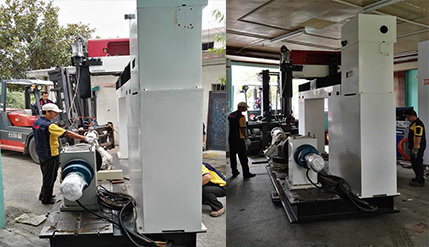

The machine is used in foreign customers

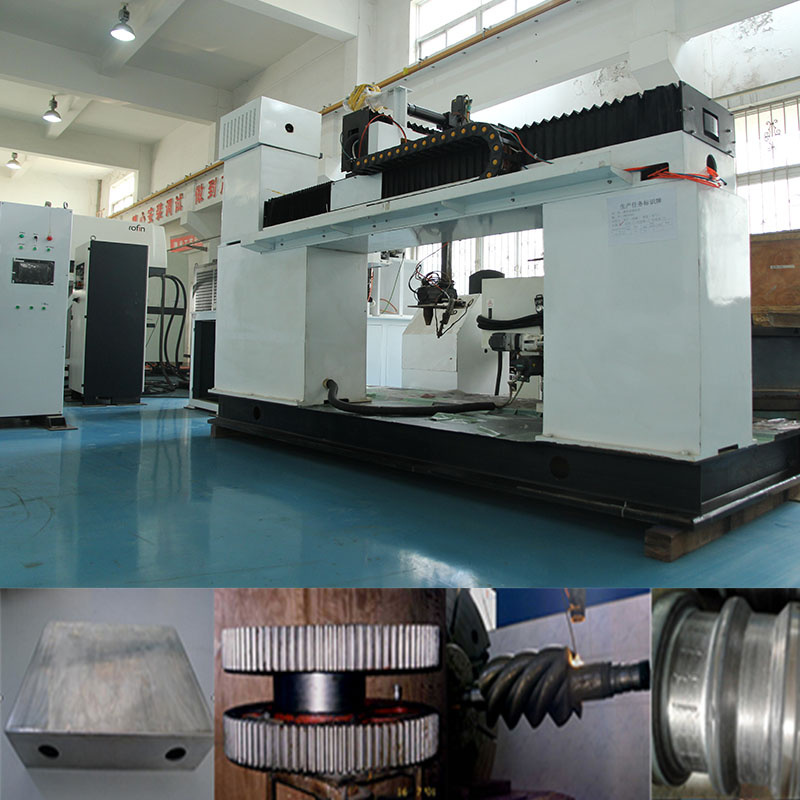

Applications:
Can complete the shaft parts, flat parts laser processing, widely used in hardware,mining, steel, aerospace and industrial area, can complete the laser surface hardening, laser surface alloying, two kinds of laser machining process, significantly improve the quality of related industries and equipment manufacturing.

Our company

Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.

Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.

Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
