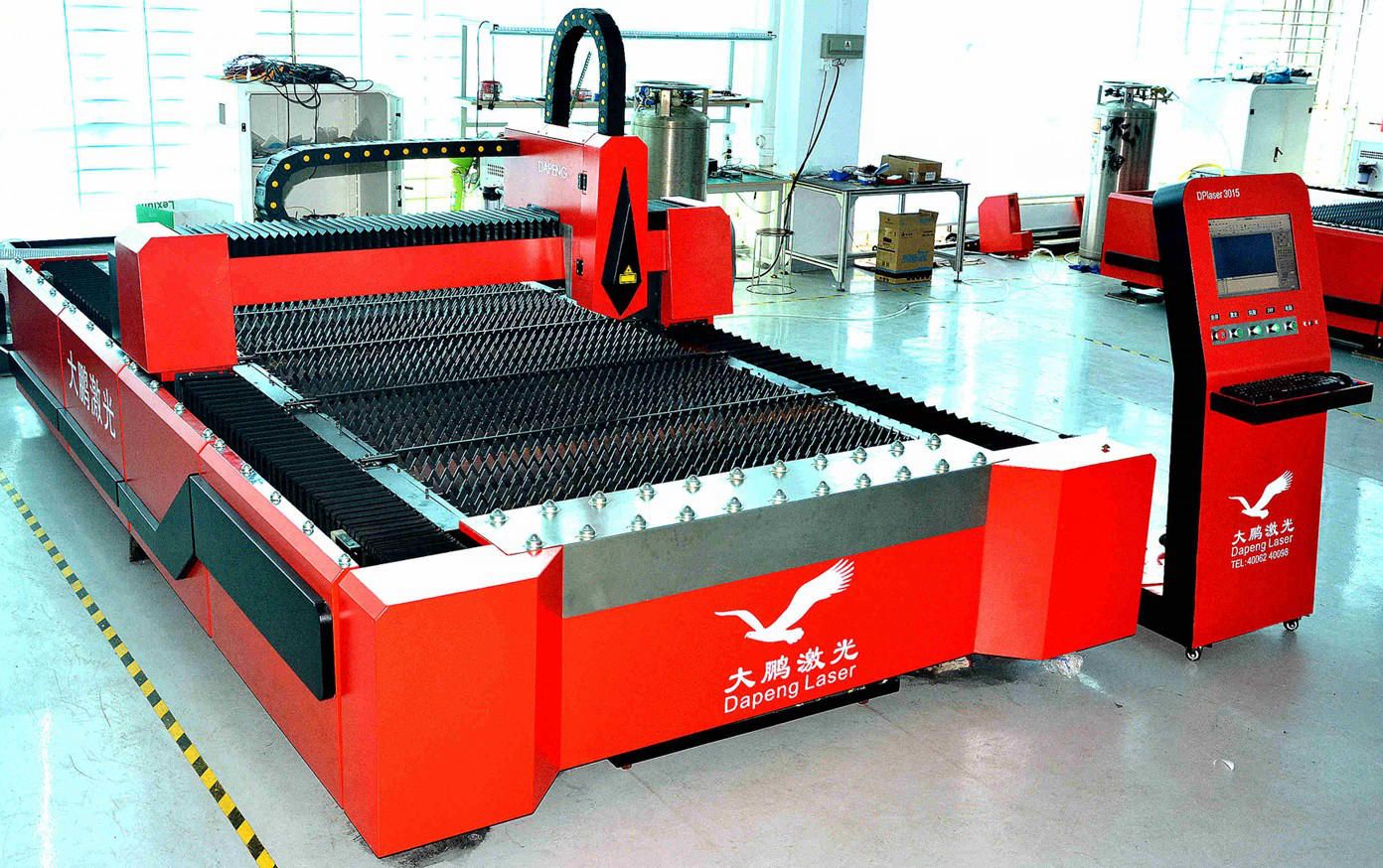

3000X1500 High Power Cutting Machine for 5mm-12mm Stainless Steel

Name: 3000X1500 High Power Cutting Machine for 5mm-12mm Stainless Steel
Brand: all-electronics-online.com
SKU: 715015372
Availability: InStock
Rating: 4.6 (108 reviews)

Price:	US $ 59000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DPLC3015-1000I-D04
Electrical Requirements:	380V/50Hz.60AMP
Type For Cutting Machine:	Laser Cutting Machine
Outline Size(mm):	4270mm2420mm1750mm (LWH)
Automation:	Automatic
Condition:	New
Servo:	Japan
Cooling Mode:	Water Cooled
Certification:	CS, SGS, ISO 9001:2008
Type:	High-Power Laser Cutting Machine
Transmission Way:	Y-Axis Imported Gear Rack Double Driver

Product Description

Main Feature:

1, Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
2, Flexibility and precision cutting of simple or complex parts
3, Adopts imported world brand fiber laser/Life time over 100,000hrs
4, Imported servo motor and gearing system ensure precision cutting
5, High quality cut with no extra finishing required
6, Higher cutting speed and efficient, speed of cutting plate over 10 meters per minute
7, Non contact cut which means no marks or contamination of the material
8, Ability to cut virtually any sheet metal

Model	DPLC3015-500I	DPLC3015-1000I
Medium of laser	Semiconductor pump continuous ytterbium doped fiber
Laser wavelength	1070nm
Laser output power	500W	1000W
Cutting area(mm)(L×W)	3000mm×1500mm
Max cutting speed(m/min)	18 m/min	24 m/min
Min line width	< 0.1mm	< 0.125mm
Cutting depth	0.2mm---5mm	0.2mm---8mm
Driving Way	Imported servo motor
Tranmission Way	Y-axis imported gear rack double driver,X-axis imported gear rack
Operational Temp Range	10 ~ 40ºC
Electrical Requirements	380V/50Hz.60Amp
Cooling Mode	Water cooled
Continuous working time	24 hours
Warranty:	2 years on laser source
Weight	About 3000kg
Outline size(mm)	4270mm×2420mm×1750mm (L×W×H)

Cutting speed compare

Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military, semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets. With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last 10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil, Colombia, and South Africa, among others.

Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will have a chance to give you a great laser solution with Dapeng Laser products.

Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost effectiveness, and technical support.
