| Prod Model: |
YZ-800KG-1P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Rolling Door Motor |
| Model: |
Yz-800kg-1p |
| Voltage Requirement: |
110V/230V/380V |
| Phase: |
Singe Phase /Three Phases |
| Lifting Force: |
300-1500kg |
| Motor Species: |
Asynchronous Motor |
| Characteristic: |
Silent Moving Noiseless |
| Great Advantage: |
Obstacle Detection System Within |
| Appearance: |
Vogue and Delicate |
| Number Of Stator: |
Single-Phase |
| Function: |
Driving |
| Brand: |
Universal |
Product Description

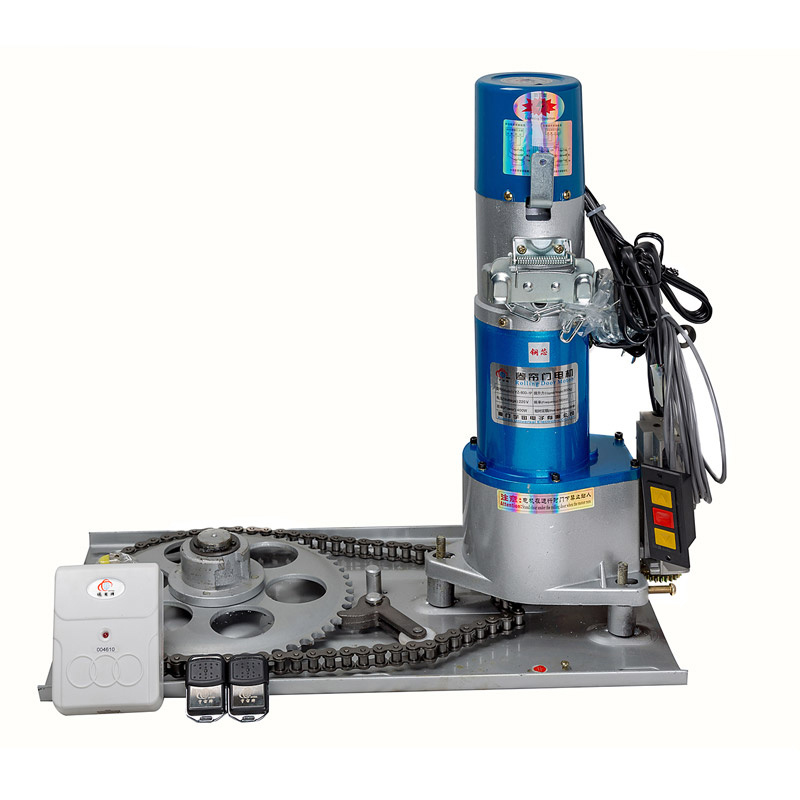

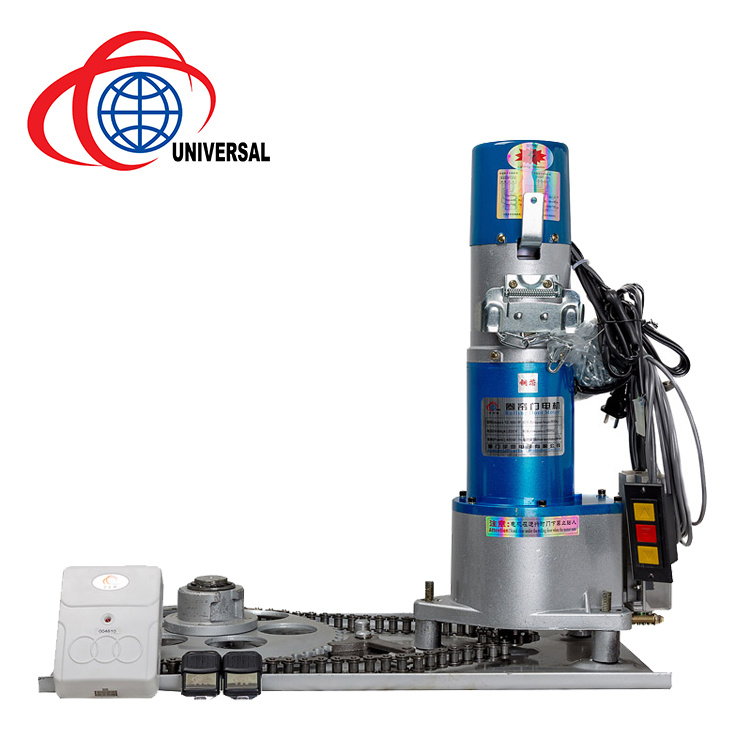

300kg-2000kg Automatic Remote Control Rolling Door Motor
Xiamen Universal Electronic Co.,Ltd, with our strong R&D capabilities and strict product quality control, our Door Motor have been well received and have been gaining poularity both at home and overseas. Motor passed numerous insulation tests in heat, sound and wind, which meet the recent trend of energy saving. Our good reputation in innovation and quality has brought in numerous exporting business and inland trade. If you interesting in our Rolling Shutter Motor or other products, warmly welcome contact us.
Details about our Rolling Door Motor 1 100% copper material inside the motor, so it have a larger capacity and durable than other motors.
2Overheat protection:The motor is with overheat protect equipment. If the temperature up to 110, the power supply will be cut off automatically to protect the motor. Till the temperature down to 70, it can be used again.
3 Mechanic Limit switch adjusts the door position in both "up" and "down" precisely and safely.
4 With convenient and stability control function, can be operated by remote control;
5 Manual button: Up, Stop and Down.You can through the manual button which makes the rolling door open and close.
6 Operated by manual chain when power off.
7 Clutch lever: When the power is turned off,you can pull down the clutch lever,the rolling door closed.
Rolling Door Motor Working Environment and Conditions :
1) Relative humidity:90%(25°C).
2) Air temperature change as well as season.
3) Voltage and frequency is in line with the product nameplate.
4)Short hour working system, continuous operation not exceeding 5 minutes
Rolling Door Motor Parameters:
Model No. | Max Upgrade Weight
(KG) | Max Upgrade Height
(M) | Output Power
(W) | Current Rating
(A) | Output Torque (N.m) | Rotation
(r/min) | Chain NO. |
| 220V 50Hz (230V 60Hz) |
| YZ-300-1P | 300 | 4.5 | 250 | 2.5 | 168 | 4.0 | 08B |
| YZ-500-1P | 500 | 6 | 370 | 3.5 | 345 | 5.9 | 10A |
| YZ-600-1P | 600 | 6 | 370 | 3.5 | 412 | 5.2 | 10A |
| YZ-800-1P | 800 | 6 | 400 | 1.3 | 650 | 4.8 | 10A |
| 380V 50Hz (380V 60Hz) |
| YZ-800-3P | 800 | 6 | 370 | 1.3 | 650 | 4.8 | 10A |
| YZ-1000-3P | 1000 | 10 | 400 | 1.5 | 810 | 4.2 | 12A |
| YZ-1300-3P | 1300 | 10 | 600 | 2.0 | 1050 | 4.2 | 12A |
| YZ-1500-3P | 1500 | 10 | 800 | 2.5 | 1220 | 3.8 | 12A |
| YZ-2000-3P | 2000 | 10 | 1200 | 4.5 | 2450 | 3.6 | 12A |
Raw Material Following By :
You as the customers and we as the manufacturer will get a peace of mind in knowing that
the best material are used on our remote control rolling shutter motor which will guarantee the quality of our products and services for many years to come.

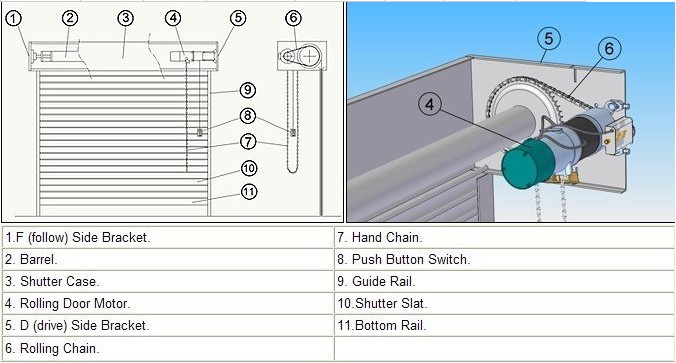

Rolling Door Motor Application:Automatic Door Motors are widely used in shopping malls, hotels, warehouses, garages, post office and
telecommunications, banks, shops, factories and other buildings' rolling door opening and closing.Door Security Motor
is an ideal accessory products of modern architecture

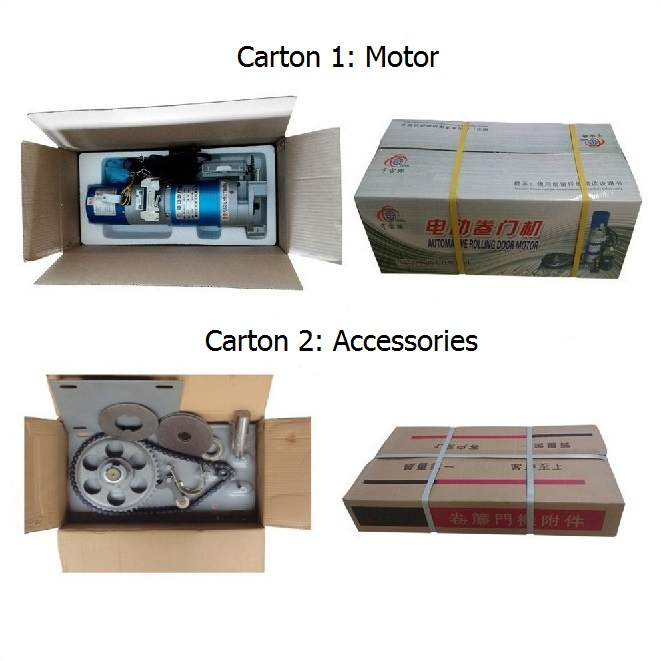

Rolling Door Motor package:
High quality and professional service is always quaranteed in our factory.Any question, feel free to contact us!
