| Prod Model: |
YZ-300KG-1P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Garage Door Motor |
| Power Supply: |
220V 50Hz |
| Remote Control: |
Yes |
| Manufacturer: |
Yes |
| Max Upgrade Weight: |
300kg |
| Max Upgrade Height: |
4.5m |
| Power: |
250W |
| Number Of Stator: |
Single-Phase |
| Function: |
Control |
| Brand: |
Universal |
Product Description
300kg AC Remote Control Electric Automatic Garage Door and Gate MotorGarage Door Motor Specifications:1)Max Upgrade Weight: 300KG
2)Max Upgrade Height: 4.5M
3)Rated Power: 250W
4)Rated Current: 2.5A
5)Output Torque: 168 N. M
6)Rotation Speed: 4.0 r/min
7)Chain Number: 0.8B
Door Motor Working environment and conditions:1) Voltage and frequency is in line with the product nameplate.
2) Short-time work system, continuous working not exceeding 5 mins.
3) Roller Door Motor are using 220V or 380V AC power supply;
4) Can be matched with manually lock button and security locking;
Electric Gate Motor Functions:1) Shell: Aluminium alloy, solid and light;
2) Remote control: Long-distance operation;
2) It is convenient to manual operation when power failed;
3) Thermal protection device could protect rolling door from damage and motor burned;
4) Operations are stable, low noise, small vibration.
Application of Electric Door Motor:Widely used in shopping malls, hotels, warehouses, garages, banks, shops, factories and other buildings' rolling door opening and closing. It is an ideal accessory products of modern architecture.
Data Sheet of Garage Door Motor
Model No. | Max Upgrade Weight
(KG) | Max Upgrade Height
(M) | Output Power
(W) | Current Rating
(A) | Output Torque (N.m) | Rotation
(r/min) | Chain NO. |
| 220V 50Hz (230V 60Hz) |
| YZ-300-1P | 300 | 4.5 | 250 | 2.5 | 168 | 4.0 | 08B |
| YZ-500-1P | 500 | 6 | 370 | 3.5 | 345 | 5.9 | 10A |
| YZ-600-1P | 600 | 6 | 370 | 3.5 | 412 | 5.2 | 10A |
| YZ-800-1P | 800 | 6 | 400 | 1.3 | 650 | 4.8 | 10A |
| 380V 50Hz (380V 60Hz) |
| YZ-800-3P | 800 | 6 | 370 | 1.3 | 650 | 4.8 | 10A |
| YZ-1000-3P | 1000 | 10 | 400 | 1.5 | 810 | 4.2 | 12A |
| YZ-1300-3P | 1300 | 10 | 600 | 2.0 | 1050 | 4.2 | 12A |
| YZ-1500-3P | 1500 | 10 | 800 | 2.5 | 1220 | 3.8 | 12A |
| YZ-2000-3P | 2000 | 10 | 1200 | 4.5 | 2450 | 3.6 | 12A |

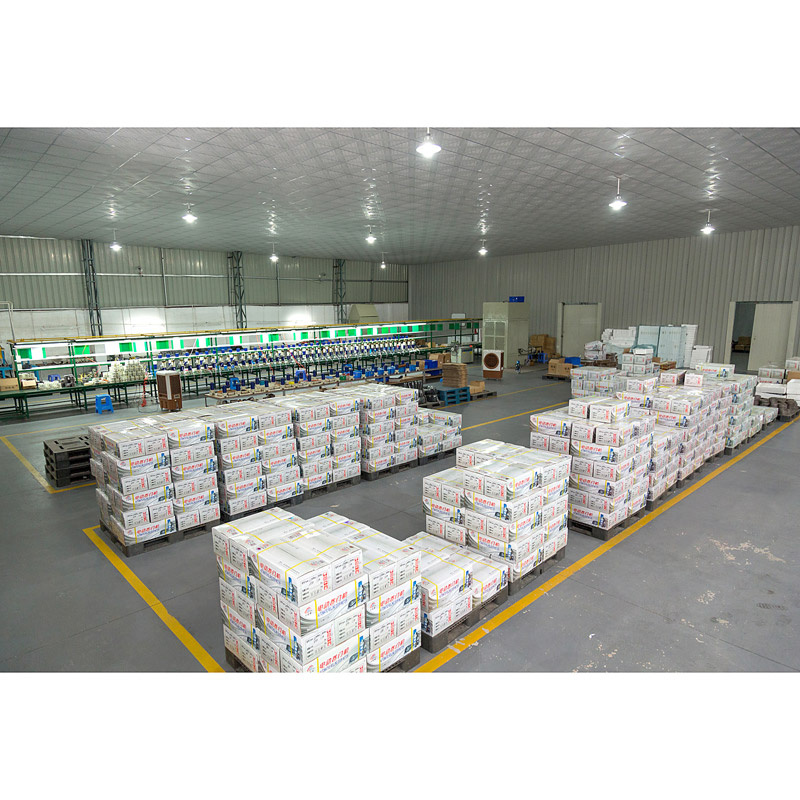

Packing info for Electric Automatic Garage Door and Gate Motor
Company Info:Xiamen Universal Electronic Co., Ltd, with our strong R&D capabilities and strict product quality control, our Rolling Door Motor have been well received and have been gaining popularity both at home and overseas. All products passed numerous insulation tests in heat, sound and wind, which meet the recent trend of energy saving. Our good reputation in innovation and quality has brought in numerous exporting business and inland trade. If you have any interest in our motors, please browse our website for further imformation or contact us immediately.
Name: James YanMobile: +86 13388659290 Tel: 86-579-86878277Thank you for visiting our website. If you have more questions, please connect us freely. We will answer you as soon as possible.

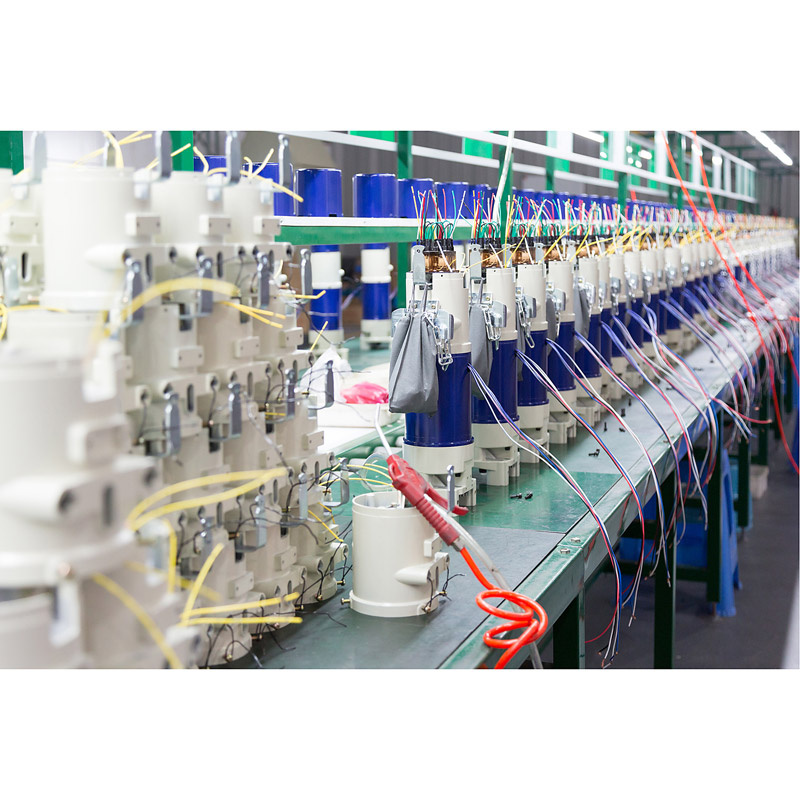

Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.
