| Prod Model: |
transformer |
| Rated Capacity: |
10kVA~1250kVA |
| 10kVA~1250kVA: |
50Hz/60Hz |
| Coupling: |
Yna0 Dyn11 |
| Insulation Class: |
B/F/H |
| Power Frequency Withstand Voltage: |
3000V60s |
| Application: |
Audio |
| Phase: |
Three |
| Cooling Method: |
Dry-type Transformer |
| Brand: |
Kewang |
Product Description

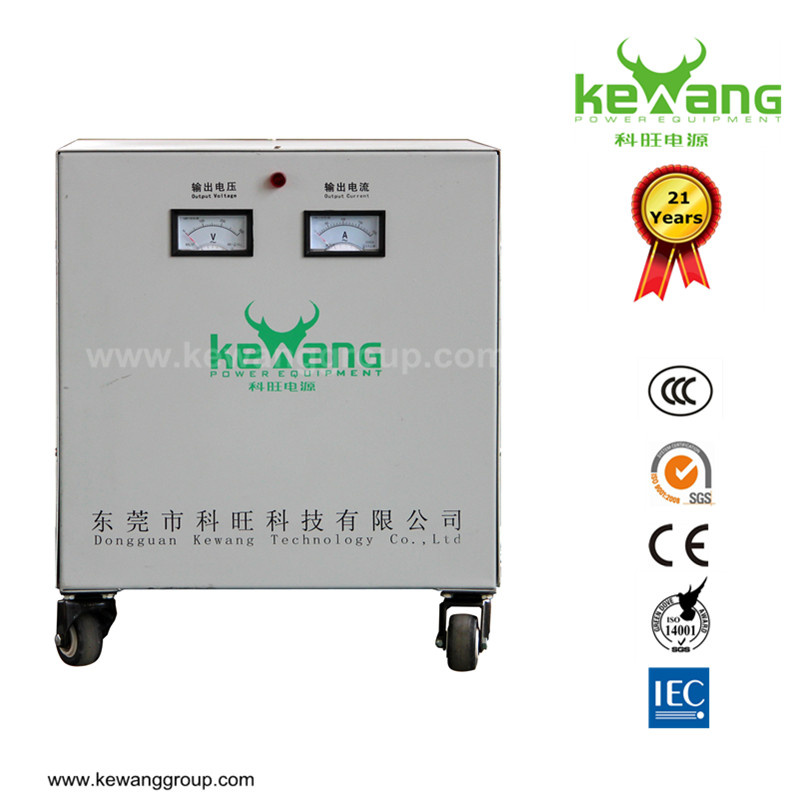

300kVA Current Transformer Power Supply Electronic Transformer
Product Introduction
Adopted high quality materials and advanced techniques, by air
cooled method, via vacuum pressure impregnating and strict
quality-inspection, SE air-cooled LV transformers possess
following features: high efficiency, low loss, low noise, high
reliability and strong load capacity;
SE air-cooled LV transformers are classified into: auto
transformer, isolation transformer, single phase transformer
and three-phase transformer;
Input voltage: three-phase 440V,420V,400V,380V,etc.
Output voltage: three-phase 440V,380V,220V,200V,190V,
120V,100V,etc.
Single phase and special products can be made as per
requirements
Application:
Applied to the machineries with operating voltage less than 1000V:Precise instruments, test equipment, electric equipment,
production lines, railways, R&D science technology institutions.
| Specifications |
| SE Air-cooled Three-phase Auto Transformer Specification |
| Model | Capacity(kVA) | Dimension(W×D×H)mm |
Weight (kg)
|
| SE-10 | 10 | 500×400×500 | 75 |
| SE-15 | 15 | 500×400×500 | 85 |
| SE-20 | 20 | 600×500×520 | 110 |
| SE-30 | 30 | 600×500×520 | 120 |
| SE-40 | 40 | 600×500×520 | 130 |
| SE-50 | 50 | 600×500×520 | 160 |
| SE-60 | 60 | 600×500×520 | 170 |
| SE-80 | 80 | 720×560×800 | 230 |
| SE-100 | 100 | 720×560×800 | 240 |
| SE-150 | 150 | 720×560×800 | 280 |
| SE-200 | 200 | 880×680×980 | 420 |
| SE-250 | 250 | 880×680×980 | 460 |
| SE-300 | 300 | 880×680×980 | 500 |
| SE-350 | 350 | 1180×880×1280 | 580 |
| SE-400 | 400 | 1180×880×1280 | 620 |
| SE-500 | 500 | 1180×880×1280 | 700 |
| SE-600 | 600 | 1280×950×1500 | 880 |
| SE-800 | 800 | 1280×950×1500 | 980 |
| SE-1000 | 1000 | 1400×1100×1700 | 1200 |
| SE-1250 | 1250 | 1400×1100×1700 | 1400 |
| SE Air-cooled Three-phase Isolation Transformer Specification |
| Model | Capacity(kVA) | Dimension(W×D×H)mm | Weight (kg) |
| SE-10 | 10 | 600×500×520 | 110 |
| SE-15 | 15 | 600×500×520 | 130 |
| SE-20 | 20 | 600×500×520 | 160 |
| SE-30 | 30 | 600×500×520 | 170 |
| SE-40 | 40 | 720×560×800 | 240 |
| SE-50 | 50 | 720×560×800 | 280 |
| SE-60 | 60 | 720×560×800 | 320 |
| SE-80 | 80 | 880×680×980 | 420 |
| SE-100 | 100 | 880×680×980 | 460 |
| SE-120 | 120 | 880×680×980 | 500 |
| SE-150 | 150 | 1180×880×1280 | 580 |
| SE-200 | 200 | 1180×880×1280 | 620 |
| SE-250 | 250 | 1180×880×1280 | 700 |
| SE-300 | 300 | 1280×950×1500 | 880 |
| SE-400 | 400 | 1280×950×1500 | 980 |
| SE-500 | 500 | 1400×1100×1700 | 1200 |
| SE-600 | 600 | 1400×1100×1700 | 1400 |
| SE-800 | 800 | 1600×1200×1900 | 1800 |
| SE-1000 | 1000 | 1600×1200×1900 | 2200 |
| SE-1250 | 1250 | 1800×1500×2200 | 2800 |
Above size and weight only for reference
Kewang Group is one of the largest professional provider and leader in the new energy and power distribution filed in China whose business covers power devices for Wind power, Solar power, and Natural Gas Energy. It's dedicated to R&D, manufacturing, sales & engineering of high/ low voltage transmission, distribution devices & related power devices. Moreover, it provides integrated solutions for enterprises power supply, data center, and distributed new energy. Kewang has been serving for royal customers over 40 countries, with recognized good quality & professional service.
As a leading power supply company, Kewang Group had taken the lead to be qualified with the ISO9001 quality system certification & ISO14001 environment system certification, and the CCC China mandatory certification. Our products are qualified with European CE certification and American UL certification. We had taken 11 projects nominated by the local government: 4 of which had won government's scientific prizes, and over 30 patents had been achieved. We keep consistent cooperation with South China University of Technology and Wuhan University. With the introduction of high class technical talents, we integrate various resources for R&D, quality& management improvement-- these cooperation enable us to set up strong advantages in techniques, talents & brand promotion.
Product line:
1. Customized Transformer & Reactor for application of UPS, PV Inverter, Electrical Car Station, etc.
2. RlS Series Contactless Intelligent type Voltage Stabilizer
3.1kw-5kw Smart Solar Energy Storage System with built in Inverter and Battery
4. DBW/SBW Dry type Voltage Regulator
5. SE series Air-cooled Transformer
6. UPS
7. Generator Set
