| Prod Model: |
YL-P300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM: |
Avaliable |
| Solution: |
1080P |
| Version: |
HDMI V1.3 |
| Usage: |
Computer |
| Type: |
Wireless |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
RoHS |
| Condition: |
New |
Product Description
HDbitT HDMI Powerline is the use of HDbitT transmission protocol, through the existing wires for audio and video signal transmission, without the need to set any cable, completely solve routing problems. Support IR remote control return, plug and play, easy to use.
Features:
1) It use powerline to transmit signal, and can be connected where there is outlet, eliminating the wiring of any cable.
2)Input voltage:AC100~240V.
3) It can extends 1080P@60Hz signal up to 300M under the condition of fluent electric power environment
4)It supports IR pass back.
5)Supports HDMI loop output from TX.
6)Fireproof raw material is used to ensure safety and reliability.
7)Easy setup, plug and play.

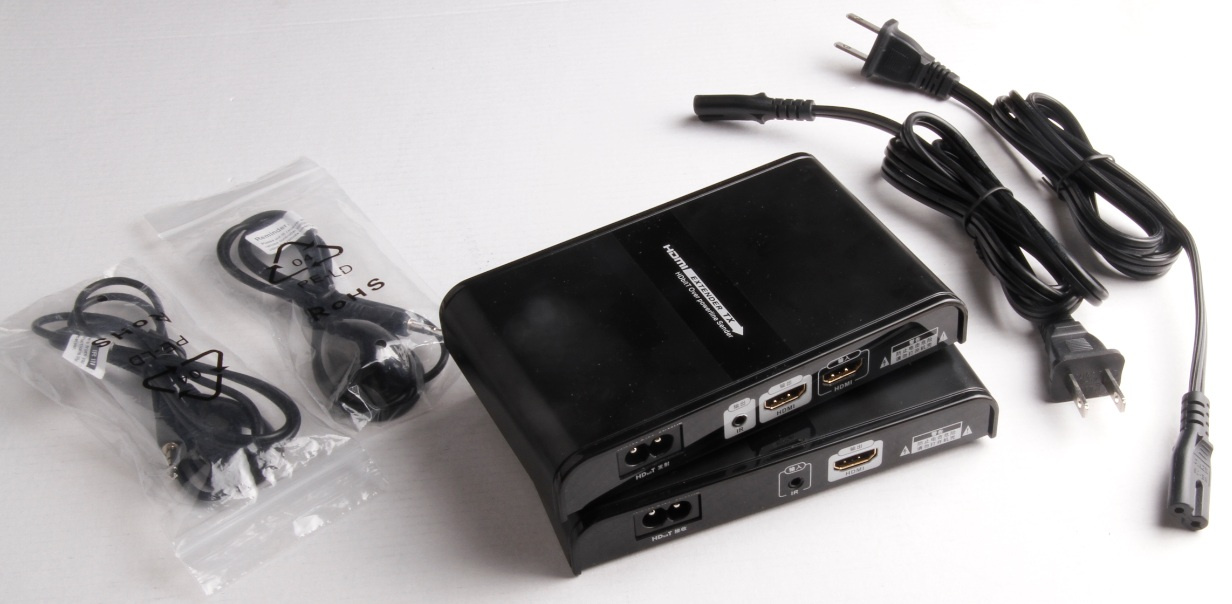

Package contents:
1.HDMI extender TX sender*1pcs
2.HDMI extender RX receiver*1pcs
3.AC 100-240V power line*2pcs
4.IR blaster extension cable*1pcs
5.IR receiver extension cable*1pcs
6.User manual*1pcs
Installation Requirement:
1. HDMI source device (DVD, PS3, Set top box, PC etc)
2. HDMI display device like SDTV, HDTV, and projector with HDMI port.
3. AC 100~240V Power input

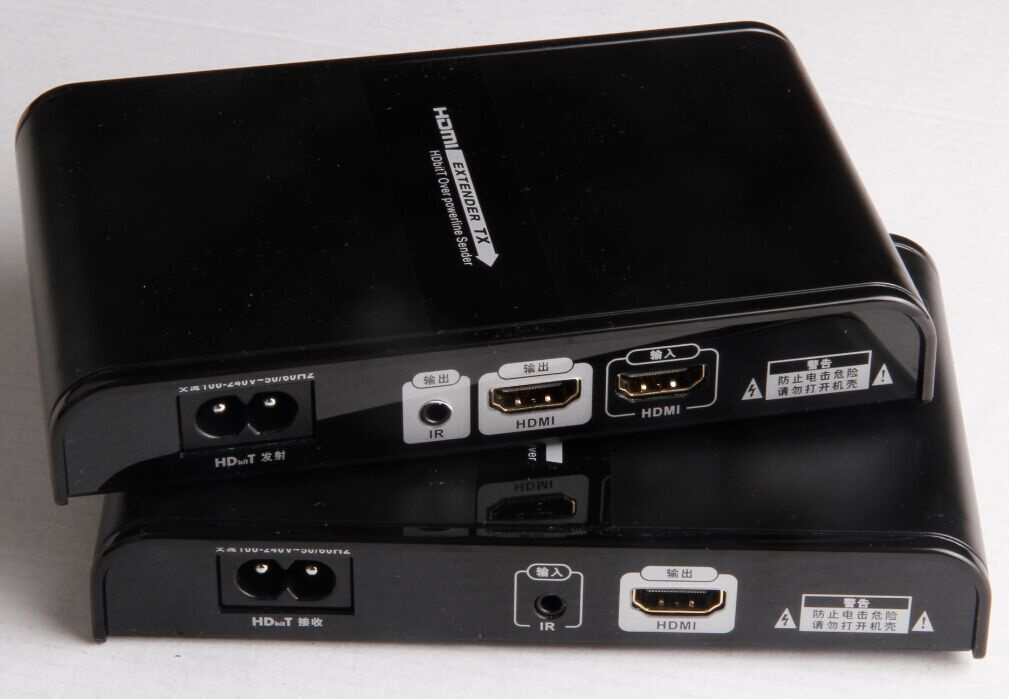

Panel description:
HDMI Extender TX sender
| Data transmission led | Led blinks slowly when it is connecting
Led blinks fast when it is successfully connected and transmitting data. |
| Connection led | Led blinks to indicate a working circuit connection |
| Reset | Press reset button to restart the device |
| Power input | Connect with AC100~240V power line |
| IR blaster extension cable interface | Connect with IR blaster extension cable. Put the IR sender head close to IR window of the source device and keep them at the same horizontal line. |
| HDMI output | Connect with HDMI display device |
| HDMI input | Connect with HDMI source device |
HDMI Extender RX Receiver
| Data transmission led | Led blinks slowly when it is building connection.
Led blinks fast when it is successfully connected and transmitting data. |
| Connection led | Led blinks to indicate a working circuit connection |
| Reset | Press reset button to restart the device |
| Power input | Connect with AC100~240V power line |
| IR receiver extension cable interface | Connect with IR receiver extension cable.Aim the remote control to IR receiver head and keep the distance within the required range of the IR receiver. |
| HDMI output | Connect with HDMI display device |
Specification:
| Items | Specification |
| HDMI signal | Full compatible with HDCP |
| Transport protocol | HDbitT
|
| Support resolution | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Transmit distance | It extends 1080P@60Hz signal up to 300M if if under the same meter.
Note: The transmission distance may vary in different electric power environment. |
| IR remote control | Support 20~60kHz IR remote device |
| Working temperature | 0ºC~60ºC |
| Power supply | AC 100~240V |
| Power consumption | TX:7.5W RX:7W |
| Enclosure material | fireproof engineering plastics |
| Product dimension | 150(W)x92.7(D) x 25(H) mm |
| Weight | TX:330g RX:316g |
| Color | Black |

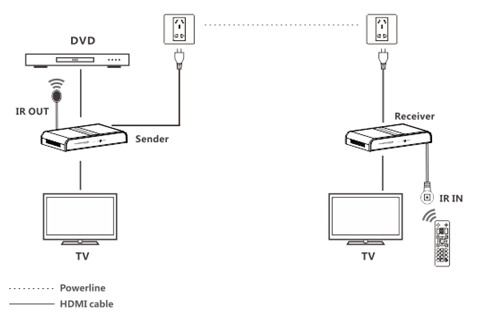

Connection1.One-to-One Connection
