300W 12V Constant Voltage Waterproof LED Transformer with Ce, Bis

Name: 300W 12V Constant Voltage Waterproof LED Transformer with Ce, Bis
Brand: all-electronics-online.com
SKU: 772464355
Availability: InStock
Rating: 4.6 (118 reviews)

Price:	US $ 24.3-27/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E300C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	300W Electronic Transformer with CE Certification
Output:	300W
Input Voltage:	170-250VAC
Output Voltage:	12V/24V
Efficiency:	>90%
IP Rating:	IP 67
Certificates/Standards:	CE
Weight(Kg):	1.6kg
Packing Information:	10 PCS/ Carton, G.W 17 Kg
Dimensions(LWH):	3078536mm
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	Bis
Power Supply Voltage:	170-250VAC
Brand:	Neonpro

Product Description

300W 12V Constant Voltage Waterproof LED Transformer with CE, BIS certification

1. Feature of Waterproof LED Transformer with CE, BIS:
-Slim body, special design for application with narrow space.
-Seamless aluminum housing, fully sealed and waterproof, IP67.
-High efficiency up to 90%, more electricity saving than regular power supply.

2. Application of Waterproof LED Transformer with CE, BIS:
Used for LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc…
LED Signage
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting

3. Specification of Waterproof LED Transformer with CE, BIS:

Model no.	LPS-12E300C
Input voltage	170-250 VAC 50/60 Hz
Max. power	300 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	>90%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	25A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 ºC
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm)
Dimensions(LWH)3078536mm	3078536mm
Weight(kg)	1.6KG
Packing information	10 Pcs/ Carton, G.W 917 KG

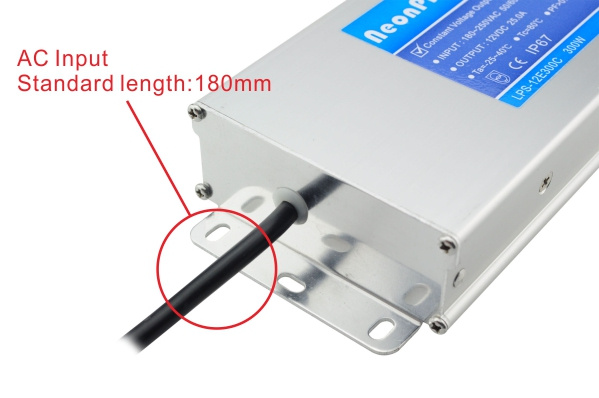

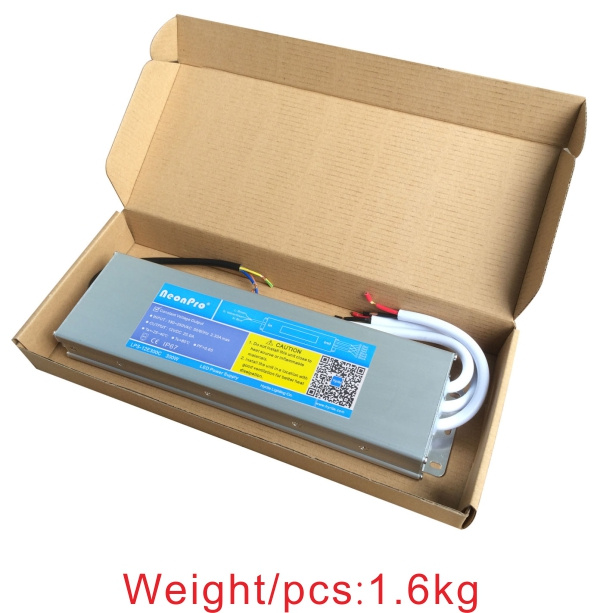

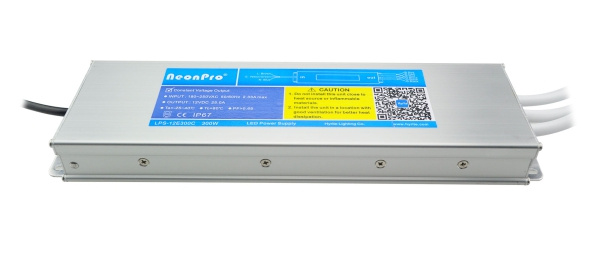

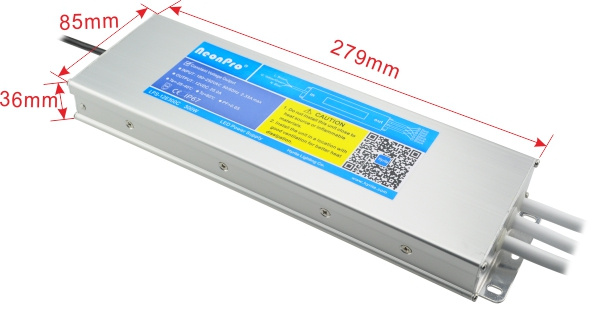

Pictures of Waterproof LED Transformer with CE, BIS:

Project pictures of Waterproof LED Transformer with CE, BIS:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
