300W 12V Slim Constant Voltage Waterproof LED Power Supply

Name: 300W 12V Slim Constant Voltage Waterproof LED Power Supply
Brand: all-electronics-online.com
SKU: 772544695
Availability: InStock
Rating: 4.3 (140 reviews)

Price:	US $ 15.3-16.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E300C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	300W Constant Voltage Power LED Light Source
Input Voltage:	180-250 VAC 50/60 Hz
Output Current:	25A Max
Output Voltage:	12VDC ± 5%
IP Rating:	IP23
Installation:	Outdoor Rainproof
Weight(Kg):	1
Packing Information:	20 PCS/ Carton, G.W 21.5kg
Cooling:	Built-in Electric Fan
Dimensions(LWH):	14017766 mm
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

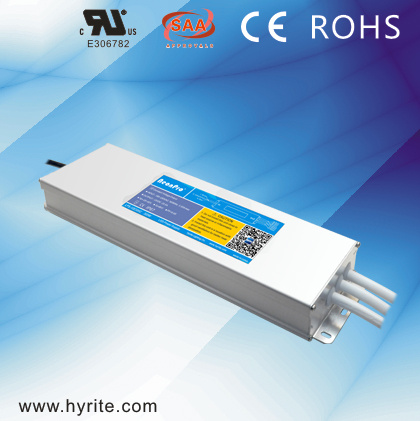

300W 12V Slim Constant Voltage Waterproof LED Power Supply

1. Feature of 300W Constant Voltage Waterproof Power Supply:
1. Aluminum housing ,good for thermal removal ,longer using life .
2. Good cooling system for 30W-200W RLDV series product , can work without the fan ,with longer using life .
3. Large power product (Power more than 200W ) are used the Ball bearing fans for the cooling system (that fan can work more than 3 years ) , longer life .
4. Rainproof .
5.Efficiency rate : >80%

2. Application of 300W Constant Voltage Waterproof Power Supply:

LED Signage
LED Architectural Lighting
LED Industrial Lighting

LED Sports Lighting
LED Cobra Head Lighting

3. Specification of 300W Constant Voltage Waterproof Power Supply:

Model no.	LPS-5E300C;LPS-12E300C;LPS-24E300C
Model series	LPS-C
Input voltage	170-250 VAC 50/60 Hz
Power	300 W max
Output type	Constant voltage
Dimming	Not dimmable
Power Factor	Low PF~0.6
Efficiency	90%
Output voltage	5V; 12V; 24V DC ± 5%
Output current	60A; 25A; 12.5 A max
Overload protection	105%-120% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40ºC
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE

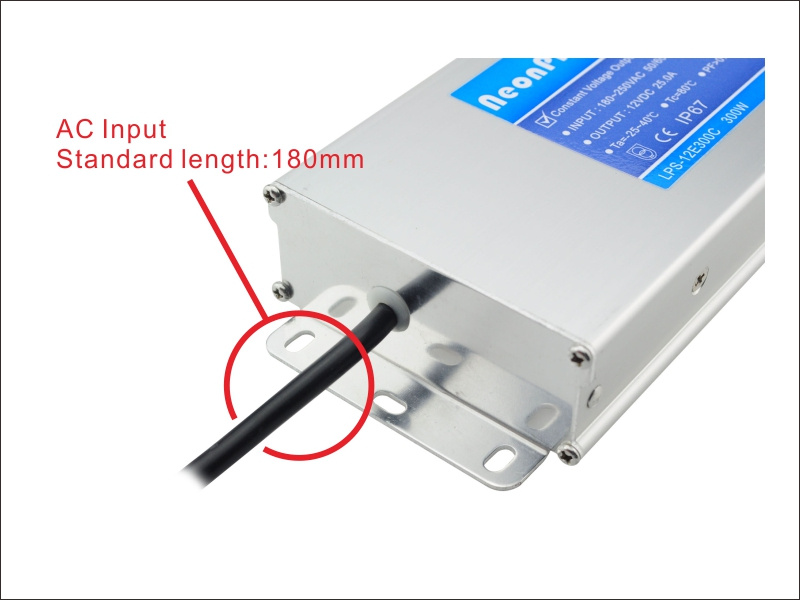

Connection input/output	Input:0.75mm²x3 (18cm) / Output:1mm²x2*3 (18cm)

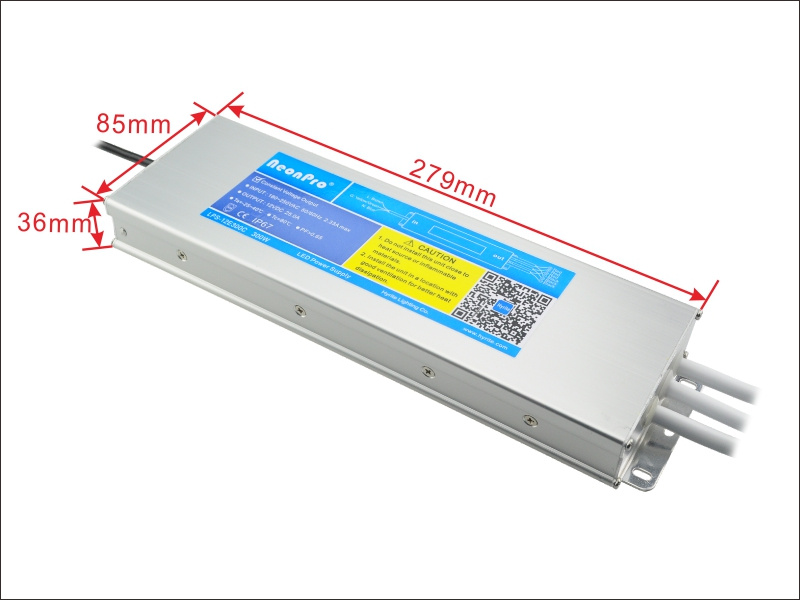

Dimensions(LWH)	3078535 mm
Weight(kg)	1.7000
Packing information	10 Pcs/ Carton, G.W 17KG

4. More Pictures of Constant Voltage Waterproof Power Supply:

5. FAQ :

1.Shipment:
Ocean or air transportation, international express
2.Normal lead time:
1 day for in stock and 10-15 days for out of stock product
3.Price term:
FOB, C&F, EXW
30% before production, 70% before shipment.
4.Supply ability:
50000 units/month
5.MOQ:
10 units(but sample can be 1)
6. Discounts :
We offer discount for big quantity
7.OEM and ODM service.

6. Contact :
Sales Department: Wing Xu
Hyrite Lighting Co.
Tel:+86(757)81200188 (Ext.333); Fax:+86(757)81200369

7. Production of Constant Voltage Waterproof Power Supply:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
