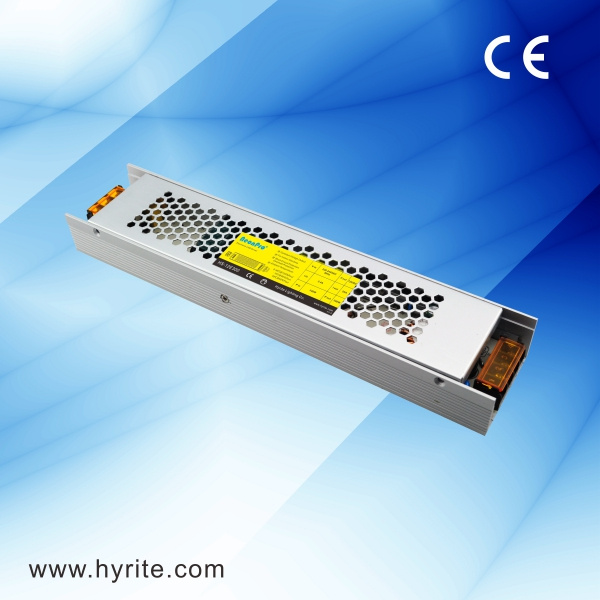

300W 12V Slim Indoor Switching LED Power Supply

Name: 300W 12V Slim Indoor Switching LED Power Supply
Brand: all-electronics-online.com
SKU: 747977195
Availability: InStock
Rating: 4.8 (47 reviews)

Price:	US $ 13.66/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HS-12E300
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220V
Input Current:	25A
Output Voltage:	12V
Description:	300W Electronic Transformer with Ce Certification
Efficiency:	>88%
IP Rating:	IP 20
Packing Information:	50 PCS/ Carton, G.W 14.5 Kg
Dimensions(LWH):	2856030mm
Material:	Aluminum Case
Dimming:	No
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC220-240V
Brand:	Neonpro

Product Description

300W 12V Slim Indoor High Efficiency SwitchingLED Power Supply

Features of Slim Indoor Power Supply:
1. Slim body, special design for application with narrow space, such as slim LED light box/ display cabinet lighting;
2. Aluminum case, Cooling by free air convection, efficient heat dissipation.
3. High transfer efficiency.
4. Constant voltage output
5. For indoor use only

Application of Slim Indoor Power Supply:
Used for LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc…

Pictures of Slim Indoor Power Supply:

Our main products include:
-IP67 Waterproof constant voltage LED power supply with CE SASO SAA
-IP45 Rainproof constant voltage LED power supply with CE UL
-IP20 Indoor constant voltage LED power supply with CE
-Constant Current led driver for lighting with CE SAA
-Dimmbale LED Driver with CE SAA
-LED Modules with CE UL

Note of Slim Indoor Power Supply:
Trade Terms: EXW, FOB, CIF and CNF term are available
Lead time: 1-15 working days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 ctn

Shipping of Slim Indoor Power Supply:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Data sheet of Slim Indoor Power Supply:

Model no.	HS-5/12/24 E300
Model series	HS
Input voltage	220-240VAC 50Hz/60Hz
Power	300W max
Output type	Constant voltage
Dimming	Not dimmable
Power Factor	Low PF~0.6
Efficiency	75%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	5VDC/12VDC/24VDC ± 5%
Output current	60A/25A/12Amax
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60ºC,100%Pout@0~45ºC, 60%@60ºC, 80%@-10ºC
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	2856030 mm
Weight(kg)	0.7000

Project pictures of Slim Indoor Power Supply:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
