300W 24V Rainproof Constant Voltage PWM LED Module Driver

Name: 300W 24V Rainproof Constant Voltage PWM LED Module Driver
Brand: all-electronics-online.com
SKU: 748219725
Availability: InStock
Rating: 4.8 (20 reviews)

Price:	US $ 13.46-13.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LHDV-24E300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	180-250V
Input Current:	12.5A
Output Voltage:	24V
Output Power:	300W
Efficiency:	>85%
Material:	Aluminum
IP Rate:	IP23
Operating Temperature:	-25ºC~+55ºC
Relative Humidity:	5%~95%
Size:	185.5112.556.5mm
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	Bis
In-Out:	AC to DC
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

300W 24V Rainproof Constant Voltage PWM LED Module Driver for Signage

Features for LED Module Driver

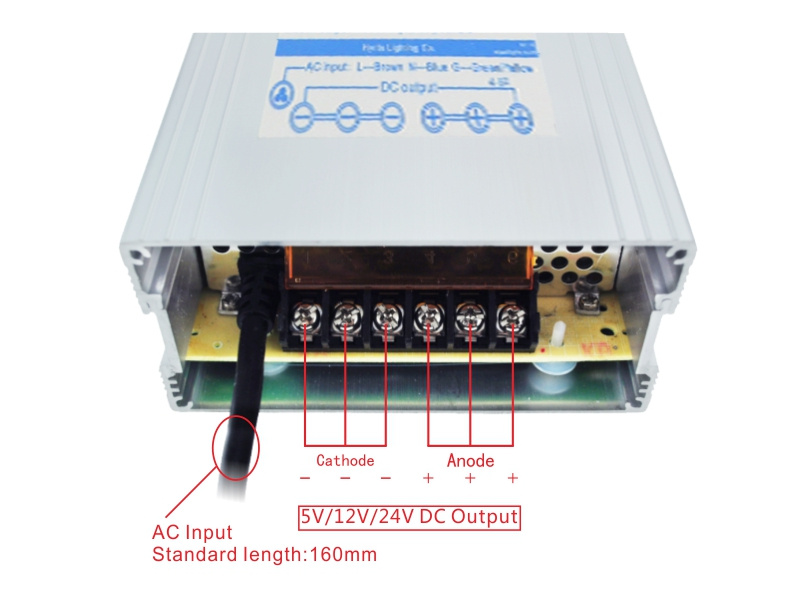

- Safety design with separated line input power cord and low voltage output terminals, preventing electrical shock.
- Special heat dissipation design with aluminium housing and hot start ventilating fan.
- Cost effective model for outdoor applications.
- Output voltage adjustable.
- Constant voltage output.
- Rainproof.

Application for LED Module Driver
- Designed for outdoor signage, decoration or lighting applications.
- Used for LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc…

Technical Specification for LED Module Driver

Model no.	LHDV-24E300
Model series	LHDV

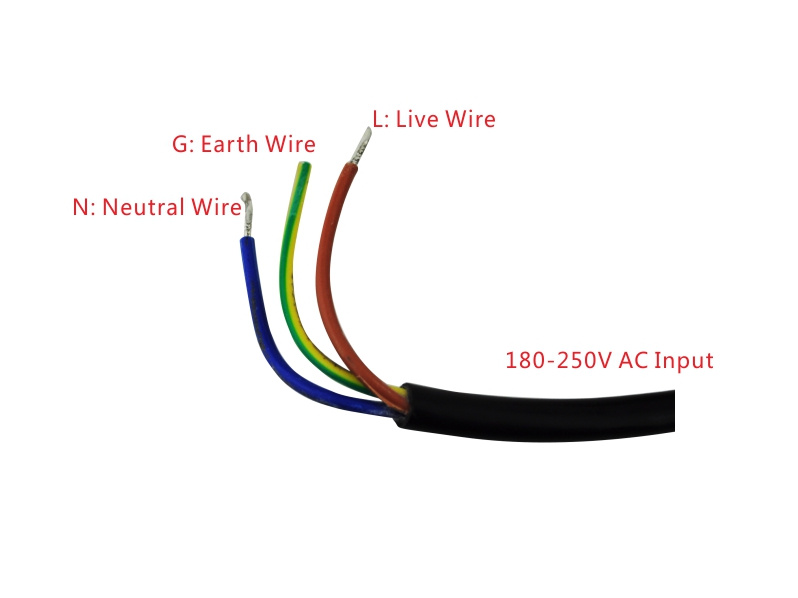

Input voltage	180-250 VAC 50/60 Hz
Power	300 W max
Output type	Constant voltage
Efficiency	85%
Output voltage	12VDC ± 5%
Output current	12.5A max
Operating temperature	-25~40ºC
Installation	Outdoor rainproof
IP rating	IP 24
Cooling	Built-in electric fan

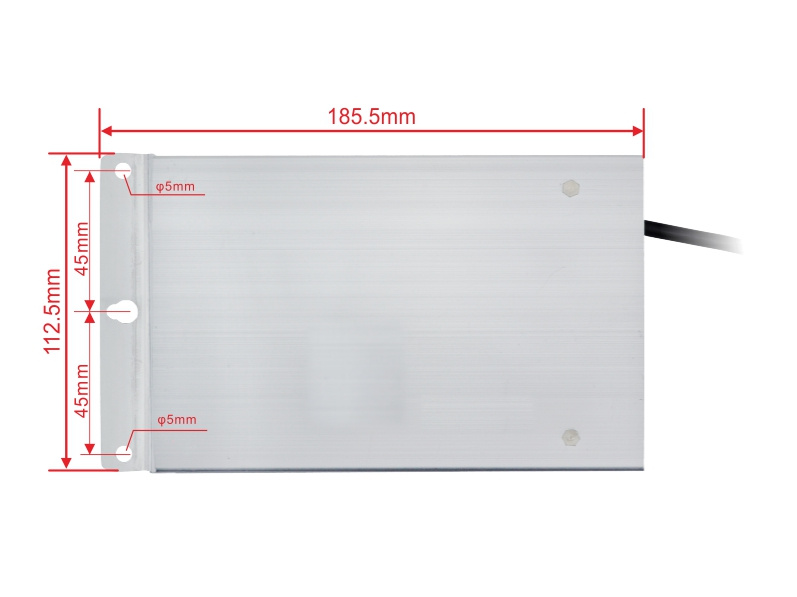

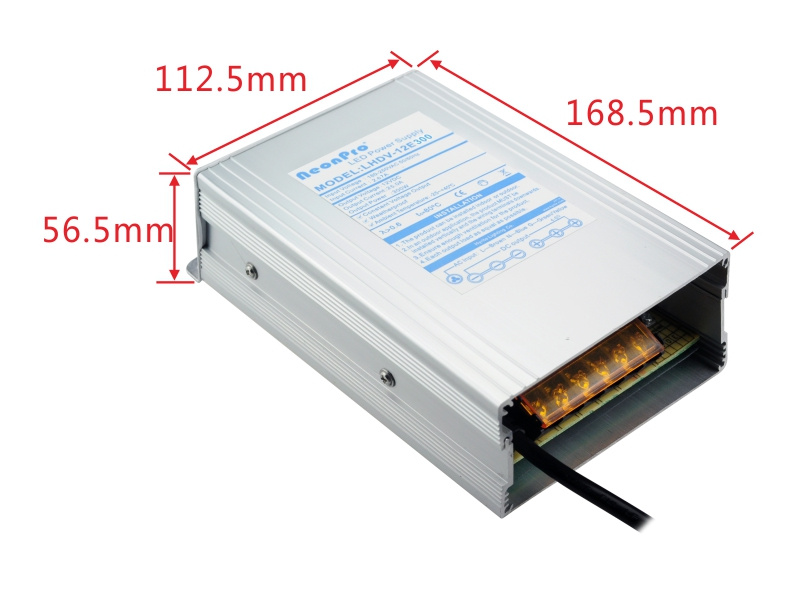

Dimensions(LWH)	185.5112.556.5 mm

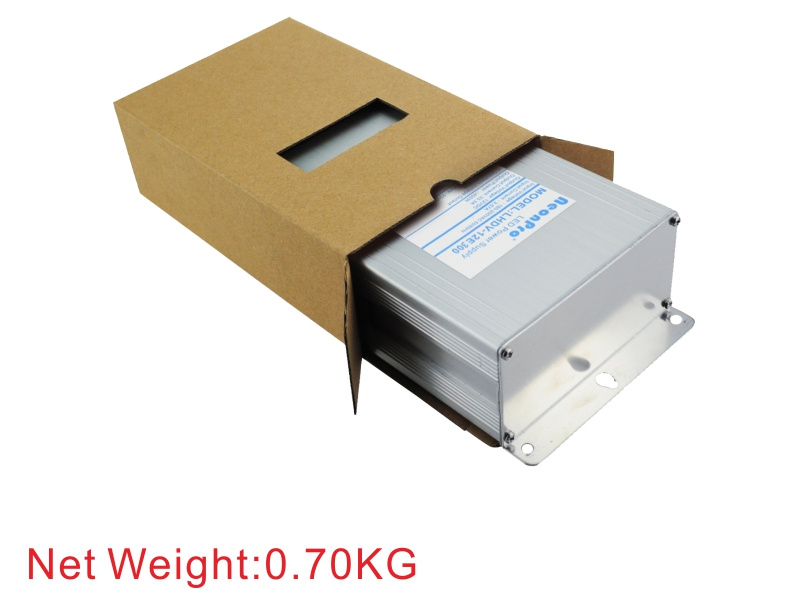

Weight(kg)	0.7500

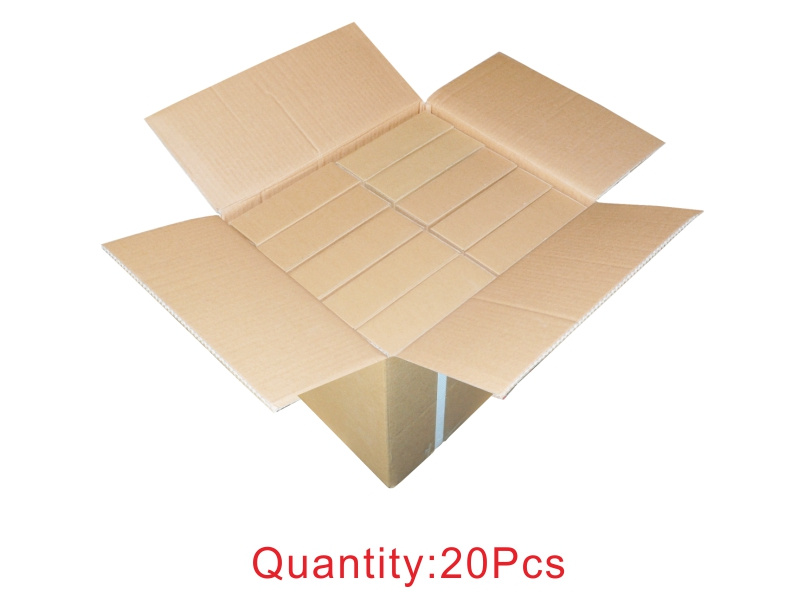

Packing information	20 Pcs/ Carton, G.W 15 KG

Pictures for LED Module Driver

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
