| Prod Model: |
3HE-MJ200W/300W/400W |
| Machine Model: |
300W |
| Max Laser Power: |
300W |
| Laser Wavelength: |
1064nm |
| Spot Size: |
0.2-3.0mm |
| Welding Depth: |
<(=)3mm |
| Machine Power: |
10kw |
| Control System: |
Microcontrollers |
| Power Supply: |
380V(+)10% |
| Host System Size: |
560*800*400mm |
| Working Table Loading: |
150kg |
Product Description
Technical parameters| Model | 3HE-MJ200W | 3HE-MJ300W | 3HE-400W |
| Max laser power | 200W | 300W | 400W |
| Laser type | YAG | YAG | YAG |
| Laser wavelength | 1064nm | 1064nm | 1064nm |
| Spot size | 0.2-3.0mm | 0.2-3.0mm | 0.2-3.0mm |
| Pulse width | 0.1ms-25ms | 0.1-25ms | 0.1-25ms |
| Pulse frequency | ≤100hz | ≤100hz | ≤100hz |
| Machine power | 6KW | 10KW | 12KW |
| Position | CCD and red light | CCD and red light | CCD and red light |
| Welding depth | ≤2mm | ≤3mm | ≤4mm |
| Host system size | 560×800×400mm | 560×800×400mm | 560×800×400mm |
| Power supply | 220v±10%/380±10% |
| Working table loading | 150KG |
Ps:For 200W power can melt 0.2-0.3mm solder wires.
For 300W power can melt 0.4-0.5mm solder wires .
For 400W power can melt 0.6-0.7mm solder wires .
YAG Laser Welding Machine Configuration
| Item | Parts name | Description | Quantity | Manufacturer |
| 01 | YAG Crystal | ¢7*145mm for 200W | 1 pice | GBS |
| 02 | Ceramic Pumping Cavity | ¢ACBB-200
long life & high pumping efficiency | 1 set | united kingdom imprts Morgan |
| 03 | Xenon Laser Lamp | ¢8*125*270mm | 1 set | Germany |
| 04 | Expanding Lens | 1-3 times | 1 set | Germany |
| 05 | ALL anti,half anti dielectric film | ¢20mm | 1 set | Germany |
| 06 | Foucsing Mirror | F=110 | 1 set | Germany |
| 08 | Observation System | microscope with light shutter, top brand made in China (industrial CCD camera and high-definition LED monitor optional) | 1 set | |
| 09 | Locating System | Red beam guide for precision locating | 1 set | |
| 10 | Lighting System | LED circle lamps, high brightness long life and low heat | 1 set | |
| 11 | Laser Switch | longlife foot switch (up to 3 million times mechanical pressing),cable length 1500mm | 1 pice | |
| 12 | Power Supply | | 1 set | Shenzhen Huahe |
| 13 | Machine Cabinet | designed by SANHE LASER, sweeping lines design, smaller footprint, metal anti-corrosive body | 1 set | SANHE LASER |
| 14 | Cooling System | Chinese top 3 brand, low-noise and green to environment, flow alarm and water temp alarm both available | 1 set | Shenzhen water chiller |
| 15 | Other Optional Devices | mini rotary device, mini lift table | 1 set |
Product advantages

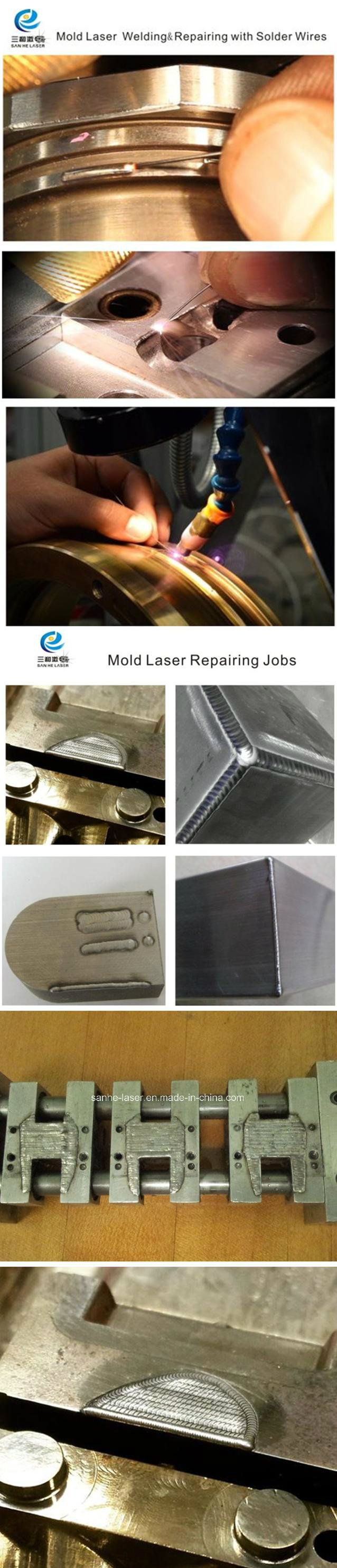

Mold laser welding machine widely used in molds,precision injection molding ,die casting and punching mold,stainless steel products and other hard material scracks,chipping,grinding and wear seal repair,welding,c ellphones,jewelry,electronics,sensors,precision machinery,communications,crafts and other industries.
Product features:

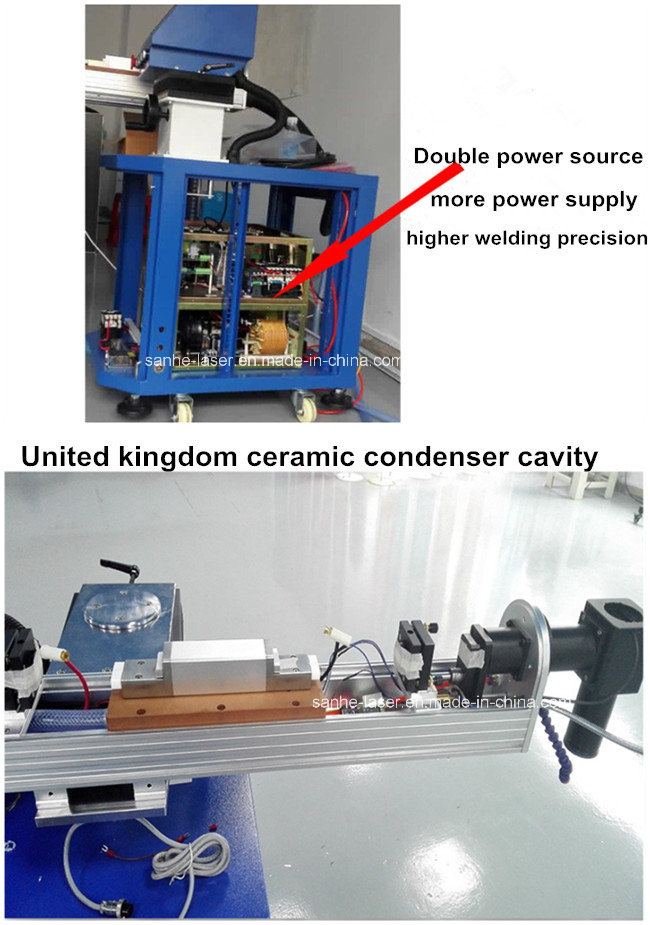

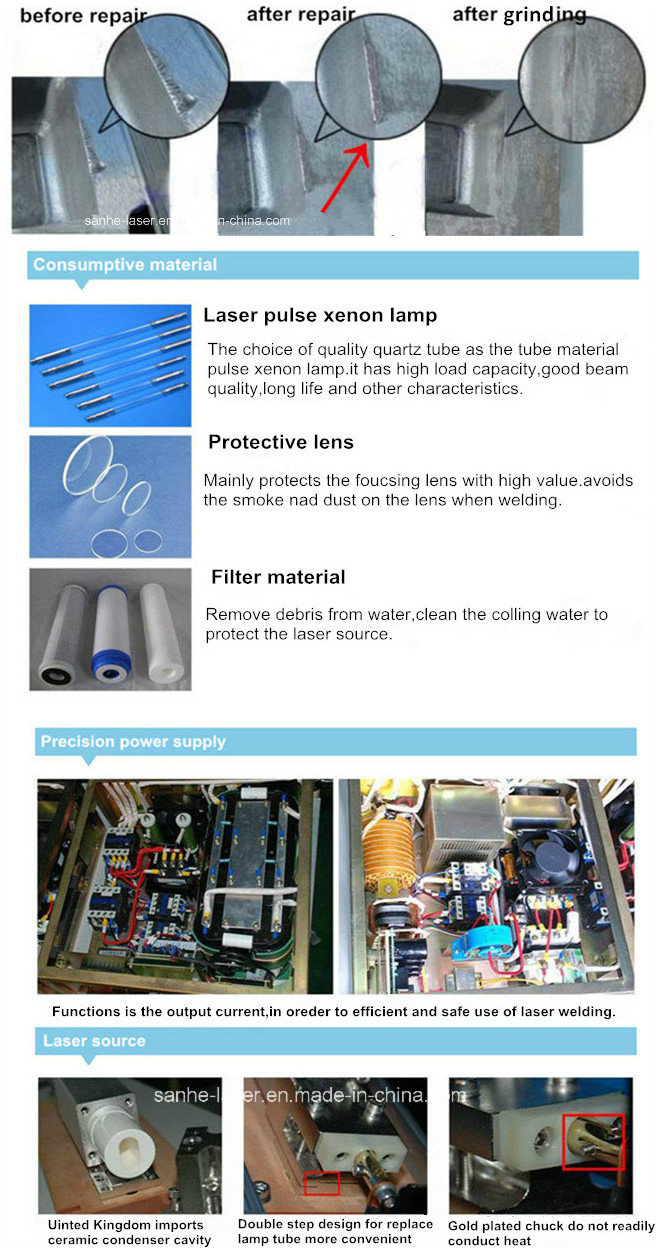

1.united kingdom imports ceramic condenser cavity ,corrosion resistance ,high temperature resistance and chamber life (8-10years),Xenon lamp life of more than 8million times.
2.Uses the world's most advanced automated blackout system,eliminating time on eye irritation
3.Use 10Xmicroscope,cross hair indicates,and uses high-speed liquid crystal light valve light automatically.
Pace with laser output of the shielding gas,ensure that solder joint appearance,oxidation of solder will not change color.
4.Use 7-inch LED screen,able to switch in Chinese and English freely,pace with the international market.
PAYMENT
1. The TT, Western Union, LC, Cash payment is available.
2. We have the machine in stock. Due to the voltage and mold difference, we need around 7-15 days to send out the machine. We will notice you if there is the special circumstance.
DELIVERY TIME
1. We can send out the machine within 7-15days after received the first payment.
2. The machine will be ship to you by sea shipping or plane. Please tell us your sea port or air port name so that we could quote you the freight.
3. You can also buy the insurance for the transportation.
4. We can also provide you door to door service, including custom clearance and tracking transportation in your country.
WARRANTY
1. All our machine have 1 year free warranty, during the warranty time, all the broken parts(not caused by man factor) can be changed free.
2. We can send our engineer go over sea for adjusting the machine and training your worker in your plant.
3. We have 24 hours hot line and email to help you to resolve the problem within 3 hours.
FAQ
Q1.What's your MOQ?
A:We don't have MOQ,No matter 1set order or 100sets order, we will wholeheartedly serve you.
Q2.Are you factory or trading company?
A:We are factory with 8 years experience has branch or offices in Thailand,Vietnam,Malaysia,Tianjin, Zhejiang, Jiangsu, Shanghai, Chongqing and Dalian. Also equipment with a comprehensive network of marketing channels for domestic and foreign customers with complete and quick sale service.
Q3.Where is your facotry located in? How can I visit there?
A: Our factory is located in 3/F, Building B, Lianyi Industrial Park, Wentang Middle Road, Dongcheng District, Dongguan, Guangdong, China.We can pick you up from Shenzhen airport to our factory,You are warmly welcome to visit us!!!
Q4.How does your factory do regarding quality control?
A:Quality is priority. We always attach great importance to quality controlling from the very beginning to the end.
1).All raw material we used are environmental-friendly;
2).Skillful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
and we have CE, ISO9001,SGS certification.
Q5.What is the delivery time?
A:We have standard models in stock,will delivery within 5-7 working days.
For un-standard models, we will delivery within 10-15 working days.
We aim high for the satisfication of the clients,
Contract us
Miss Carol-Sanhe Laser
Phone number:+86 18924354299

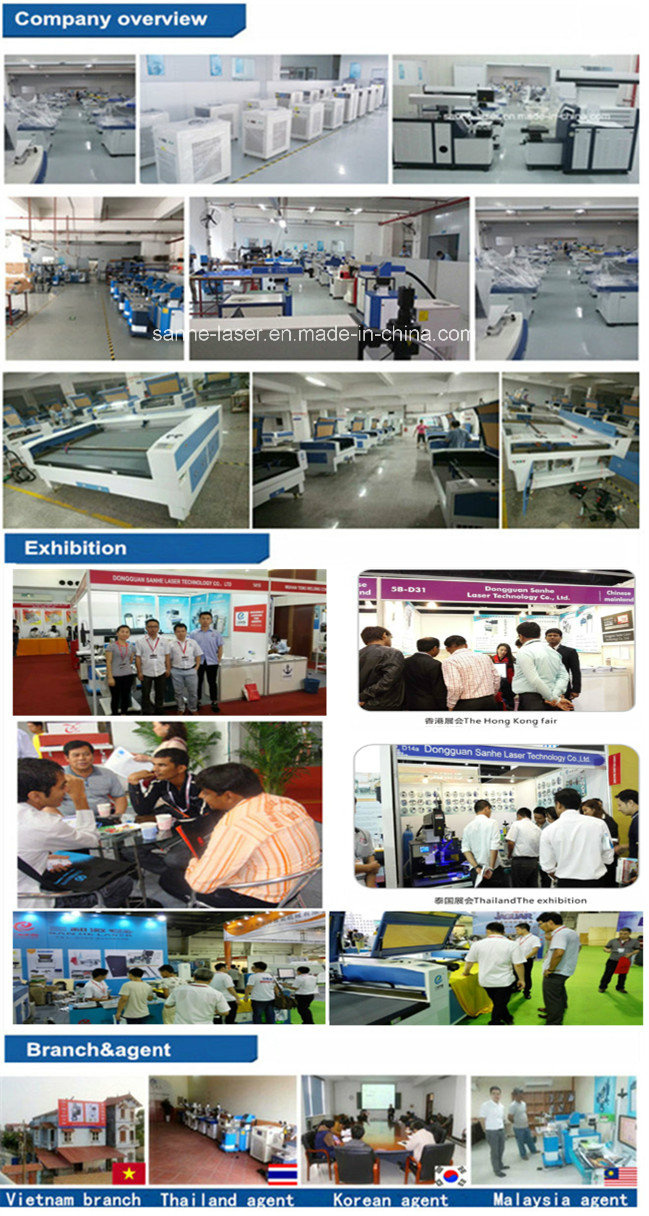

Dongguan Sanhe Laser Technology Limited Company is a professional manufacturer of laser equipment and the modernization of production and application of high-tech enterprises. In this eight years, Outstanding Sanhe team has been committed to the study and practice of light conversion, take lifting laser value as our business goals, take promoting Chinese national laser industry to the international for our glorious mission. We believe that if you want to succeed, you must professional, and professional derived from the practical, and pragmatic is responsible. We insist on professional skills and pragmatic approach to service each customer.
