| Prod Model: |
JGP-300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Jgp-300W |
| Rated Power: |
300W |
| Input Voltage: |
12VDC,24VDC |
| Output Voltage: |
110VAC,220VAC |
| Efficiency: |
50Hz, 60Hz |
| Wave Form: |
Pure Sine Wave |
| The Fuse: |
Built in |
| Protection: |
Low Voltage Alarm&Shut Down |
| USB Outlet: |
5V 500mA |
| Soft Start: |
Yes |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Power Source: |
Electric Power |
| Output Power: |
201 - 300W |
| Brand: |
Jinggu |
Product Description

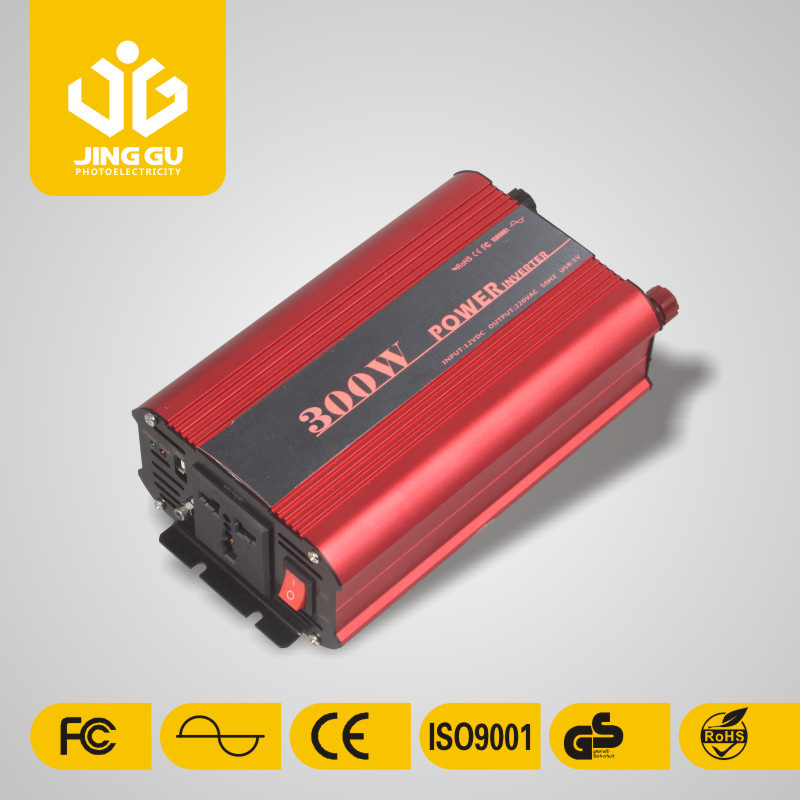

Feature of 300W pure sine wave inverter:
1. The safety of shock
2. The original constant power technology
3. Battery over-discharge alarm protection
4. Before and after class isolation technology
5. CPU core SPWM pulse width control technology
6. Doesn't affect the working life of electrical equipment
7. The installation of the MOS transistor anti-reverse technology
8. The original level of before and after the double soft-start technology
9. Components with high-quality original, ensure products with high quality.
10. With small, light weight, high efficiency, low distortion, no-polluting, low noise, aluminum alloy shell, surface blasting anodic oxidation treatment, high hardness, beautiful appearance
model | JGP-300W |
| Rated Power | 300W |
| Peak Power | 600W |
| Input Voltage | 12VDC/24VDC |
| AC Voltage | 110VAC/220VAC |
| USD Outlet | 5V 500mA |
| Frequency | 50/60HZ±0.5 |
| Wave Form | Pure Sine Wave |
| Soft Start | Yes |
| Protection Function | Bat.Low voltage Alarm&Shut Down,Over Temperature,Over Voltage,Short Circuit,Revers Polarity |
| The Fuse | Built-in |
| Inverter Size(L*W*H) | 247*168*91mm |
| Gross Weight | 1.1KGS |
| Package Size | 460*380*475mm |
| Quantity/Ctn | 16PCS |
| Package Weight | 18.2KGS |
| Package Type | Color Box |
| Warranty | 1 Year |
Why Choose Us ?
1. 15years gold credit supplier on Alibaba
2. 15years Inverter export experiences
3. 15 years Inverter manufacturer experiences
4. 15 years of high-level OEM Experience
5. 200 Employees
6. 10000 square meters Factory Size (Sq.meters)
7. 200,000pcs Monthly Capacity
8. Export Percentage: 90%
9. Hi-tech Advanced R&D Team
10. Certifications--Applied with CE, ROHS,FCC,TUV etc
11. Quality guarantee-warranty.
Wenzhou Jinggu Photoelectronics Technology Co., Ltd. is a focus on energy efficiency, wind, solar and other electrical power equipment product development, production, sales and service of the national high-tech science and technology enterprises. Major production: Sine wave inverter, car inverter, solar inverter, solar controller, LED photoelectric, AC / DC power supply, scenery power systems, photovoltaic equipment and accessories and other products. And provide project consulting, system design and technical support services. Products have been widely used in finance, communications, power, transportation, automobiles, elevators, residential, research institutes, manufacturing and military industries.
The company has perfect quality control, production management, engineering management, administered four management systems, in particular the quality system, we implement strict ISO9001 and CE certification standards, quality control throughout the entire production process, IQC, IPQC, FQC, in strict accordance with SOP tested products, and equipped with advanced testing equipment, after each batch of product must be shipped to the customer QC confirmed. The company's technology strength, advanced production equipment, has a group of experienced R & D engineers and marketing staff.
Since the early pioneering adhering to the "quality first development force, perfected the needs of customers" business philosophy, adhere to the high-tech science and technology, excellent quality-based, focusing on talent introduction and training, establish a sound management mechanism, to create high Performance management team, improve marketing and service network, the products sell well in more than 30 provinces and municipalities and OEM / ODM exported to Europe, America, Africa and Southeast Asia and other countries.
Future, Crystal Valley photoelectric all employees will uphold the "energy industry, high-efficiency power" development mission, and you look forward to join hands together to create a new, green, energy-efficient world.
