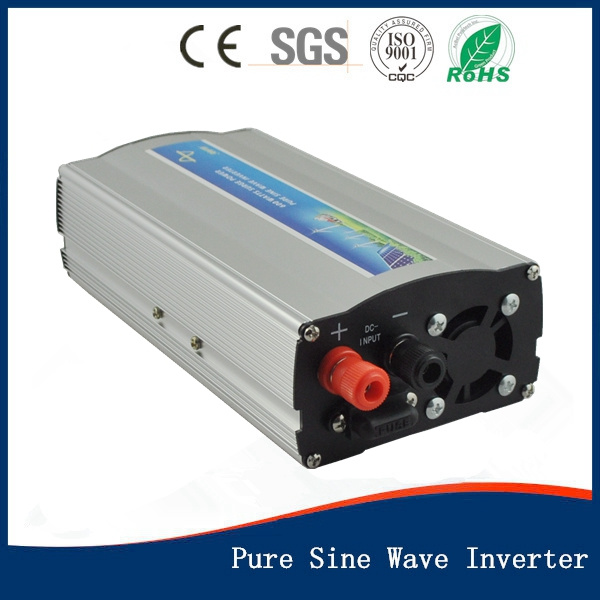

300W DC to AC Pure Sine Wave Power Inverter for Network Communication System
| Price: |
US $ 26-30/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
CZ-300S |
| Wave: |
Pure Sine Wave |
| Item: |
Car Power Inverter |
| Warranty: |
24 Months |
| OEM Service: |
Available |
| USB Port: |
5V |
| Color: |
Blue/Silver |
| Output Socket: |
Optional |
| Power Source: |
Solar Power |
Product Description
Product Description
-DC 12V 24V 48V AC 100V 110V 120V 220V 230V 240V 50HZ/60HZ-150w 300w 500w 800w 1000w 1500w 2000w 2500w 3000w 4000w 5000w 6000w Car Power Inverter
CE Approved High Quality Car Power Inverter
Pure Sine Wave ,2 Years Warranty .
-for Car Solar/Wind off Grid System.Products Features1. Input & output fully insolated
2. High Surge: High surge current capability starts difficult loads such as TVs, camps, motors and other inductive loads
3. Soft start: Smooth start-up of the appliances.
4. Pure sine wave output waveform: Clean power for sensitive loads.
5. AC output identical to, and in some cases better than the power supplied by your utility
6. Cooling fan in the inverter is thermally activated and comes on when the inverters becomes warm, and turns off automatically after the inverter has cooled.
7. Low total harmonic distortion: Below 3%
8. Two LED indicators on the front panel shows the working and failure state.Protection Function1. Low voltage alarm & Shutdown
2. Over-voltage protection
3. Overload protection
4. Over-temperature protection
5. Short circuit protection
6. Soft start
7. Auto. Reset after being in protected
8. Grounding protection
Technical Specifications | Model | 300w (CZ-300S) |
| Input | DC voltage | 12V | 24V | 48V | 110V |
| Voltage range | 10-16VDC | 20-33VDC | 40-63VDC | 90-130VDC |
| No load current draw | 0.7A | 0.4A | 0.2A | 0.1A |
| Efficiency | > 90% |
| Output | AC voltage | 100/110/120VAC or 220/230/240 VAC |
| Waveform | Pure sine wave |
| Frequency | 50Hz or 60Hz |
| AC regulation | 3% |
| Package | Machine size(cm) | 20*10.5*6 |
| Packing size(cm) | 27.5*16*11.3 |
| Net weight(kg) | 1.86 |
| Gross weight(kg) | 1.13 |
Custom-made available:
We also could provide customized DC input voltages: DC 36V, DC 60V, DC 72V, DC 84V, DC 96V, DC 110V, DC 120V, DC 220V. |
Packaging details1pcs/box,unit box size27.5*16*11.3cm,N.W0.86kg, G.W1.13kg10pcs/CTN, carton size61.5*29*34.5cm, N.W11.0kg, G.W13.0kg Delivery detailsAbout bulk order, it's up to your quantity, almost within 30days.
About sample, it's within 5 days.Payment and Shipping1. We accept T/T, Paypal, Western Union, Money Gram;
2. For sample, it's better via Paypal or Western Union; For quantity order, we can go for T/T;
3. For small order, we usually transport by express like FedEx, DHL, TNT, EMS.
For big order, we can ship by air or by sea.

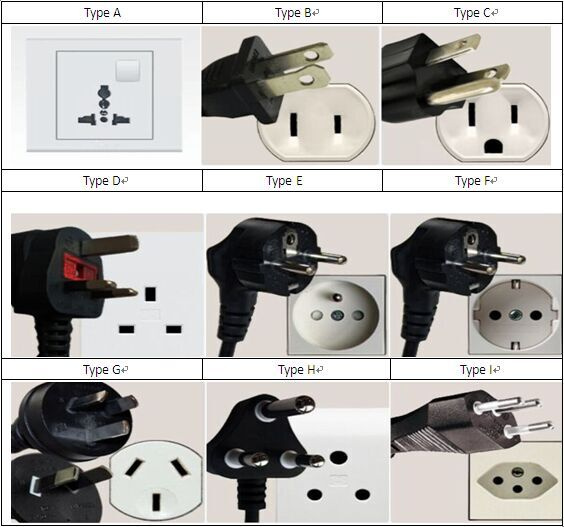

Provide Various of Sockets For Choose

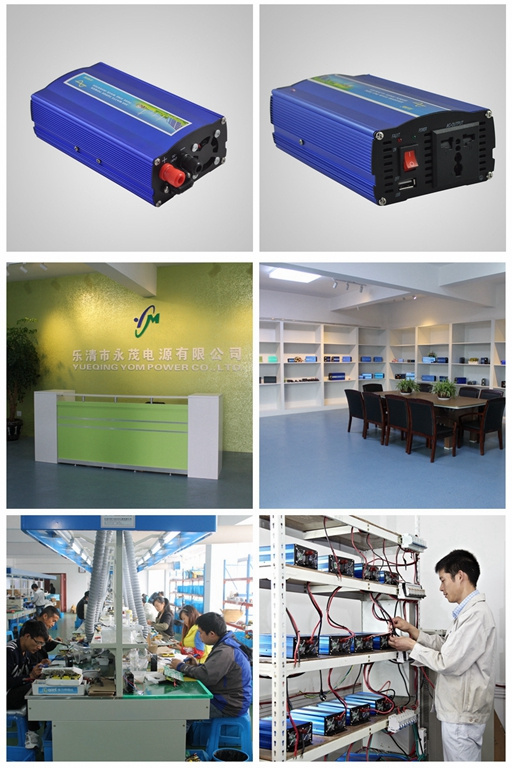

Yueqing Yongmao Power Co., Ltd. is an innovative scientific and technological enterprise, specialized in integrating the R&D, manufacturing, selling and serving for power inverter ( solar, wind and home system), we can provide the wide power from 150W to 6000W, the products of our company are widely used in various fields as new energy generation, electricity supply, telecommunication, aerospace, national defense, transportation and scientific research institutions etc.
With rich experience in technique researching, designing, manufacturing process, quality control, before-after sale service for power supply products, the company becomes an important base for power supply products at home and abroad, enjoying a high reputation and good popularity.
Good quality, best price and better technical support and service, make Yueqing Yongmao Power Co., Ltd. As your most valuable cooperator in China.
Our enterprise purpose: Trusted partner of customers, home for growth of employees, excellent member of industry.
Enterprise mission: High-quality suppliers in the electronics industry.
Enterprise core values: Forge ahead, solidarity and farsighted, l earning continuously.
Management philosophy: To inspire individual potential, Progress together with staff; Improve product quality and achieve win-win with customers; Unmoved in development goals, go on with the world.
Create value for customers, help growth of employees, hold on social responsibility. Yongmao advocate for employees to create a harmonious and pleasant working and living environment, fully stimulate the creativity and sense of being masters. Yongmao actively give financial aid to students, make donations to earthquake disaster area, and involved in all kinds of charitable activities and public utilities, such as poverty alleviation. We actively contribute to the community, truly live up to our belief "change oneself with its growth and to return society with achievement
