300W Waterproof Switching Power Supply for LED Module

Name: 300W Waterproof Switching Power Supply for LED Module
Brand: all-electronics-online.com
SKU: 742136945
Availability: InStock
Rating: 4.3 (127 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E300C
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	300W
Input Voltage:	180-250VAC
Output Voltage:	12V
Efficiency:	up to 90%
IP Rating:	IP67
Certificates/Standards:	Ce, Bis
Weight(Kg):	1.6 Kg
Packing Information:	10 PCS/ Carton, G.W 17 Kg
Power Factor:	0.65
Dimensions(LWH):	3078536mm
Usage:	Construction
Output Type:	Quad
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	Bis
Power Supply Voltage:	180-250VAC
Brand:	Neonpro

Product Description

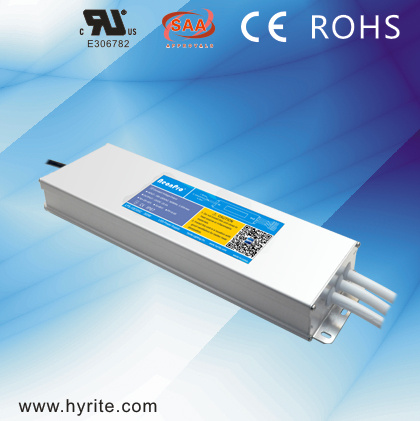

300W 12V IP 67 Waterproof Slim LED Switching Power Supply with Ce, Bis Certified
1.Features
*Fully sealed & waterproof, IP67
*Constant voltage output
*High efficiency 90%
*Short circuit and overload protection
*100% burn-in test
*2 years warrenty

2. Applications
*LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc...
*Slim body, specially for application with narrow space, such as cove light, light box, channel letter...

3. Specification

Input voltage	180-250 VAC 50/60 Hz
Max. power	300W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	up to 90%
AC inrush current(max.)	Cold start, 46A@230VAC
Output voltage	12VDC ± 5%
Output current	25A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25ºC~+40ºC
Installation	Outdoor waterproof
IP rating	IP67
Cooling	Free air convection
Certificates/standards	CE, BIS

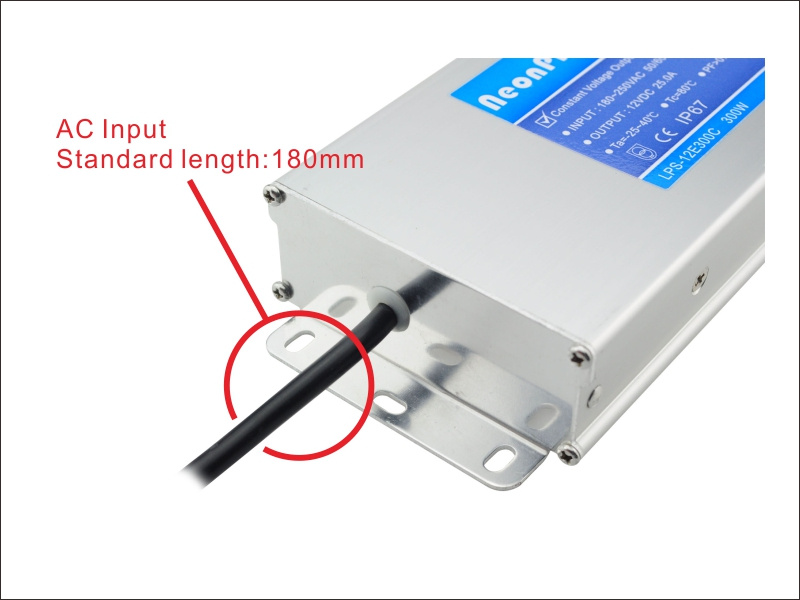

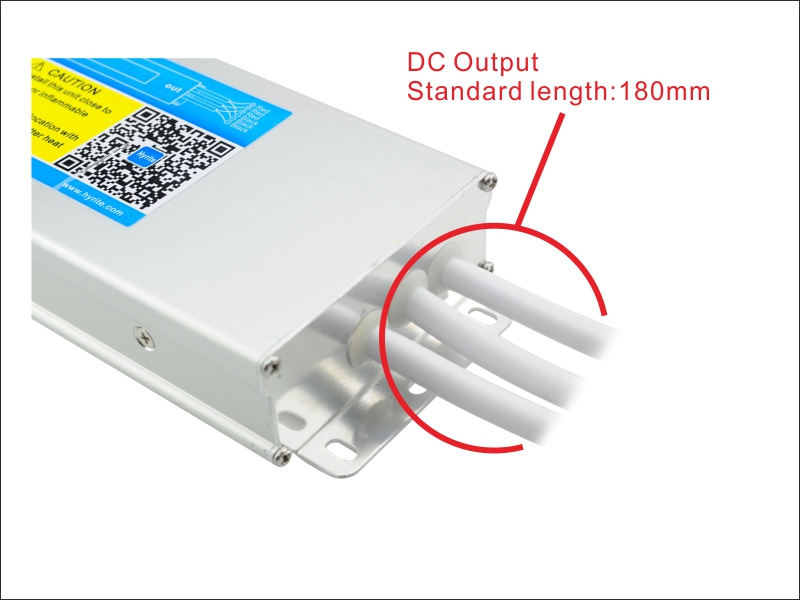

Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm)

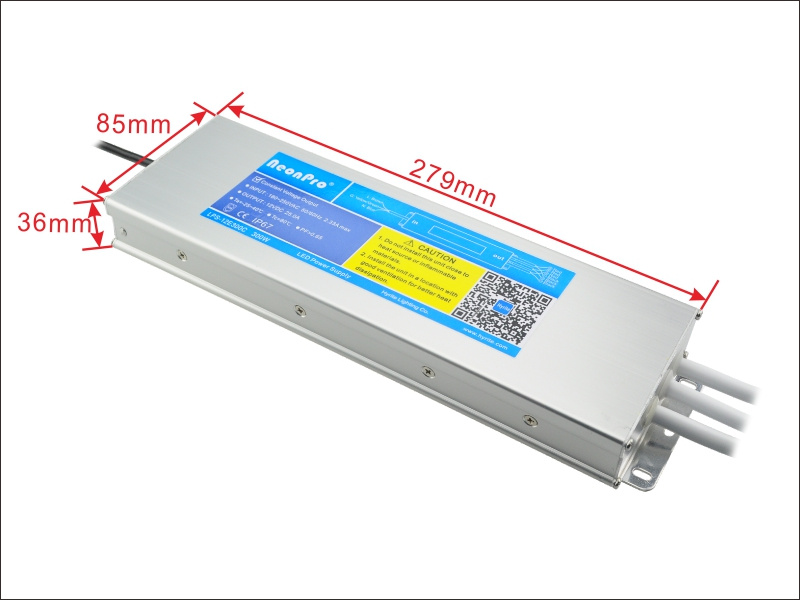

*Dimensions(LWH)*	3078536mm
Weight(kg)	1.6 KG
Packing information	10 PCS/Carton, G.W 17 KG
*Packing Dimensions(LWH)*	455x360x155mm

4. Detail pictures of LED power supply
