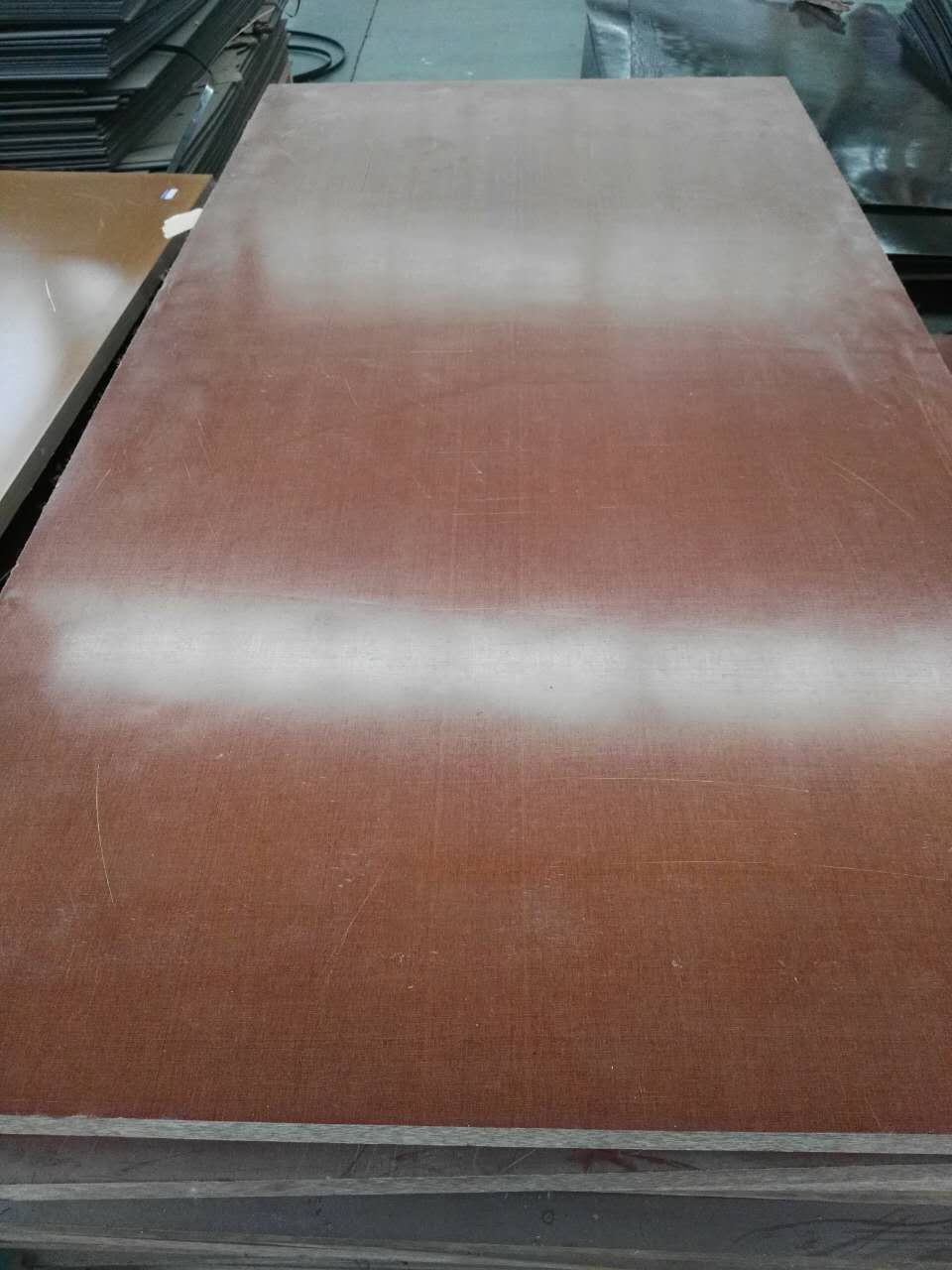

3025 Electric Insulation Phenolic Laminated Sheet

Prod Model:	MJ-3025
Size:	According to Customer Requirement
Density:	1.5g/cm3
Delievery Time:	Within 7-10 Working Days
Sample:	Free
Application:	Generator & Transformer
Type:	Insulation Sheet
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Thermal Rating:	B 130
Maximum Voltage:	>100KV
Brand:	Mj

Product Description

Phenolic Cotton Insulation Laminate Sheet:
Appearance:
Natural color Yellow, surface smoothly without bubble and impurities, no flow marks, Cutting edge without fault and separation

Feature:

Temperature Classification is B.
Excellent mechanical and electrical properties.
Less thickness tolerance

Application:
Can be used as liner insulation and coil insulation for the binding and insulating materials for the electric motor, appliance, machining the insulating structural parts with wear resistance.

Packaging Detail: Epoxy slot wedge package: Each package is not more than 100KG. Respectively, paper and plastic film cover plate, a paper packaging box, steel strapping / or according to customers' requirements.

Delivery Detail: 7-10 working days

FAQ:

(1) Can you give me a discount price?

It is depending on the volume. The larger the volume is, the more discount you can enjoy.

(2) How can I get a sample?

Normally small samples (sizes not larger than 300*300mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL,FEDEX,EMS,UPS courier account number to us. For bigger sizes, it depends.

(3) How can you deal with quality issues that customer feedback after receiving the goods?
1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.

Basic information
Product name	3025 Phenolic Cotton Cloth Laminated Sheet
Brand	MJ-3025
Material	Cotton cloth with phenolic resin
Grade	B
Technical Performance
Nominal thickness        mm	Tolerance           mm
1	±0.15
1.2	±0.18
1.5	±0.18
1.8	±0.23
2	±0.23
2.5	±0.33
3	±0.33
4	±0.38
4.5	±0.38
5	±0.48
5.5	±0.48
6	±0.58
6.5	±0.58
7	±0.68
8	±0.68
9	±0.80
10	±0.80
12	±1.00
14	±1.00
16	±1.30
20	±1.30
25	±1.50
30	±1.50
35	±2.00
40	±2.00
45	±2.80
50	±2.80
Water absorption	≤2.50%
Flexural strength perpendicular to the layer direction	≥80 Mpa
Impact strength parallel to the layer direction(Cantilever beam method)	≥8.8 kJ/m2
Bonding strength                            At room temperature                     Being humidified for 48h at 50ºC	≥8010 N                                                                       ≥7120 N
Breakdown voltage perpendicular to the layer (90ºC±2ºCoil)	2.0-4.0 MV/m
