3025 Insulation Materials Phenolic Laminate Sheet
| Price: |
US $ 4.5-7.2kilogram |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500kilogram |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
MJ-3025 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1220X980mm |
| Density: |
1.7g/cm3 |
| Formation Methods: |
High Temperature and High Pressure |
| Tensile Strength: |
300 MPa |
| Samples: |
Free Samples Available |
| Appliction: |
Electrical Insulation |
| Delivery Time: |
7-10 Working Days |
| Customizable: |
Yes |
| Application: |
Switch Baseplate |
| Type: |
Insulation Film |
| Material: |
Fiberglass |
| Thermal Rating: |
B 130 |
| Maximum Voltage: |
20KV~100KV |
| Chemistry: |
Epoxy |
| Brand: |
Mj |
Product Description

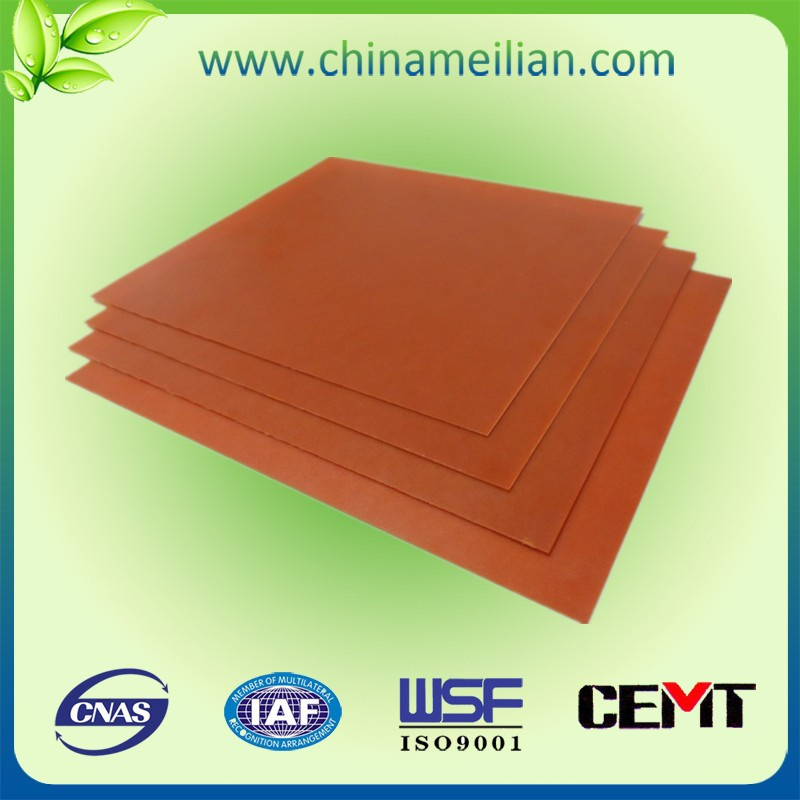

3025 Insulation Materials Phenolic Laminate SheetFeatures:
Good dielectrical and mechanical property
Good heat resistance
Room temperature the material is flexible
Less thickness tolerance
Application:
Suitable for high-voltage and medium-sized motor coil insulation. Excellent mechanical properties, high electrical breakdown strength, dielectric loss and other characteristics | Basic information |
| Product name | Phenolic resin-boned cotton fabric laminate |
| Brand | MJ-3025 |
| Material | Cotton facbric cloth and phenolic resin |
| Grade | Grade B |
| Technical Performance |
| Density | ≥1.25 g/cm3 |
| Compression strength (parallel to the axial wall layer) | ≥118 Mpa |
| Flexural stress | ≥137 Mpa |
| Tensile strength (perpendicular to the wall layer) radial | ≥69 Mpa |
| The heat resistance of 130 ± 2°C in transformer oil | ≥4 H |
| The thermal stability of 105 ± 2°C | ≥24 H |
Water absorption
sample thickness
(mm) | 1.5-3 ≤2.0% |
| 3.1-4.5 ≤1.5% |
| 4.6-6.0 ≤1.3% |
| 6.1-9.0 ≤1.2% |
| ≥9.0 ≤1.0% |
| Storage period | 6 Month(Below 5°C) |
Our Company Covers an Area of about 5000 Square Meters, Construction Area of About 2200 Square Meters
We Take Place In Domestic & International Exhibition Fair Like CWIEME in Berlin/Shanghai, CW CIEMME in Guangdong, Cross-Straits Electric Motor & Appliance Exposition in Taiwan and etc.
We Have Over 50 Sets of Production & Testing Equipments Which Insure Us The Annual Production Capacity 360 Tons of Magnetic Conductive Sheet, 240 Tons of Insulating Sheet, 80 Tons of Insulation Varnish. Production is Strictly Under Control.
We Have Over 10 Years in Manufacting Magnetic/None-Magnetic Insulation Laminte, Slot Wedge, Insulation Tube, Fiberglass Varnish Cloth, Thermal Expansion Sheet, Insulation Varnish, Mica Tape and Processed Machining Components.
We have passed ISO 9001-2000 and got our own patent technology, Xi'an city Science and Technology Bureau identified us as "High-Tech Enterprises"
Our Business Scope Is All Over The World, A. O. Smith Is One of Our VIP Customers.
3025 Insulation Materials Phenolic Laminate Sheet package: Each package is not more than 100KG. Respectively, paper and plastic film cover plate, a paper packaging box, steel strapping / or according to customers' requirements.
Delivery Detail: 7-10 working days.Our Service:
FAQ:
(1) Can you give me a discount price?
Answer: It is depending on the volume. The larger the volume is, the more discount you can enjoy.
(2) Why is your price a bit higher than other Chinese suppliers?
Answer: To meet the requirement of different customers and areas, our factory manufactures various kinds of quality for each item at a wide range of price. We can offer the products of different quality levels depending on customer's target price and quality requirement.
(3) How can I get a sample?
Answer: Normally small samples (sizes not larger than 300*300mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL, FEDEX, EMS, UPS courier account number to us. For bigger sizes, it depends.
(4) How can you guarantee the quality of mass production is same with the sample sent to me before?
Answer: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.
(5) How can you deal with quality issues that customer feedback after receiving the goods?
Answer:
1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
3) Finally, we will negotiate with our customers to make some compensation.

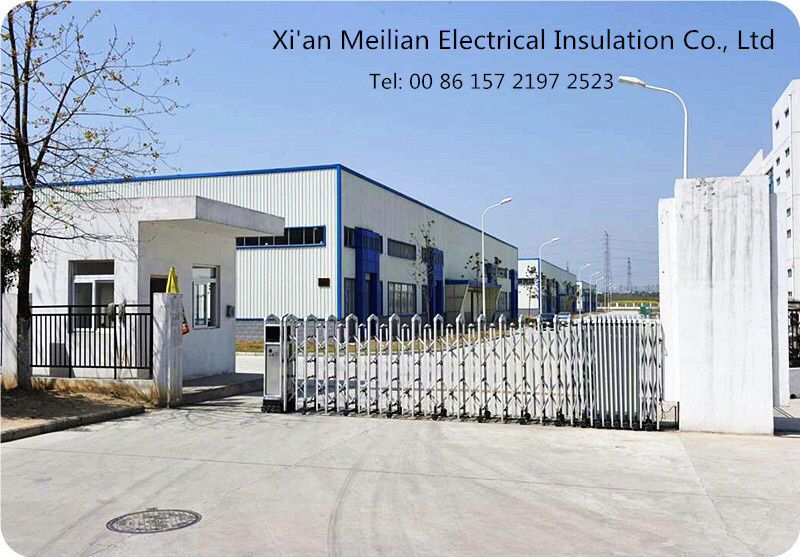

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.
We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

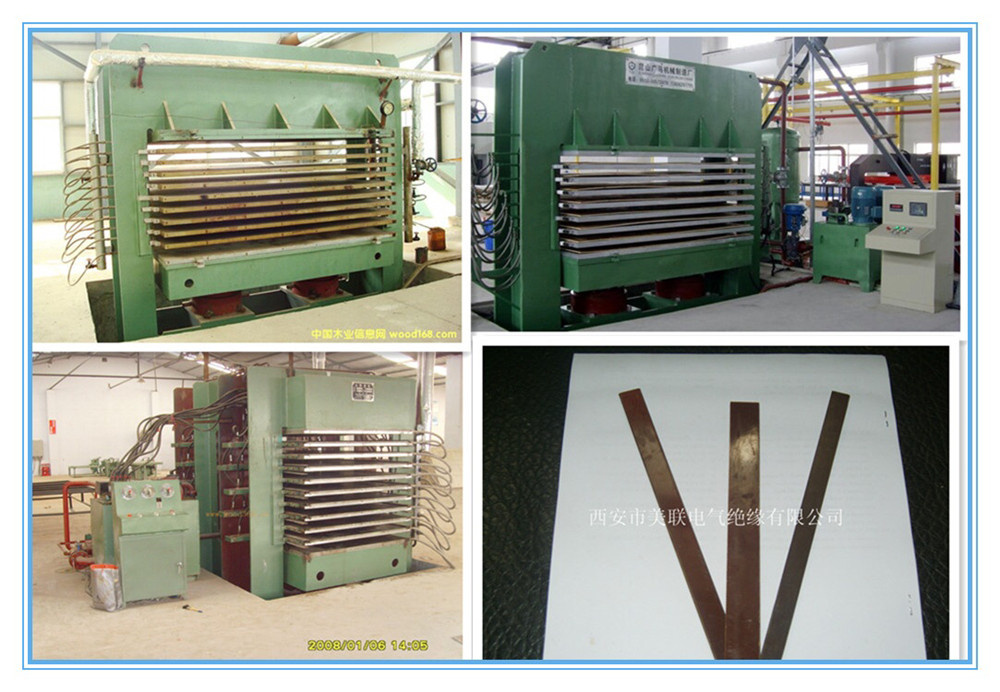

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.
We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".
The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
