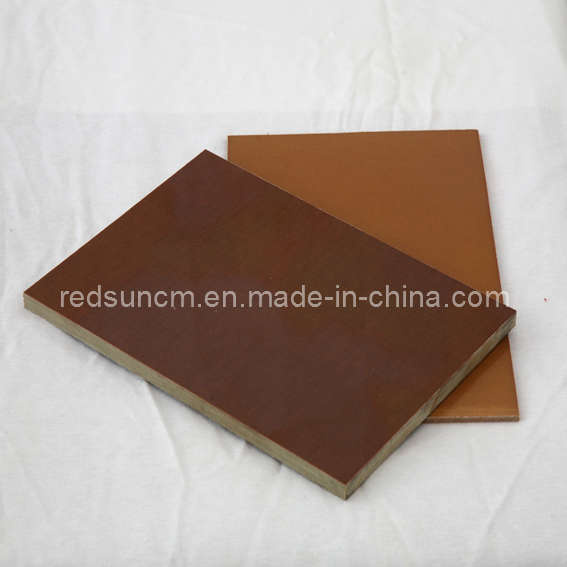

Name: 3025 Phenolic Cotton Cloth Laminate Sheet
Brand: all-electronics-online.com
SKU: 670392532
Availability: InStock
Rating: 4.3 (107 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Ton
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3025
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Electrical Base, Shell
Chemistry:	Organic Insulation
Thermal Rating:	E 120
Maximum Voltage:	<10KV
Type:	Insulation Sheet
Material:	Cotton Cloth & Phenolic Resin

Product Description

1. Define and purpose
3025 is formed through drying and heat pressing after the cotton fabric dips into PF resins. 3025R is formed as laminated board through heat pressing after the blanc dips into PF resins. 3025 has high mechanical performance and is used as insulation structural components for machinery, electric engine and electric equipment, as well as used in transformer oil. 3025R has very high mechanical strength, suitable to be used as the components of mechanical products such as the bush of rubber cloth gears, guide wheel.

2. Technical Data
2.1 Outside appearance
Laminated board surface should be flat and tidy. The bubbles, sand holes and inclusions are not allowed. A little of spots are allowed. The edge should be cut tidy. There is no delaminating problem and crackle on end surface.


Sr.	Item	Uint	Test method	Index
Sr.	Item	Uint	Test method	3025	3025R
1	Density	g/cm 3	GB/T5130 section 8.1	1.30- 1.40	-
2	Water absorption	mg	GB/T5130 section 8.2	Refer to table 2	Refer to table 3
3	Vertical layer direction bending strength Portrait	MPa	GB/T5130 section 5.1	> =100	> =140
4	Tensile strength	MPa	GB/T5130 section 5.7	> =(80)	> =98
5	Notch impact strength (Simple strut-beam method)Parallel layer direction	KJ/m 2	GB/T5130 section 5.5	> =8.8	> =6.8
6	Parallel layer direction insulation resistance After digging into water	Ω	GB/T5130 section 6.3	> =1.0 × 10	-
7	Parallel layer direction breakdown voltage At (90± 2) Ctransformer oil	kV	GB/T5130 section 6.1	> =10	-
8	Vertical layer direction breakdown voltage At (90± 2) Ctransformer oil	kV/mm	GB/T5130 section 6.1	Refer to table 4	-

Average thickness mm	Water absorption mg	Average thickness mm	Water absorption mg	Average thickness mm	Water absorption mg
0.8	< = 201	3	< = 249	12	< = 336
1	< = 206	4	< = 262	14	< = 354
1.2	< = 211	5	< = 275	16	< = 371
1.6	< = 220	6	< = 284	20	< = 406
2	< = 229	8	< = 301	25	< = 450
2.5	< = 239	10	< = 319	Single side processing to 22.5	< = 540


Average thickness mm	Water absorption mg	Average ickness mm	Water absorption mg	Average thickness mm	Water absorption mg
Average thickness mm	Water absorption mg	Average ickness mm	Water absorption mg	Average thickness mm	Water absorption mg
0.4	< = 186	2	< = 229	10	< = 319
0.5	< = 190	2.5	< = 239	12	< = 336
0.6	< = 194	3	< = 249	14	< = 354
0.8	< = 201	4	< = 262	16	< = 371
1	< = 206	5	< = 275	20	< = 406
1.2	< = 211	6	< = 284	25	< = 450
1.6	< = 220	8	< = 301	Single side processing to 22.5	< = 540


Average thickness mm	Electric strength kV/mm	Average thickness mm	Electric trength kV/mm	Average thickness mm	Electric strength kV/mm
0.8	> = 0.89	1.6	> = 0.72	2.6	> = 0.56
0.9	> = 0.84	1.8	> = 0.69	2.8	> = 0.53
1	> = 0.82	2	> = 0.65	3	> = 0.50
1.2	> = 0.80	2.2	> = 0.61
1.4	> = 0.76	2.4	> = 0.58
