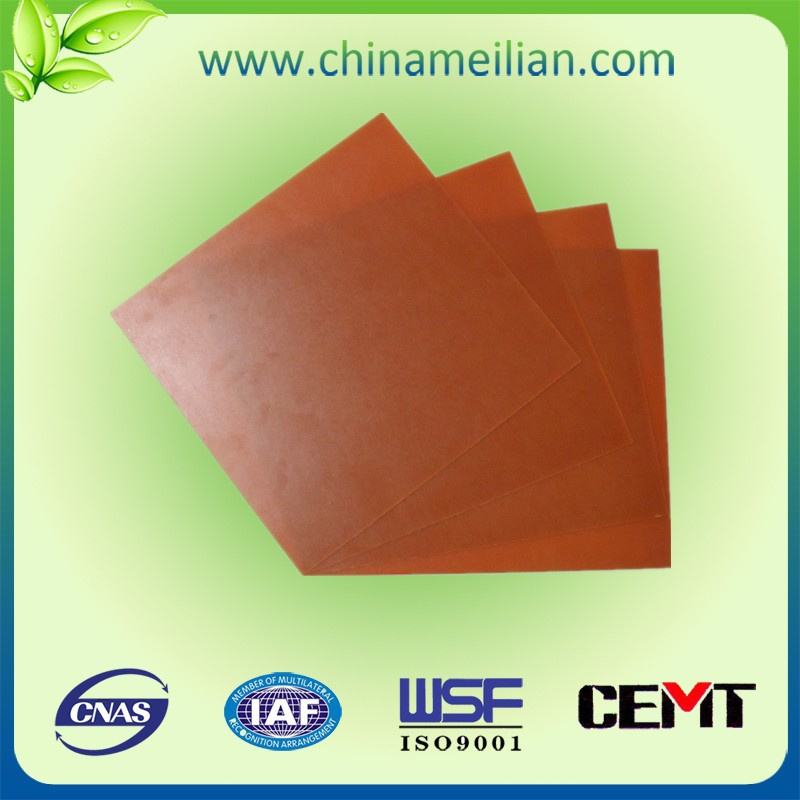

3025 Phenolic Cotton Cloth Laminated Insulation Pressboard
| Price: |
US $ 4.5-7.2kg |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500kg |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
MJ-3025 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Density: |
More Than 1.7g/cm3 |
| Size: |
480X980mm |
| Delivery: |
7-10 Working Days |
| Appliction: |
for Motor & Generator |
| Samples: |
Free Samples Are Welcome |
| Formation Methods: |
High Temperature and High Pressure |
| Tensile Strength: |
More Than120 MPa |
| Customizable: |
Yes |
| MOQ: |
1 Piece |
| Application: |
Generator |
| Type: |
Insulation Sheet |
| Chemistry: |
Hybrid Insulation |
| Thermal Rating: |
E 120 |
| Maximum Voltage: |
>100KV |
| Material: |
Phenolic Cotton Cloth |
| Brand: |
Mj |
Product Description
3025 Phenolic Cotton Cloth Laminated Insulation PressboardFeatures:
Excellent mechanical property
Heat resistance property
Excelletn magnetic permeability
Energy-saving & Environmental protection
Application:
Motor and generator groove strip/slot wedge
Reduce the motor loss, temperature rising, noise and etc
Improve the motor efficiency
Ideal energy-saving products| Basic information |
| Product name | 3025 Phenolic Cotton Cloth Laminated Sheet |
| Brand | MJ-3025 |
| Material | Cotton cloth with phenolic resin |
| Grade | E |
| Technical Performance |
| Nominal thickness mm | Tolerance mm |
| 1 | ±0.15 |
| 1.2 | ±0.18 |
| 1.5 | ±0.18 |
| 1.8 | ±0.23 |
| 2 | ±0.23 |
| 2.5 | ±0.33 |
| 3 | ±0.33 |
| 4 | ±0.38 |
| 4.5 | ±0.38 |
| 5 | ±0.48 |
| 5.5 | ±0.48 |
| 6 | ±0.58 |
| 6.5 | ±0.58 |
| 7 | ±0.68 |
| 8 | ±0.68 |
| 9 | ±0.80 |
| 10 | ±0.80 |
| 12 | ±1.00 |
| 14 | ±1.00 |
| 16 | ±1.30 |
| 20 | ±1.30 |
| 25 | ±1.50 |
| 30 | ±1.50 |
| 35 | ±2.00 |
| 40 | ±2.00 |
| 45 | ±2.80 |
| 50 | ±2.80 |
| Water absorption | ≤ 2.50% |
| Flexural strength perpendicular to the layer direction | ≥ 80 Mpa |
| Impact strength parallel to the layer direction ( Cantilever beam method ) | ≥ 8.8 kJ/m2 |
Bonding strength
At room temperature
Being humidified for 48h at 50 c | ≥8010N
≥7120 N |

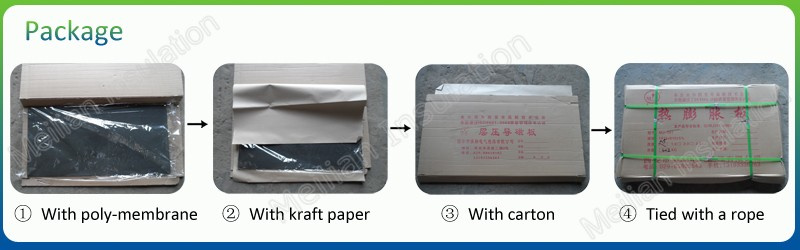

Packaging Detail:
3240 Epoxy Fiberglass Laminate Sheet package: Each package is not more than 100KG. Respectively, paper and plastic film cover plate, a paper packaging box, steel strapping / or according to customers' requirements.
Delivery Detail: 7-10 working days.
Our Service:
FAQ:
(1) Can you give me a discount price?
Answer: It is depending on the volume. The larger the volume is, the more discount you can enjoy.
(2) Why is your price a bit higher than other Chinese suppliers?
Answer: To meet the requirement of different customers and areas, our factory manufactures various kinds of quality for each item at a wide range of price. We can offer the products of different quality levels depending on customer's target price and quality requirement.
(3) How can I get a sample?
Answer: Normally small samples (sizes not larger than 300*300mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL, FEDEX, EMS, UPS courier account number to us. For bigger sizes, it depends.(4) How can you guarantee the quality of mass production is same with the sample sent to me before?
Answer: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.
(5) How can you deal with quality issues that customer feedback after receiving the goods?
Answer:
1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
3) Finally, we will negotiate with our customers to make some compensation.

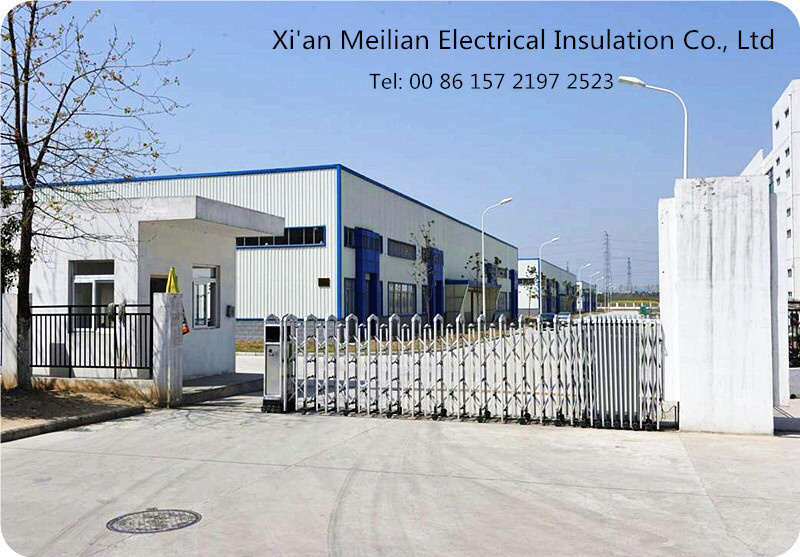

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.
We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

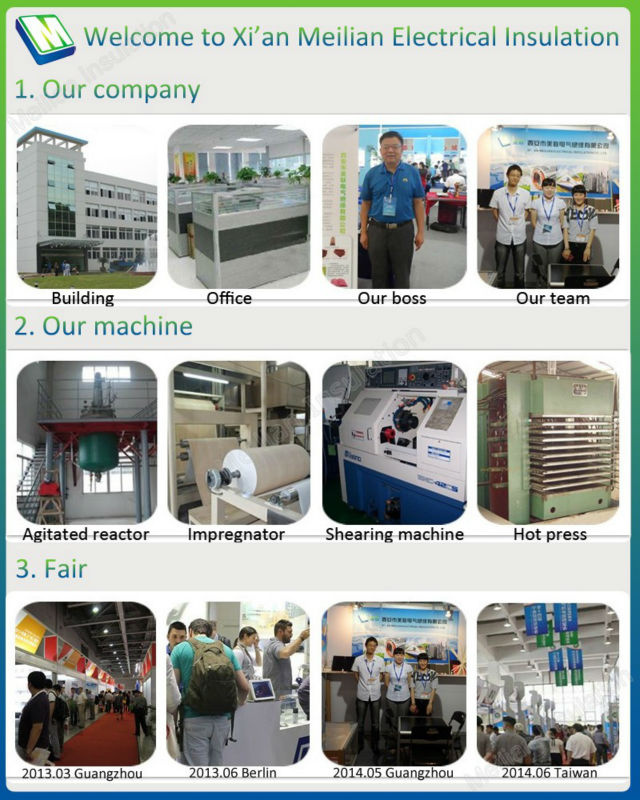

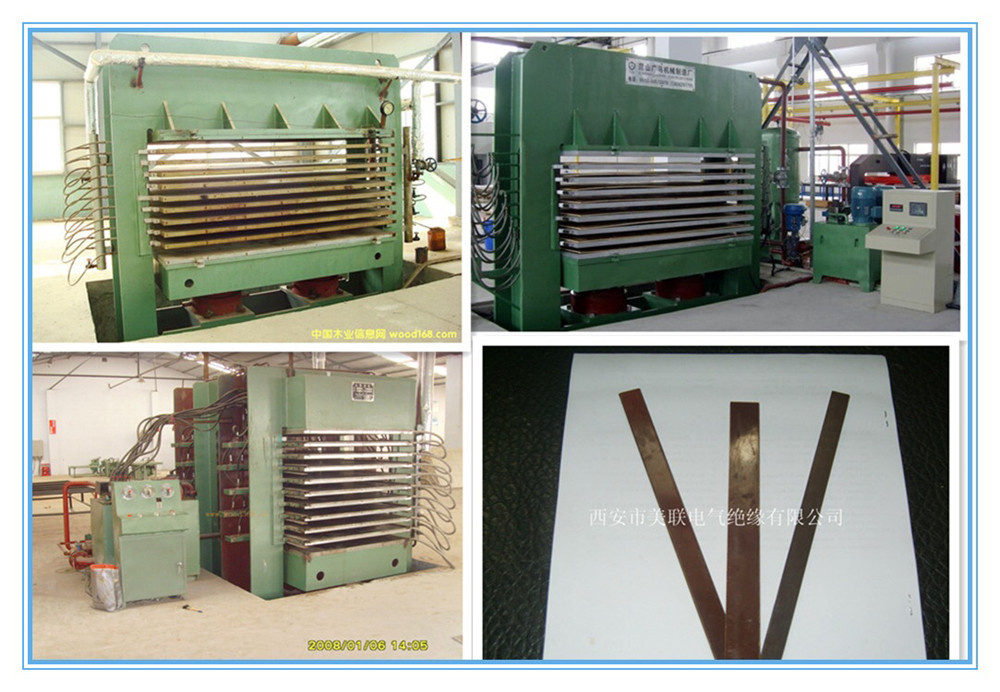

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.
We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".
The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
