305m Coaxial Cable Rg59+2c with CE RoHS ISO UL

Name: 305m Coaxial Cable Rg59+2c with CE RoHS ISO UL
Brand: all-electronics-online.com
SKU: 763308835
Availability: InStock
Rating: 4.9 (66 reviews)

Price:	US $ 56-60/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	DSC-RG59-2C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Coaxial Cable:	Rg59+2c
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS
Type:	Commscope CCTV Cable RG6+2c/18AWG UL Listed

Product Description

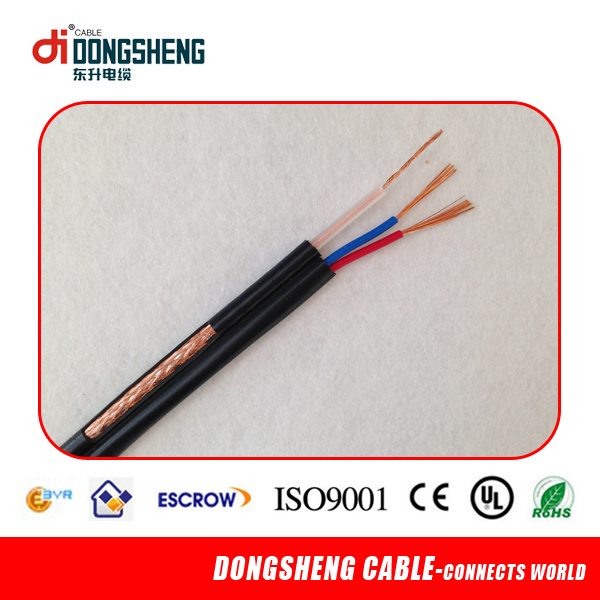

305m Coaxial Cable RG59+2C with CE ROHS ISO UL

Coaxial Cable RG59+2C

Physical specification

(1) RG59 coaxial cable for CCTV camera & DVR
Inner conductor: 0.584 /0.81mm Bare Copper
Dielectric: 3.7mm Solid /Foam PE
Shield: Bare Copper or CCA wire braid 85%~95%
Outer jacket: 6.1mm PVC

(2) RG59+2Power combined cable for CCTV camera &DVR
RG59 coaxial cable specs:
Inner conductor: 0.584 /0.81mm Bare Copper
Dielectric: 3.7mm Solid /Foamed PE
Shield: Bare Copper or CCA wire braid 85%~95%
Outer jacket: 6.1mm PVC

2C Power cable secs
Conductor: Bare Copper 0.5mm,0.75mm,1.0mm,18AWG

(3) RG59+2Power+2signal combined cable for CCTV camera &DVR
RG59 coaxial cable specs:
Inner conductor: 0.584 /0.81mm Bare Copper
Dielectric: 3.7mm Solid /Foamed PE
Shield: Bare Copper or CCA wire braid 85%~95%
Outer jacket: 6.1mm PVC

(3) RG59+2Power+2signal combined cable for CCTV camera &DVR
RG59 coaxial cable specs:
Inner conductor: 0.584 /0.81mm Bare Copper
Dielectric: 3.7mm Solid /Foamed PE
Shield: Bare Copper or CCA wire braid 85%~95%
Outer jacket: 6.1mm PVC
2 Power cable specs
Conductor: Bare Copper 0.5mm,0.75mm,1.0mm,

2 signal cable specs:
TC7x0.2+pvc1.25 blue/green pvc
