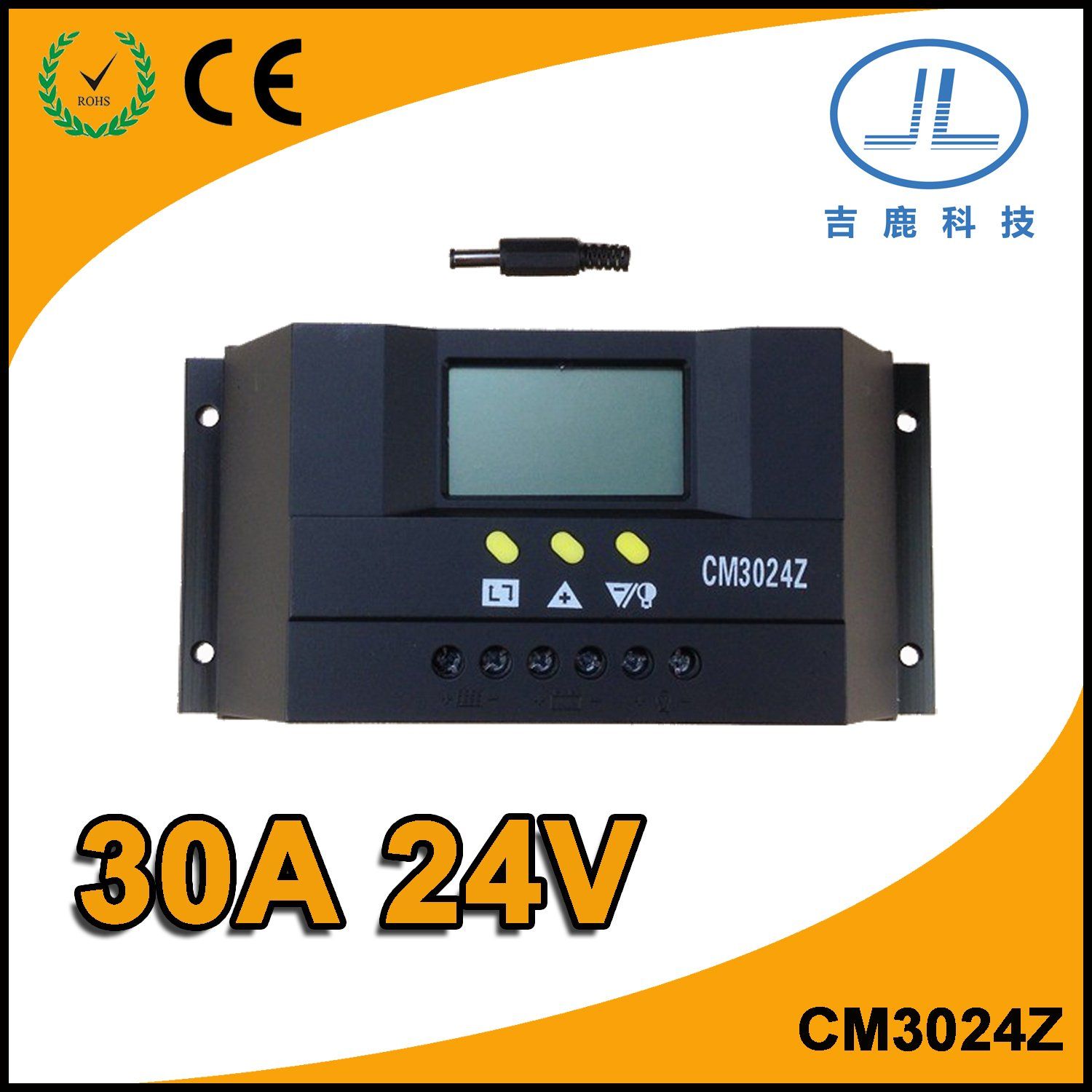

30A 24V Solar Panel Product PWM Solar Battery Charge Controller

30A 24V Solar Panel Product PWM Solar Battery Charge Controller
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: CM3024Z
Charge Mode: PWM
Display: LCD
Rate Current: 30A
Rate Voltage: 12V/24V
Panel Voltage: ≤50V
Float Charge Voltage: 13.7V/27.4V
Under Voltage Protection: 10.7V/21.4V
Loop Voltage: ≤170mA
Operating Temperature: '-20ºC~60ºC
Storage Temperature: '-30ºC~70ºC
Task: Adjust
Structure: Combination
Mathematical Model: Non-Linear
Signal: Discrete
Function: Measurement
Certification: CE
Condition: New
Customized: Customized
Material: Aluminum Alloy

Product Description

Production Introduction

This solar charge controller is the highlight in the range.Use of the latest charging technologies combined with state of charge determination enable optimal battery maintenance and module power monitoring for up to 2880 Wp of connected power. A large display informs the user about all operating modes with the aid of symbols. The state of charge is represented visually in the form of a tank display. Data such as voltage, current and state of charge can also be displayed digitally as figures on the LDC display.

Features:

1. Intelligent PWM charge mode.
2. With temperature compensation.
3. Adjustable working mode(light controller or time control).
4. Stop charging voltage,recovery voltage and cutoff voltage can be adjusted.
5. With over charging , over discharging, overload, short circuit and reverse polarity protection.



Product parameters:

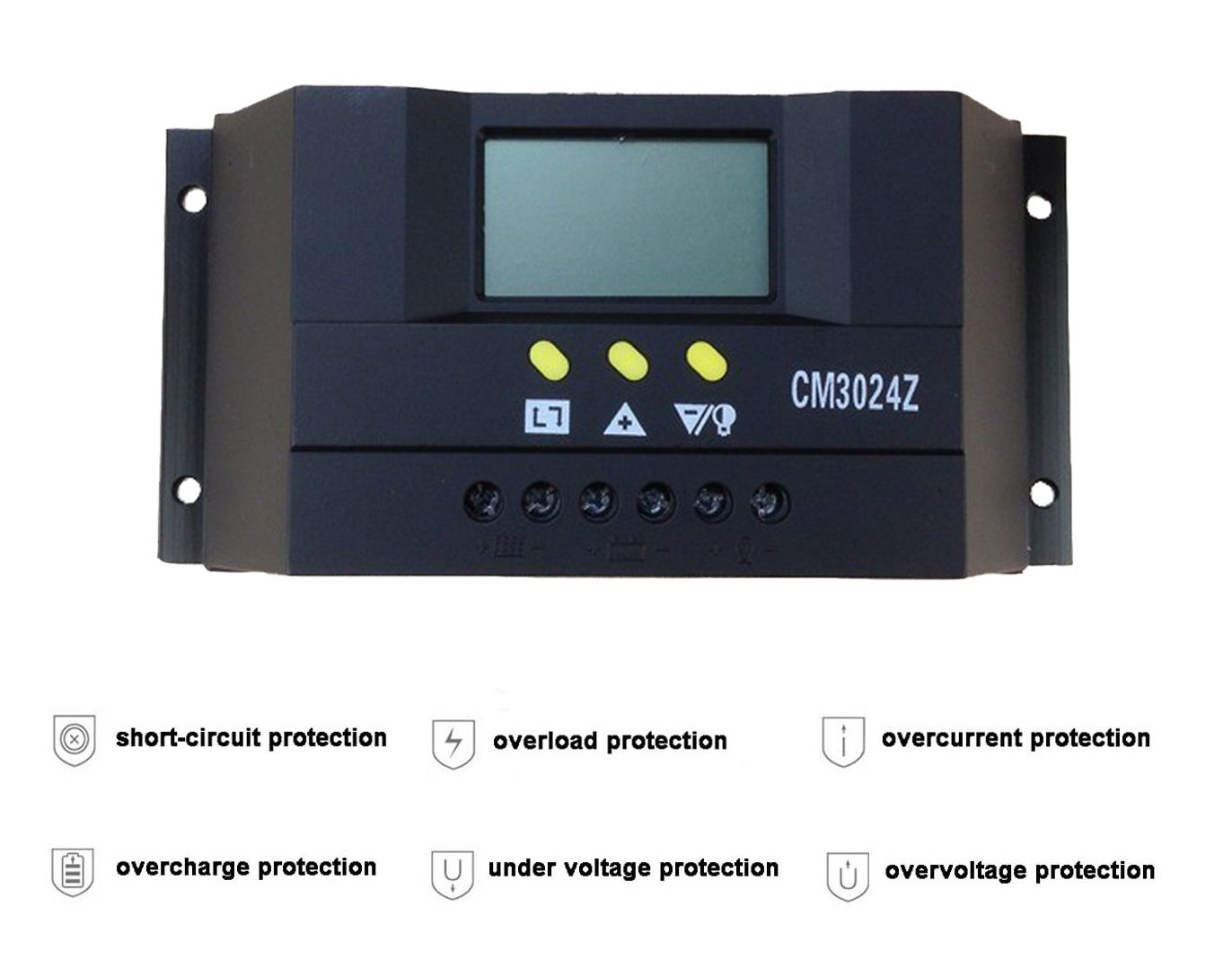

Protection:

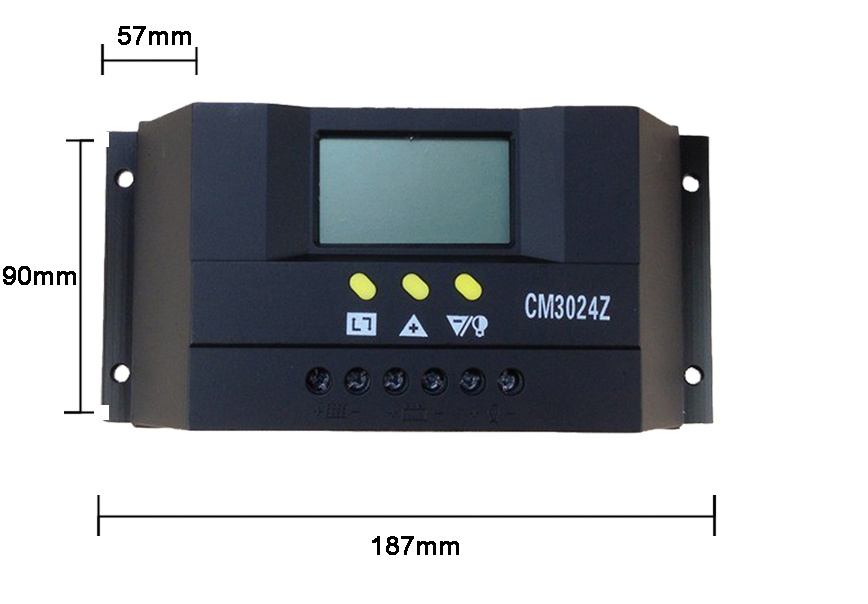

Details:




Connection:





Model3024Z5024Z6024Z304850486048
Rated Voltage12V/24VAUTO48V
Rated Current30A50A60A30A50A60A
Voltage of Solar Panels≤50V≤100V
Float Charging Voltage13.7V/27.4V54.8V
Low Voltage Protection10.7V/21.4V42.8V
Low Voltage Recovery12.6V/25.2V50.4V
No Load Loss≤10mA
Loop Voltage Drop≤170mA
Temperature4mV/Cell/ºC
Operating Temperature-20ºC~60ºC
Storage Temperature-30ºC~70ºC
Humidity Requirements ≤90%, no condensation
Installation Cable Area ≤7#AWG(16mm²)>3#AWG(25mm²) ≤7#AWG(16mm²)>3#AWG(25mm²)
Package Size209*110*63mm217*158*95mm209*110*63mm217*158*95mm
Weight360g590g360g
Ningbo JiLu Leader Drive Technologies Co., Ltd is a a high-tech enterprise which was founded in 2008 that focuses on design, development and manufacture of new energy products. We mainly operate solar brushless DC pumps, brushless DC controllers, PV pumps, solar power systems and other new energy products.

The technology development and product innovation has always been our core competence since the establishment of our company. We have acquired many core technologies and patents on new energy generation and are especially proficient in providing new energy solution and manufacture of solar related product, including: Special & Intelligent controller of solar powered brushless DC pump, brushless DC motor, PV pump system and solar power system.

Our solar brushless DC motor pumps and other products have the characteristics of "long life, low power consumption, high efficiency, highly environmental protection, low noise, speed, balance, reliable operation and no interference", and are widely used in village or family water supply, water supply for farm, garden/courtyard irrigation systems, livestock watering, swimming pool filling, fountains, water supply for bivouac or camping car, solar water circulating system, renewable energy projects, desertification control and so on.

Our high quality solar DC submersible pumps are fit for 3 to 6 inches (75 to160mm) diameter deep well. Besides, they can pump large volumes of water efficiently, economically and environmentally friendly, since their energy is solar power and they are made of eco-friendly and anticorrosive materials, no oily lubricant inside. By the way, the highest flow rates they can achieve are 72 m3/hour. What's more, the solar PV water pumping system consists of a DC motor, a pump, a controller, a solar array and accessories. This modular concept keeps all electronics above ground providing, simple servicing, ease of access and a low cost of ownership.

The advantage of our products:

Best quanlity: Our company now developed the unique and best solar pump, which is totally made of stainless steel.

Best service: We support our clients for more than 3 years warranty, and serve the best technical assistance, we can send you the free spared parts even after the warranty.

Our theme is "Customer first, quality first, honesty and trustworthiness, respect the contract", and to meet customers' expectations is our final goal. Meanwhile, we will try our best to improve product quality and provide the most reasonable price and best service to satisfy the market. We sincerely hope that we can create a brilliant tomorrow with friends both at home and abroad.
