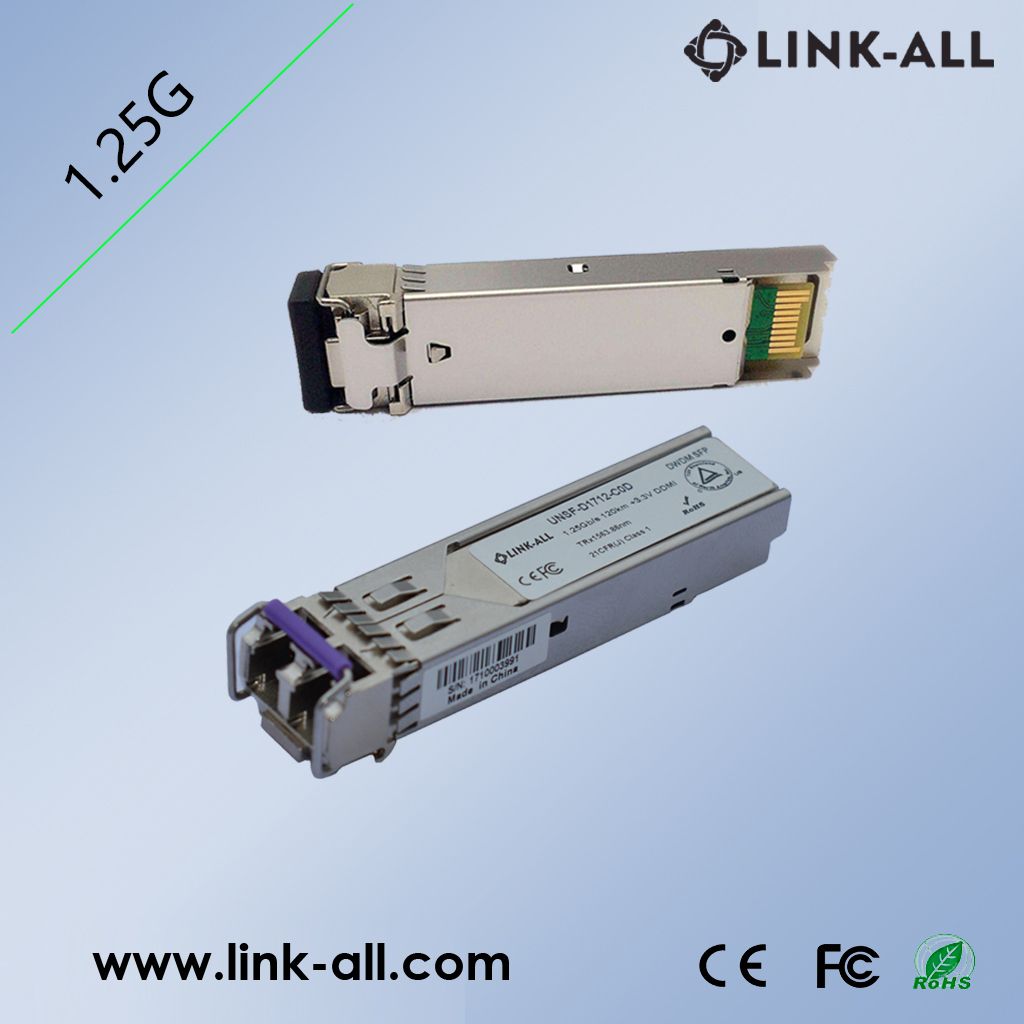

30dB 120km 1.25GB/S DWDM SFP Fiber Optic Transceiver Module
| Price: |
US $ 1-50/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
UNSF-DXX12-C0D |
| Speed Rate: |
1.25 G |
| Wavelength: |
1563.86 Nm |
| Fiber Type: |
LC Duplex |
| Transmitting Distance: |
80 Km |
| Module Type: |
Hot Pluggable, SFP |
| Voltage: |
3.3 V |
| Status Available: |
Active |
| Interface Type: |
Plug-in Module |
| Product Type: |
Optical Module |
| Wiring Devices: |
Integrated Wiring |
| Certification: |
RoHS |
| Condition: |
New |
| Type: |
SFP Transceiver |
Product Description
30dB 120km 1.25Gb/s DWDM SFP Fiber Optic Transceiver moduleProduct Features- Transceiver unit with independent
- DWDM DFB Laser diode transmitter
- APD photodiode receiver
- Compliant with DWDM SFP MSA
- SFF-8472 with duplex LC receptacle
- Hot-pluggable
- Metal enclosure for lower EMI
- 3.3V Single power supply
- 100GHz ITU Grid, C Band
- Wavelength controlled within ± 0.1nm over life and temperature
- Digital diagnostic monitoring
- 120 km with 9/125 µm single mode fiber (SMF) of maximum interconnect distances
- Case operating temperature:0°C to +70°C
Applications- C Band DWDM networks
- SONET/SDH networks
- Fiber channel
- Gigabit Ethernet
Specification of Receiver | Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Input Optical Wavelength | λIN | 1270 | | 1610 | nm | APD |
| Receiver Sensitivity | PIN | | | -30 | dBm | Note (1) |
| Input Saturation Power (Overload) | PSAT | -10 | | | dBm | |
| Los Of Signal Assert | PA | | | -31 | dBm | |
| Los Of Signal De-assert | PD | -40 | | | dBm | Note (2) |
| LOS Hysteresis | PA-PD | 0.5 | 2 | 6 | dB | |
Note:
(1) Measured with Light source 1550nm, ER=9dB; BER =<10^-12 @PRBS=2^23-1 NRZ
(2)When LOS de-asserted, the RX data+/- output is High-level (fixed)
Electrical Interface Characteristics| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Transmitter | |
| Total Supply Current | ICC | | | A | mA | Note (1) |
| Transmitter Disable Input-High | VDISH | 2 | | Vcc+0.3 | V | |
| Transmitter Disable Input-Low | VDISL | 0 | | 0.8 | V | |
| Transmitter Fault Input-High | VTxFH | 2 | | Vcc+0.3 | V | |
| Transmitter Fault Input-Low | VTxFL | 0 | | 0.8 | V | |
| Receiver | |
| Total Supply Current | ICC | | | B | mA | Note (1) |
| LOSS Output Voltage-High | VLOSH | 2 | | Vcc+0.3 | V | LVTTL |
| LOSS Output Voltage-Low | VLOSL | 0 | | 0.8 | V |
Note: - A (TX) + B (RX) =500mA (Not include termination circuit)
Ordering Information
UNSF-DXX12-C0D| Code | Frequency (THz) | Center Wavelength
(nm) | Code | Frequency (THz) | Center Wavelength
(nm) |
| D17 | 191.7 | 1563.86 | D40 | 194.0 | 1545.32 |
| D18 | 191.8 | 1563.05 | D41 | 194.1 | 1544.53 |
| D19 | 191.9 | 1562.23 | D42 | 194.2 | 1543.73 |
| D20 | 192.0 | 1561.42 | D43 | 194.3 | 1542.94 |
| D21 | 192.1 | 1560.61 | D44 | 194.4 | 1542.14 |
| D22 | 192.2 | 1559.79 | D45 | 194.5 | 1541.35 |
| D23 | 192.3 | 1558.98 | D46 | 194.6 | 1540.56 |
| D24 | 192.4 | 1558.17 | D47 | 194.7 | 1539.77 |
| D25 | 192.5 | 1557.36 | D48 | 194.8 | 1538.98 |
| D26 | 192.6 | 1556.55 | D49 | 194.9 | 1538.19 |
| D27 | 192.7 | 1555.75 | D50 | 195.0 | 1537.40 |
| D28 | 192.8 | 1554.94 | D51 | 195.1 | 1536.61 |
| D29 | 192.9 | 1554.13 | D52 | 195.2 | 1535.82 |
| D30 | 193.0 | 1553.33 | D53 | 195.3 | 1535.04 |
| D31 | 193.1 | 1552.52 | D54 | 195.4 | 1534.25 |
| D32 | 193.2 | 1551.72 | D55 | 195.5 | 1533.47 |
| D33 | 193.3 | 1550.92 | D56 | 195.6 | 1532.68 |
| D34 | 193.4 | 1550.12 | D57 | 195.7 | 1531.90 |
| D35 | 193.5 | 1549.32 | D58 | 195.8 | 1531.12 |
| D36 | 193.6 | 1548.51 | D59 | 195.9 | 1530.33 |
| D37 | 193.7 | 1547.72 | D60 | 196.0 | 1529.55 |
| D38 | 193.8 | 1546.92 | D61 | 196.1 | 1528.77 |
| D39 | 193.9 | 1546.12 | | | |
