30HP High Efficiency Tefc -IP55 Three Phase AC Motor

Name: 30HP High Efficiency Tefc -IP55 Three Phase AC Motor
Brand: all-electronics-online.com
SKU: 722543355
Availability: InStock
Rating: 4.4 (92 reviews)

Price:	US $ 32-50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YE2-80M-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	Special Vontages Available
Number Of Stator:	Three-Phase
Function:	Driving
Certification:	CE

Product Description

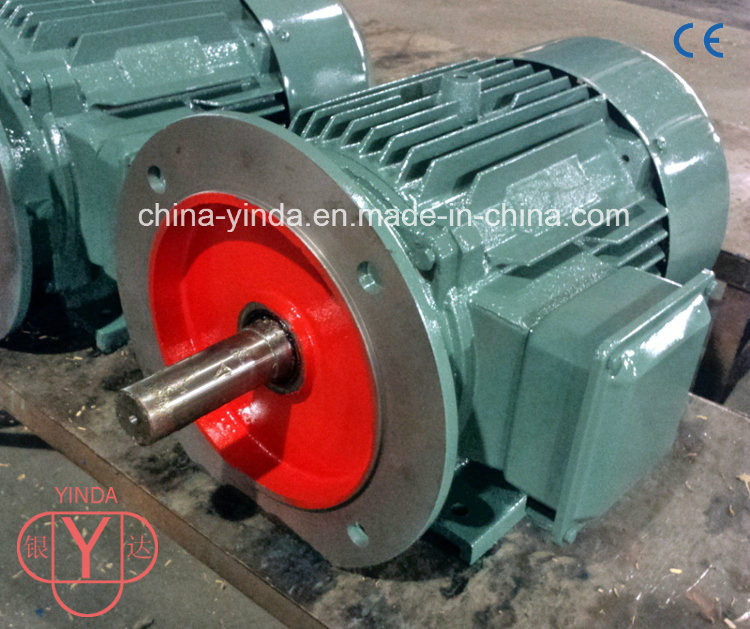

High efficiency TEFC -IP55 Three Phase AC Motor

General:
A) 100% output with 100% copper winding;
B) OEM customer's requirement & customer's drawing;
C) Different size of flange to fit for different device, customized flange is workable.

Features:
1). Power: 0.12KW-200KW;
2). Frame: H63 to 315;
3). Shell: Cast aluminum/iron;
4). Pole: 2/4/6/8 poles;
5). Mounting arrangement: B3/B5/B14/B35/B34 or other;
6). Voltage: 220V, 380V, 400V, 415V, 440V or on request (50Hz or 60Hz);
7). Protection class: IP54
8). Duty/Rating: S1 (Continuous);
9). Cooling method: IC411 (SELF-FAN cooling);
10). Insulation class: F;

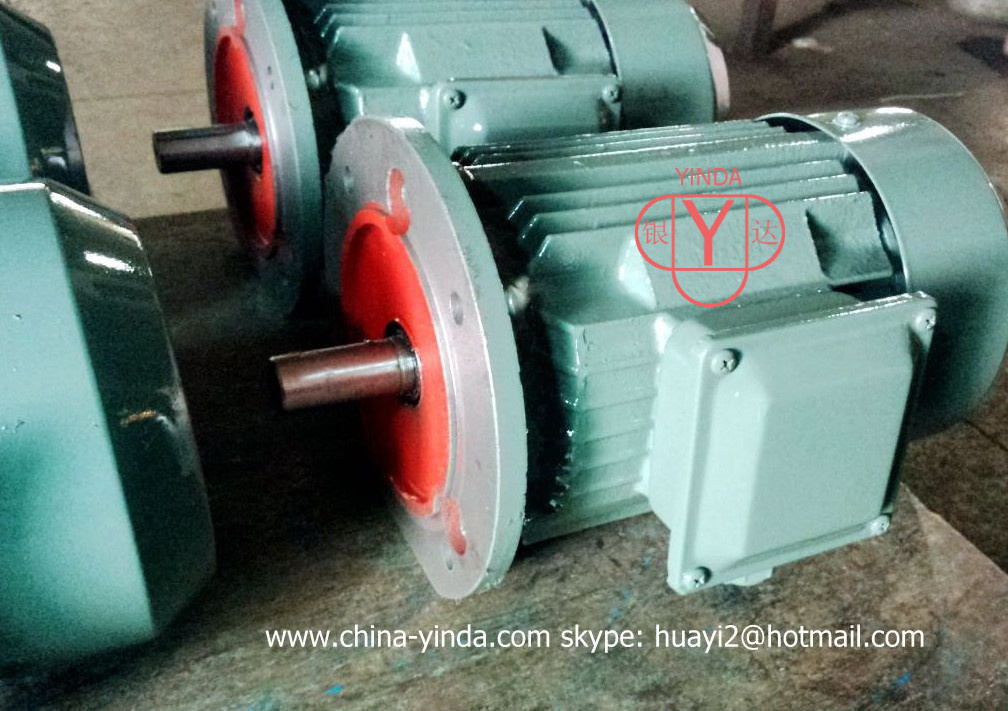

Photos:

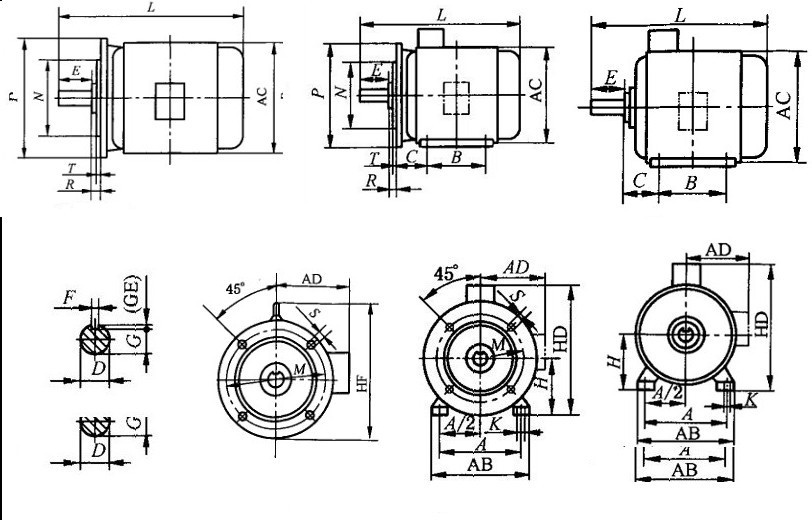

Dimension Drawing:

Frame Size	Flange No.	Pole	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	AD	HD	HF	L
80M	FF165	2, 4,6	125	100	50	19	40	6	15.5	80	10	165	130	200	12	3.5	165	175	145	220		305
90S	FF165	2, 4,6	140	100	56	24	50	8	20	90	10	165	130	200	12	3.5	180	195	165	260		360
90L	FF165	2, 4,6	140	125	56	24	50	8	20	90	10	165	130	200	12	3.5	180	195	165	260		390
100L	FF215	2, 4,6	160	140	63	28	60	8	24	100	12	215	180	250	14.5	4	205	215	180	270	245	435
112M	FF215	2, 4,6	190	140	70	28	60	8	24	112	12	215	180	250	14.5	4	230	240	190	300	265	470
132S	FF265	2, 4,6	216	140	89	38	80	10	33	132	12	265	230	300	14.5	4	270	275	210	345	315	510
132M	FF265	2, 4,6	216	178	89	38	80	10	33	132	12	265	230	300	14.5	4	270	275	210	345	315	560
160M	FF300	2, 4,6	254	210	108	42	110	12	37	160	14.5	300	250	350	18.5	5	320	330	255	420	385	670
160L	FF300	2, 4,6	254	254	108	42	110	12	37	160	14.5	300	250	350	18.5	5	320	330	255	420	385	700
180M	FF300	2, 4,6	279	241	121	48	110	14	42.5	180	14.5	300	250	350	18.5	5	355	380	280	455	430	740
180L	FF300	2, 4,6	279	279	121	48	110	14	42.5	180	14.5	300	250	350	18.5	5	355	380	280	455	430	790
200L	FF350	2, 4,6	318	305	133	55	110	16	49	200	18.5	350	300	400	18.5	5	395	420	305	505	480	790
225S	FF400	4	356	286	149	60	140	18	53	225	18.5	400	350	450	18.5	5	435	470	335	560	535	830
225M	FF400	2	356	311	149	55	110	16	49	225	18.5	400	350	450	18.5	5	435	470	335	560	535	825
225M	FF400	4,6	356	311	149	60	140	18	53	225	18.5	400	350	450	18.5	5	435	470	335	560	535	855
250M	FF500	2	406	349	168	60	140	18	53	250	24	500	450	550	18.5	5	490	510	370	615	595	915
250M	FF500	4,6	406	349	168	65	140	18	58	250	24	500	450	550	18.5	5	490	510	370	615	595	915
280S	FF500	2	457	368	190	65	140	18	58	280	24	500	450	550	18.5	5	550	580	410	680	650	985
280S	FF500	4,6	457	368	190	75	140	20	67.5	280	24	500	450	550	18.5	5	550	580	410	680	650	985
280M	FF500	2	457	419	190	65	140	18	58	280	24	500	450	550	18.5	5	550	580	410	680	650	1035
280M	FF500	4,6	457	419	190	75	140	20	67.5	280	24	500	450	550	18.5	5	550	580	410	680	650	1035
315S	FF600	2	508	406	216	65	140	18	58	315	28	600	550	660	24	6	635	645	530	845		1180
315S	FF600	4,6	508	406	216	80	170	22	71	315	28	600	550	660	24	6	635	645	530	845		1290
315M	FF600	2	508	457	216	65	140	18	58	315	28	600	550	660	24	6	635	645	530	845		1210
315M	FF600	4,6	508	457	216	80	170	22	71	315	28	600	550	660	24	6	635	645	530	845		1320
315L	FF600	2	508	508	216	65	140	18	58	315	28	600	550	660	24	6	635	645	530	845		1210
315L	FF600	4,6	508	508	216	80	170	22	71	315	28	600	550	660	24	6	635	645	530	845		1320

Technical Data:

Motor Type	Rated Output (50Hz)		Efficiency	Power factor	Rated Current	ILR / Irated	TLR/Trated		LWA
Motor Type	kW	HP	Full Load 100%	CosΦ	A	ILR / Irated	TLR/Trated		dB(A)
3000 r/min = 4 poles 380V 50Hz
YE2-80M1-2	0.75	1	77.4	0.82	1.8	6.8	2.3	2.3	62
YE2-80M2-2	1.1	1.5	79.6	0.83	2.5	7.1	2.3	2.3	62
YE2-90S-2	1.5	2	81.3	0.84	3.3	7.3	2.3	2.3	67
YE2-90L-2	2.2	3	83.2	0.85	4.7	7.6	2.3	2.3	67
YE2-100L-2	3	4	84.6	0.87	6.2	7.8	2.2	2.3	74
YE2-112M-2	4	5.5	85.8	0.88	8	8.1	2.2	2.3	77
YE2-132S1-2	5.5	7.5	87	0.88	10.9	8.2	2.2	2.3	79
YE2-132S2-2	7.5	10	88.1	0.89	14.5	7.8	2.2	2.3	79
YE2-160M1-2	11	15	89.4	0.89	21	7.9	2.2	2.3	81
YE2-160M-2	15	20	90.3	0.89	28.4	7.9	2.2	2.3	81
YE2-160L-2	18.5	25	90.9	0.89	34.7	8.0	2.2	2.3	81
YE2-180M-2	22	30	91.3	0.89	41.1	8.1	2.2	2.3	83
YE2-200L1-2	30	40	92	0.89	55.7	7.5	2	2.3	84
YE2-200L2-2	37	50	92.5	0.89	68.3	7.5	2	2.3	84
YE2-225M-2	45	60	92.9	0.89	82.7	7.5	2.2	2.3	86
YE2-250M-2	55	75	93.2	0.89	100.7	7.6	2.2	2.3	89
YE2-280S-2	75	100	93.8	0.89	136.5	6.9	1.8	2.3	91
YE2-280M-2	90	120	94.1	0.89	163.3	6.9	1.8	2.3	91
YE2-315S-2	110	150	94.3	0.9	196.9	7.0	1.8	2.2	92
YE2-315M-2	132	180	94.6	0.9	235.6	7.0	1.8	2.2	92
YE2-315L1-2	160	220	94.8	0.91	281.8	7.1	1.8	2.2	92
YE2-315L2-2	200	270	95	0.91	351.5	7.1	1.8	2.2	92
1500 r/min = 4 poles 380V 50Hz
YE2-80M2-4	0.75	1	79.6	0.76	1.9	6.4	2.3	2.3	56
YE2-90S-4	1.1	1.5	81.4	0.77	2.7	6.6	2.3	2.3	59
YE2-90L-4	1.5	2	82.8	0.78	3.5	6.7	2.3	2.3	59
YE2-100L1-4	2.2	3	81.8	0.8	5.1	7.3	2.3	2.3	64
YE2-100L2-4	3	4	83.3	0.81	6.8	7.5	2.3	2.3	64
YE2-112M-4	4	5.5	86	0.81	8.7	7.5	2.3	2.3	65
YE2-132S-4	5.5	7.5	87.7	0.82	11.6	7.5	2	2.3	71
YE2-132M-4	7.5	10	88.7	0.83	15.5	7.3	2	2.3	71
YE2-160M-4	11	15	89.8	0.83	22.4	7.4	2	2.3	73
YE2-160L-4	15	20	90.6	0.84	29.9	7.5	2	2.3	73
YE2-180M-4	18.5	25	91.2	0.85	36.3	7.6	2	2.3	76
YE2-180L-4	22	30	91.6	0.85	42.9	7.7	2.1	2.3	76
YE2-200L-4	30	40	92.3	0.85	58.1	7.1	2.1	2.3	76
YE2-225S-4	37	50	92.7	0.86	70.5	7.3	2.1	2.3	78
YE2-225M-4	45	60	93.1	0.86	85.4	7.3	2.2	2.3	78
YE2-250M-4	55	75	93.5	0.86	103.9	7.3	2.2	2.3	79
YE2-280S-4	75	100	94	0.87	139.3	6.8	2.2	2.3	80
YE2-280M-4	90	120	94.2	0.88	165	6.9	2.2	2.3	80
YE2-315S-4	110	150	94.5	0.89	198.7	6.9	2.1	2.2	88
YE2-315M-4	132	180	94.7	0.89	238	6.9	2.1	2.2	88
YE2-315L1-4	160	220	94.9	0.9	284.6	6.9	2.1	2.2	88
YE2-315L2-4	200	270	95.1	0.9	355	6.9	2.1	2.2	88
1000 r/min = 4 poles 380V 50Hz
YE2-90S-6	0.75	1	75.9	0.71	2.1	5.8	2	2.1	57
YE2-90L-6	1.1	1.5	78.1	0.72	3	5.9	2	2.1	57
YE2-100L-6	1.5	2	79.8	0.72	4	5.9	2	2.1	61
YE2-112M-6	2.2	3	81.8	0.72	5.7	6.2	2	2.1	65
YE2-132S-6	3	4	83.3	0.72	7.6	6.4	2	2.1	69
YE2-132M1-6	4	5.5	84.6	0.74	9.7	6.6	2	2.1	69
YE2-132M2-6	5.5	7.5	86	0.75	13	6.8	2	2.1	69
YE2-160M-6	7.5	10	87.2	0.78	16.8	6.8	2	2.1	73
YE2-160L-6	11	15	88.7	0.79	23.9	6.9	2	2.1	73
YE2-180L-6	15	20	89.7	0.82	31	7.3	2	2.1	73
YE2-200L1-6	18	25	90.4	0.8	37.8	7.2	2	2.1	73
YE2-200L2-6	22	30	90.9	0.81	45.4	7.3	2	2.1	73
YE2-225M-6	30	40	91.7	0.82	60.6	6.8	2	2.1	74
YE2-250M-6	37	50	92.2	0.83	73.5	7	2	2.1	76
YE2-280S-6	45	60	92.7	0.85	86.8	7.2	2	2	78
YE2-280M-6	55	75	93.1	0.86	104.4	7.2	2	2	78
YE2-315S-6	75	100	93.7	0.84	144.8	6.5	2	2	83
YE2-315M-6	90	120	94	0.85	171.1	6.6	2	2	83
YE2-315L1-6	110	150	94.3	0.85	208.5	6.6	2	2	83
YE2-315L2-6	132	180	94.6	0.86	246.5	6.6	2	2	83

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
