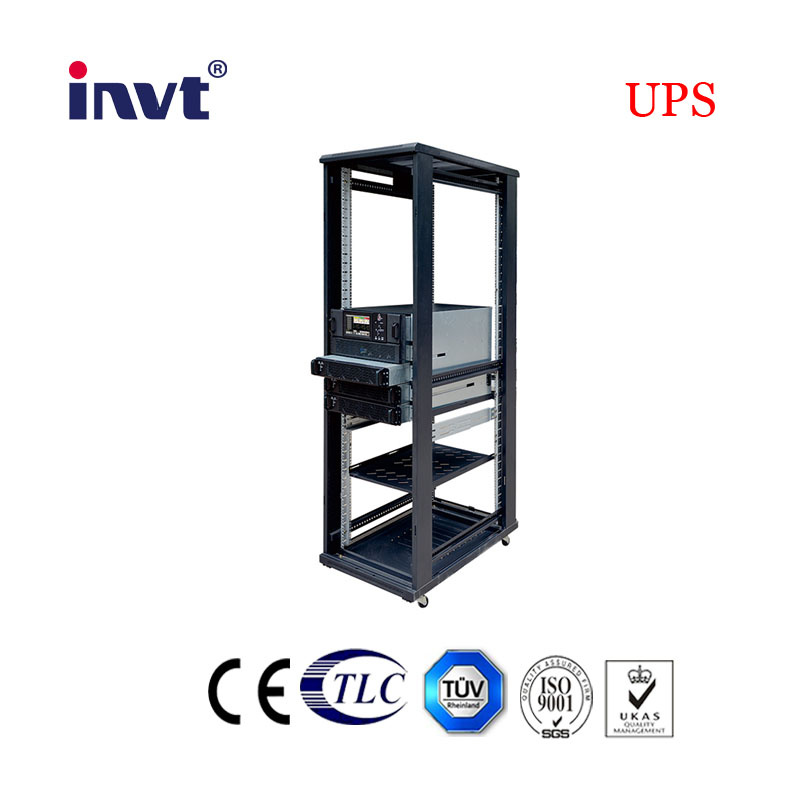

30kVA Dm Series Modular Online UPS (DM030/10X)

Name: 30kVA Dm Series Modular Online UPS (DM030/10X)
Brand: all-electronics-online.com
SKU: 830841865
Availability: InStock
Rating: 4.6 (73 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DM030/10X
Capacity:	50kVA/45kw
Voltage:	200V/208V/220V
Frequency Range:	40Hz-70Hz
Power Factor:	0.9
Crest Factor:	3:1
IP Class:	IP20
Peration/Storage Temperature:	0-40ºC/-40-70ºC
Phase:	Three Phase
Type:	On-line
Protection:	Short Circuit
Brand:	Invt

Product Description

DM Series Modular Online UPS 10-50kVA (200V/208V/220V)
Rack modular design
Modular design, compatible with 19" standard rack cabinet, convenient to be integrated into server cabinet
High power density
10kVA power module in 2U height, saving great amount of space, easy for capacity expansion
Integrated solution for data center
UPS can be integrated with battery cabinet, PDU and external maintenance bypass, offering excellent choice for data center
Smart sleep function
System can intelligently shut down some power modules to increase total load rate, achieving higher efficiency
Self-aging mode
Energy internal circle technology, system can run with full load, saving more than 90% energy
Friendly interface
7" touch color LCD with graphic display, more information displayed and easier for customer to operate
Intelligent charging management

The system intelligently control the whole process of the charging and discharging, effectively improving the life time of the battery

The rack modular, scalable, hot-swappable, online double conversion UPS ranging from 10 to 50kVA, with its compact structure, is the ideal choice for small and medium data center.

MODEL		DM050/10X	DM030/10X	DM020/10X
Capacity		50kVA/45kW	30kVA/27kW	20kVA/20kW
Power module		PD10X(10kVA/9kW)
INPUT
Phase		3 Phase + Neutral + Ground (200V/208V/220V)
Voltage range		166-261Vac (line-line),100% load; 166-125Vac, load derated from 100%-75% linearly
Frequency range		40Hz-70Hz
Power factor		>0.99
THDi		THDi<4% @ 100% linear load
OUTPUT
Voltage		200V/208V/220V
Voltage regulation		1.5%
Power factor		0.9
THDu		THD<1% (linear load ), THD<5.5% (non-linear load)
Crest factor		3:1
Overload capability		110% for 1 hour; 125% for 10 min; 150% for 1 min; >150% for 200ms
BATTERY
Voltage		±120VDC
Charge power		20%*System Power
Charge voltage precision		±1%
SYSTEM
System efficiency		Normal mode:93%; ECO mode:98%; Battery mode:92.5%
Display		7.0" color touch screen LCD + LED + Keyboard
IP class		IP20
Interface		Standard: RS232, RS485, Dry contacts; Optional: SNMP
Operation/Storage temperature		0-40ºC/-40-70ºC
Relative humidity		0-95% (non-condensing)
Noise		58dB @ full load, 52dB @ 45% load (1 meter away)
PHYSICAL
Weight (kg)	Cabinet	85	51
	Power Module	15.3
Dimension (WDH) (mm)	Cabinet	4857511033	485751575 (11U)
	Power Module	43659085 (2U)

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
