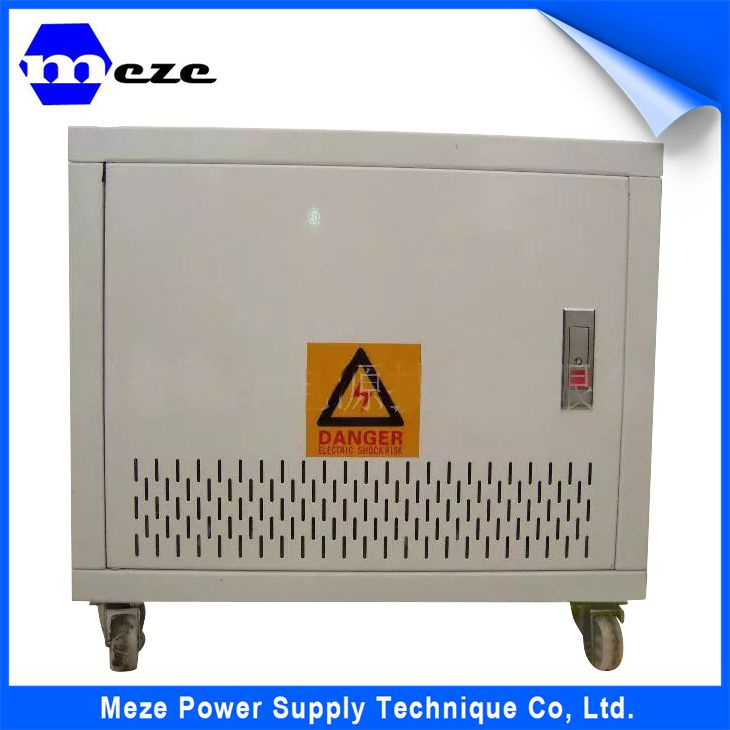

30kVA Regulator DC Power Supply Voltage Stabilizer

Name: 30kVA Regulator DC Power Supply Voltage Stabilizer
Brand: all-electronics-online.com
SKU: 783680955
Availability: InStock
Rating: 4.6 (91 reviews)

Price:	US $ 700-1400/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MZVC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Characteristics:	Continous Linear Voltage Adjustment
Current Type:	AC
Phase:	Three Phase
Usage:	JIW
Frequency:	High Frequency
Size:	Small/Large
Application Range:	Hotel/School/

Product Description

30kva regulator dc power supply voltage stabilizer

Model	MZVC1005	MZVC1010	MZVC1015	MZVC1020	MZVC1030
Nominal capacity	5KVA	10KVA	15KVA	20KVA	30KVA
input voltage	220V±20%
output voltage	220V±3%
frequency	50/60Hz
Voltage regulation	≤±3%
overpressure	250V±5V
Under voltage protection value	183V±5V
waveform distorition	≥95%
effciency	No additonal waveform distortion
The electric strength	≤1.5s
insulation resistance	≥2MΩ
Response time	Power frequency sine voltage 1500v lasted 1 min no breakdown or flashover phenomenon
temperature	-10ºC~45ºC
humidity	≤95%
Altutide	<2000
Why to work	continuous
Dimensen	360x175x300	500x220x425		380x330x770	400x530x730
Weight	15.3	30.7	48	71	105

This series product voltage using the induction voltage regulating principle, combined
with our company independent research and development of process technology and
structure design, using imported enameled wire and insulation material combination of a
new generation of pure linear non-contact voltage regulator, products with high efficiency,
strong ability to resist impact load, lossless device, long life and other advantages.
Areas of application: widely used in government agencies, research centres, embroidery,
textile, rail transportation, photoelectric display, printing and packaging, radio and television,
process control, military instrument control, financial securities, medical equipment, metal
processing, agricultural machinery, electric power department, office, computer network,
telecommunications, computer numerical control equipment, etc.
LED display panel, the LCD panel can dynamically display system working condition
Domestic unique patented technology, one-piece precision transmission structure

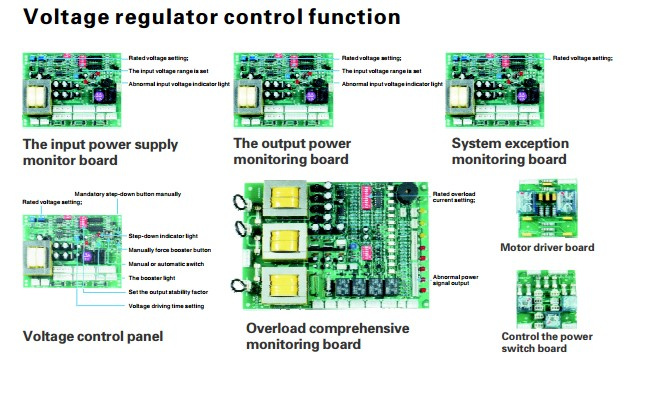

Multi-layer circuit control architecture
Power cuts, soft start function calling back
Abnormal voltage stabilizing system self test
Continuous linear voltage adjustment, suitable for all kinds of bad environment
Full digital control technology
Main characteristics:
Product overview and application field

Welcome your enquiry

Contact me :

Ellen Wu

Meze company was founded in 1999, so far, has developed into a comprehensive power supply enterprise, products include: UPS uninterruptible power supply, microcomputer non-contact electronic AC regulated power supply, EPS emergency power supply, etc. Main range: The financial, government, research institutes, transportation, aerospace, electronics, medical, services, etc. To meet the global electronic and communication industry for power equipment is increasingly vigorous market demand, Due to the need of development, shenzhen Meze power technology Co., Ltd was established in 2008 (Specialize in UPS power frequency, regulated power supply, and transformer) In the same year registered Meze electronics Co., Ltd. (Terminal blocks, all accessories of PCB), In 2011, registered shenzhen Meze mechanical and electrical Co., Ltd. ( SMT placement machine and accessories ).

Existing number of employees: 180-180 employees, Using area: 3000 square meters, Company has the high technology and rich experience, Products from well-known international brands of Europe, is committed to providing customers with the full range of high quality high performance high stable power supply protection. Using the international advanced intelligent digital UPS power supply technology, and the most advanced precision purification. Provide the most advanced, cutting-edge, the most reliable, the top power solutions.
