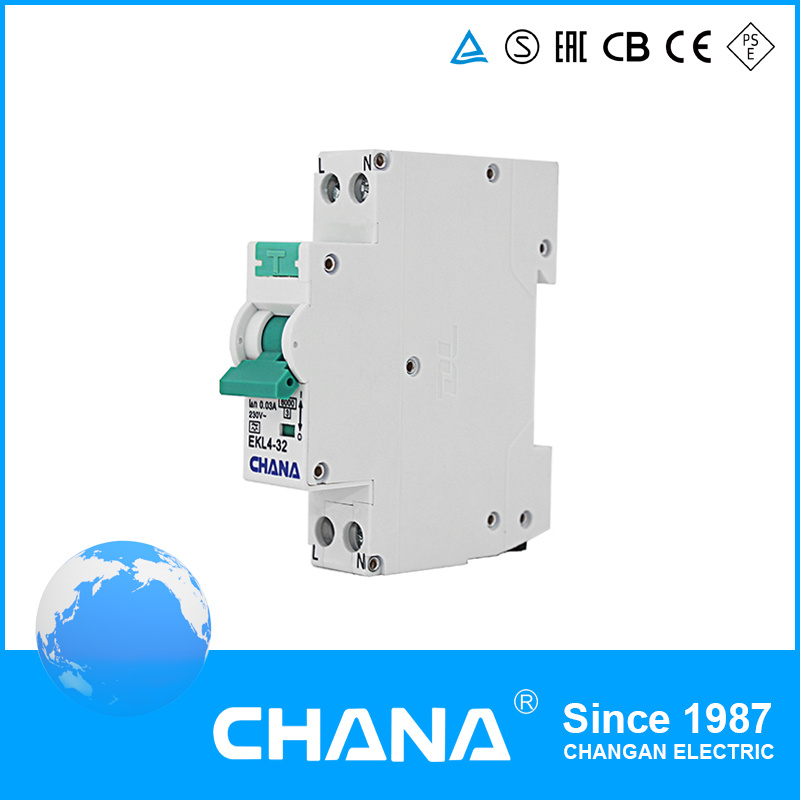

30mA 6ka RCBO 1p+N 16A Residual Current Device

Prod Model:	EKL4-32
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current:	6A-63A
Residual:	30mA
Number Of Pole:	1p+N
Material:	Plastic
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Certification:	CCC
Poles Number:	1p+N

Product Description

EKL4-40 Electronic Type RCCB with Overcurrent Protection (RCBO)

1. Specification


Standard	IEC61009-1
Electrical Feature
Type (wave form of the earth leakage sensed)	AC, A
Thermo-magnetic release characteristic	C
Rated current In	6, 10, 16, 20, 25, 32A
Poles	1P+N
Rated voltage Ue	230/240V
Rated sensitivity IΔn	0.03, 0.1, 0.3A
Rated frequency	50/60Hz
Rated residual making and breaking capacity	500A
Rated short-circuit capacity	6000A
Break time under IΔn	≤0.1s
Rated impulse withstand voltage(1.2/50) Uimp	4000V
Dielectric test voltage at ind. Freq. For 1 min	2000V
Pollution degree	2
Insulation voltage Ui	500V
Mechanical Feature
Electrical life	2000
Mechanical life	2000
Protection degree	IP20
Contact position indicator	Yes
Ambient temperature (with daily average≤ 35º C)	-5 º C...+40 º C
Storage temperature	-25 º C...+70 º C
Installation
Terminal connection type	Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable	16mm² 18-5AWG
Terminal size top/bottom for bus bar	16mm² 18-5AWG
Tightening torque 2 N*m	18In-Ibs
Mounting	On DIN rail EN 60715 (35mm) by means of fast clip device
Connection	From top

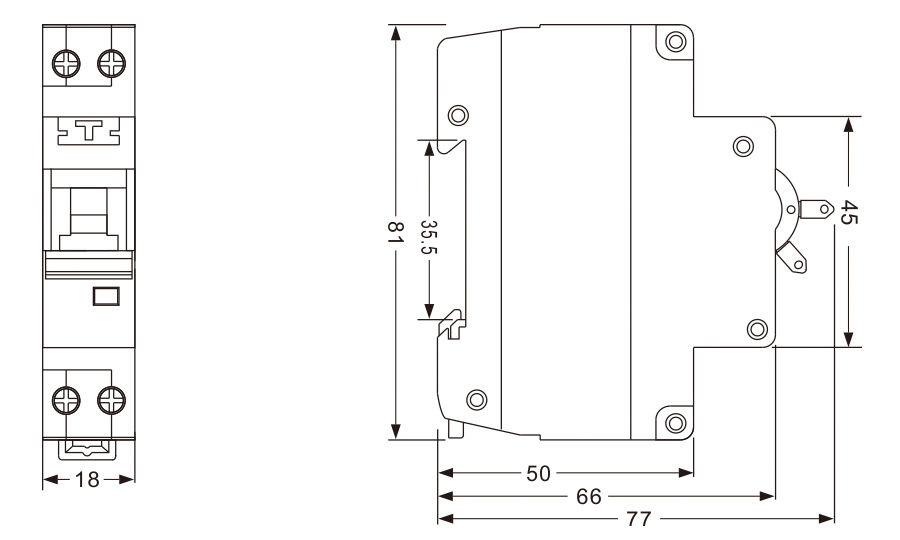

2. Overall and Installation Dimension(mm)



3. Certificates

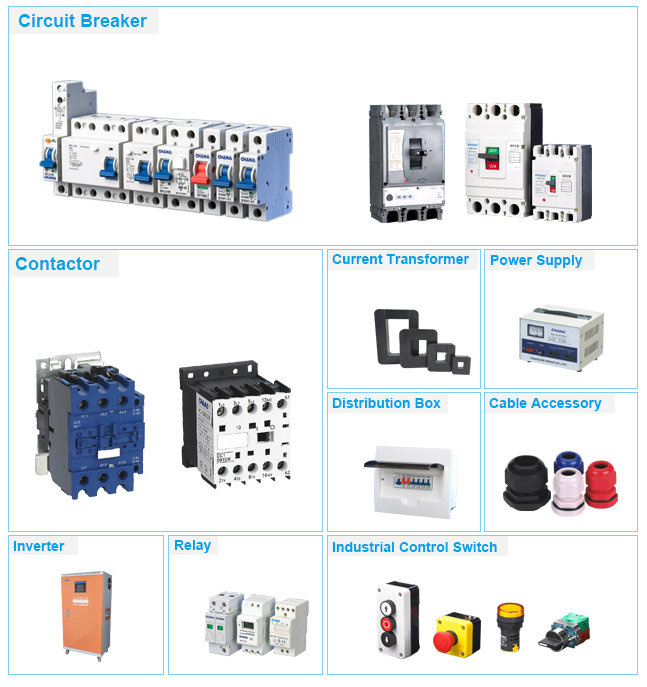

4. Feature Products

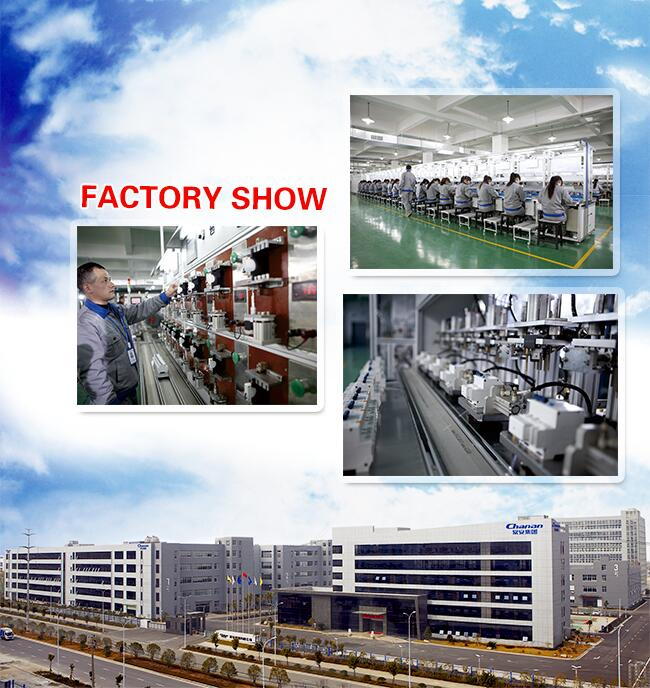

5. Company Profile

Changan Group Co., Ltd, Established in 1987, comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 30years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,
Contactor, Relay, Switch, Solar Inverter etc..
1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Europe, South America, Mid-east and Africa Market.

6. FAQ

Q 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance agaisnt the copy of b/l.

Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.

Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.

Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.
