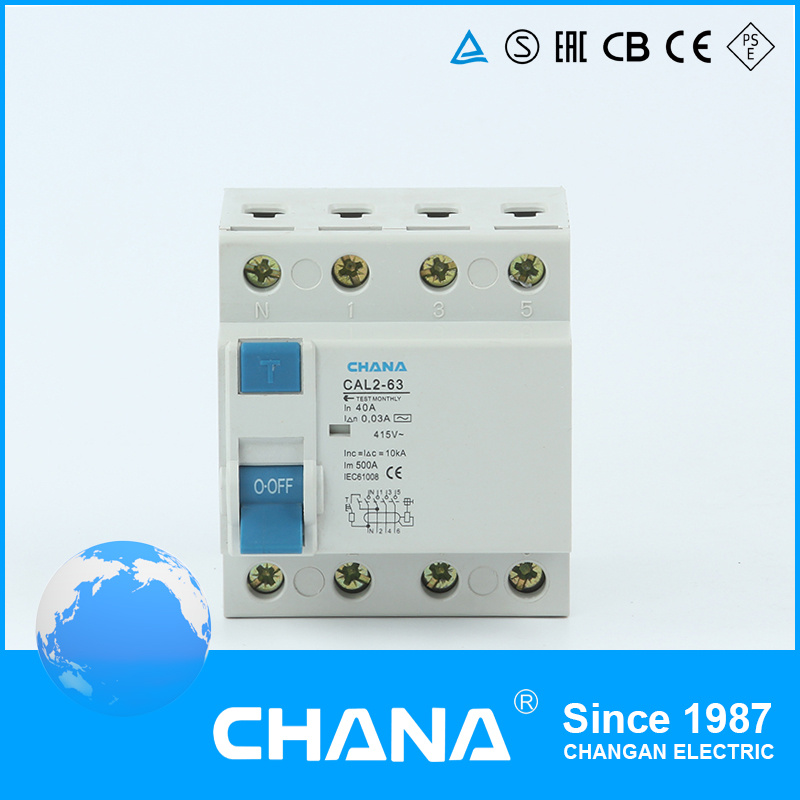

30mA ELCB Electromagnetic Type RCCB with Ce and CB Approval

Prod Model:	CAL2-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current In:	25, 40, 50, 63A
Rated Sensitivity In:	0.03, 0.1, 0.3A
Poles:	2,4
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Certification:	CCC
Installation:	DIN Rail
Structure:	RCCB
Poles Number:	2p,4p
Function:	Avoid The Shock Hazard and Fire Caused by Earth L

Product Description

Electro-magnetic Type RCCB Residual Current Circuit Breaker

1. Specification


Standard	IEC61008-1
Electrical Feature
Type(wave form of the earth leakage sensed)		AC, A, AC~S, A~S
Rated current In	A	25,40,50,63
Poles	P	2,4
Rated voltage Ue	V	240/415
Rated sensitivity	A	0.03,0.1,0.3
Insulation voltage Ui	V	500
Rated residual making and breaking capacity	A	500(In=25/40A) 630(In=50/63A)
Short-circuit current Inc	A	4500/6000A
SCPD fuse		6000
Break time under	S	≤0.1
Rated frequency	Hz	50/60
Rated impulse withstand voltage(1.2/50) Uimp	V	4000
Dielectric test voltage at ind. Freq. For 1 min	V	2500
Pollution degree		2
Mechanical Feature
Electrical life		2000
Mechanical life		2000
Fault current indicator		Yes
Protection degree		IP20
Ambient temperature (with daily average≤ 35º C)	º C	-5...+40
Storage temperation	º C	-25...+70
Installation
Terminal connection type	Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable	25mm2 18-3AWG
Terminal size top/bottom for busbar	25mm2 18-3AWG
Tightening torque	2.5 N*m 18 In-Ibs
Mounting	On DIN rail EN 60715 (35mm) by means of fast clip device
Connection	From top and bottom

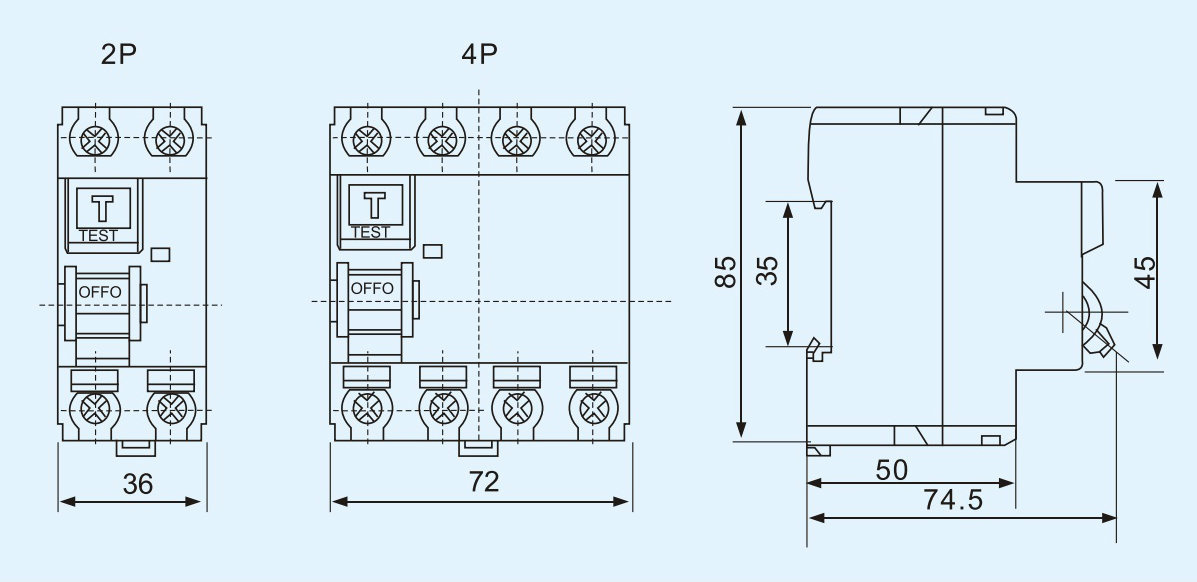

2. Dimension(mm)
