30mm LED Ring Illuminated Normal Closed Waterproof Momentary Exit Push Button, Safety Exit Switch
| Price: |
US $ 0.1-10/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
hbgq30-11e/s |
| Switch Rating: |
5A/250V AC |
| Contact Configuration: |
1no1nc, 2no2nc |
| Operatiion Type: |
Momentary/Latching |
| Crust Material: |
Stainless Steel |
| IP Protection Degreee: |
IP65, Ik10 |
| Terminal Type: |
Pin Terminal |
| Illuminated Type: |
Ring-Illuminated |
| Usage: |
Check Button |
| Kind: |
Double-pole on-off Switch |
| Type: |
1no1nc |
| Brand: |
Hban |
| Certification: |
Ce, RoHS, ISO9001 |
Product Description

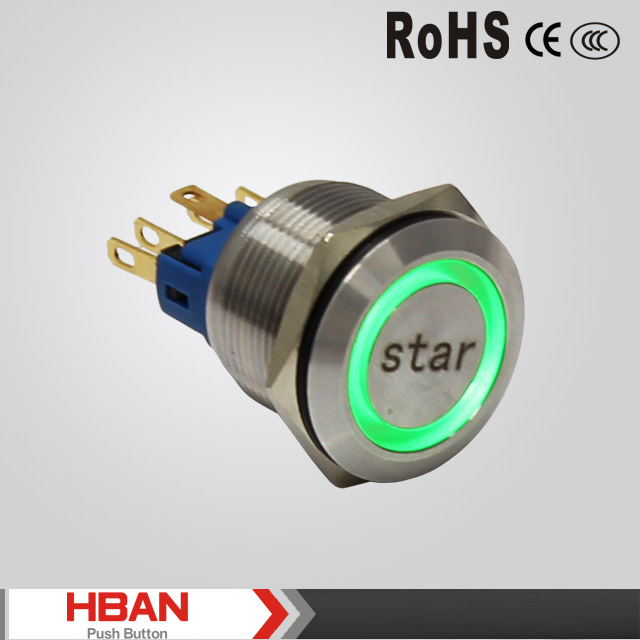

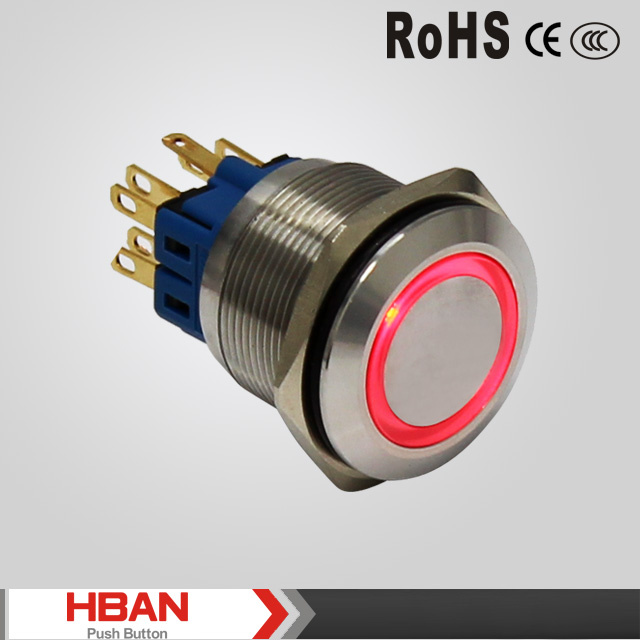

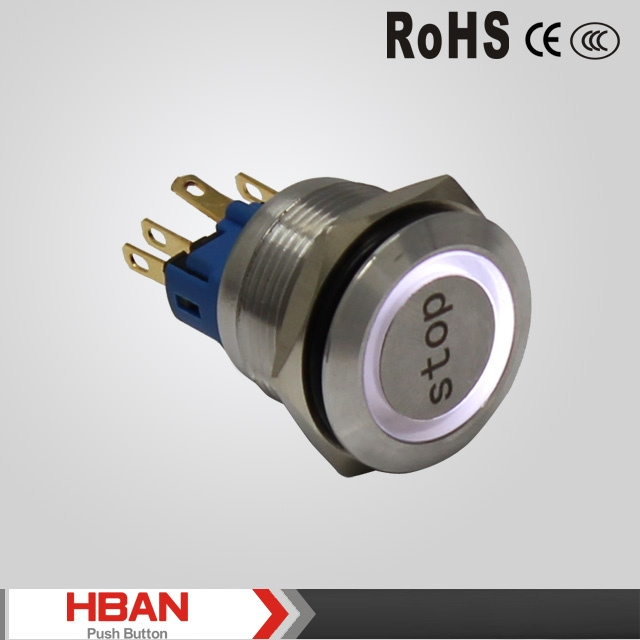

30mm led ring illuminated normal closed waterproof exit button,safety exit switch
Mounting Hole Size:Φ28mm
Switch Rating :5A / 250VAC
Front Shape:Flat
Connector:Pin terminal
Operation type:1NO1NC,2NON2C
Switch Type: Za Double-break fast-motion changeover contact
Protection Degree:IP65,IK10
| Item NO. | HBGQ30-11E/S | HBGQ30-11EZ/S |
| Specification | 1NO1NC,Momentary | 1NO1NC,Latching |
| Item NO. | HBGQ30-22E/S | HBGQ30-22EZ/S |
| Specification | 2NO2NC,Momentary | 2NO2NC,Latching |
| Front Head Shape | Flat Round |

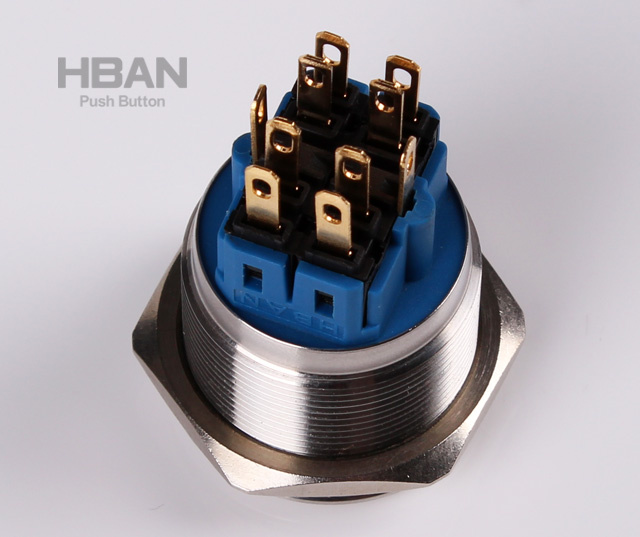

| Terminal Type | Pin terminal(2.8*0.5mm) |
| Switch Type | C Single breakpoint snap-action changeover contacts |
| Switch Specification | Ith:5 A Ui:250V AC |
| Contact Resistance | ≤ 50mΩ |
| Insulation Resistance | ≥1000mΩ |
| Dielectric Strength | 2000V |
| Operating Temperature | -22 degree~+55 degree |
| Machanical Life | >1,000,000times |
| Electrical Life | >50,000times |
| Panel Thickness | 1-10mm |
| Torque | 5-14Nm |
| Operating Pressure | 3~5N |
| Protection Degree | about 3.1mm |
| Materisl | Contact | IP65,IK10 |
| Button | Silver Alloy |
| Case | Stainless Steel |
| Base | Stainless Steel |
Lamp
Parameters | Type | Ring-illuminated(LED) |
| Rated Voltage | 6V/12V/24V/110V/220V |
| Color | Red/Green/Orange/Yellow/White/Blue |
| Life | 50,000hours |
Package:| item | 10PCS | 20BOXS | CARTON |
| HBGQ28- | BOX | CARTON | 435X380X335 |
