30mm U Type Fork Optical Photoelectric Sensors

Name: 30mm U Type Fork Optical Photoelectric Sensors
Brand: all-electronics-online.com
SKU: 840371985
Availability: InStock
Rating: 4.5 (83 reviews)

Price:	US $ 1-20piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HE3S

Product Description

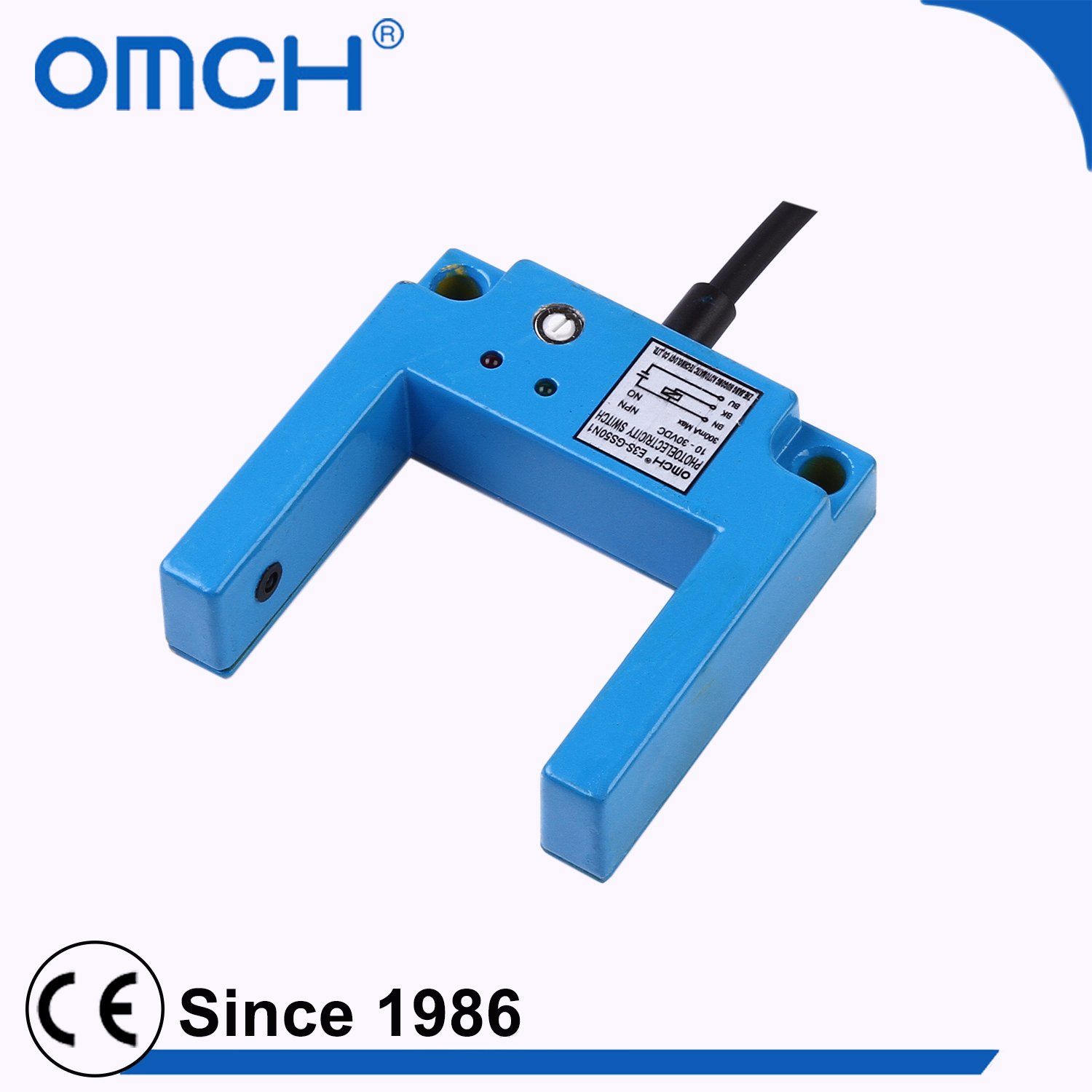

30mm U Type Fork Optical Photoelectric Sensors

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC
Used in common places witch medium environment resistance
Red LED indicates that it's available to derect the sensor operating state
IP66 protection structure (IEC specification)
Read the "Matters needing attention" of the Product Instruction before use

Type and Specification
We sincerely welcome agents from all over the world

Dimension				205272
Detection method				Slot type
T Y P E	DC type	N P N	NO	HE3S-GS30E4
			NC	HE3S-GS30E2
		P N P	NO	HE3S-GS30F4
			NC	HE3S-GS30F2
Detection range				30mm
Detection range regulation				Sensitivity adjuster
Detection target				Opaque object
Response frequency				300Hz
Connection delay					1.5ms
Light Source					Infrared light 660nm
Supply voltage					DCtype:DC12-24V(6-36V)Impulse(p-p)10%below ACtype:AC110-220V(90-250V)50/60Hz
Consumption current					N.Ptype:20mAbelow,A type:1.7mAbelow.
Control output					N.Ptype:300mAbelow,A type:400mAbelow.J type: 2A below(contact service life:0.1 million times)
Loop protection					N.P.D type:reversal connection protection, surge Absorption, load short-circuit protection A type: surge absorption
Ambient temperaturehumidity					During operation,storage:individually-30~+65( No freeze,no drew),During operation,storage Individually35~95%RH
Insulation impedance					50 MΩ above(DC500 megameter) between charging and housing
Withstand voltage					AC1000V50/60Hz 1 min between charging and housing
Temperature influence					Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence					Inside+/-15%rated supply voltagerange,at rated supply voltage value
Protection sturcture					IP66(IE specification)
Material					Nickel plated brass(ABS) Detection surface(lens)PMMA
