30t White Bridge Load Cell

Name: 30t White Bridge Load Cell
Brand: all-electronics-online.com
SKU: 838709835
Availability: InStock
Rating: 4.7 (132 reviews)

Price:	US $ 18-20/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B712M

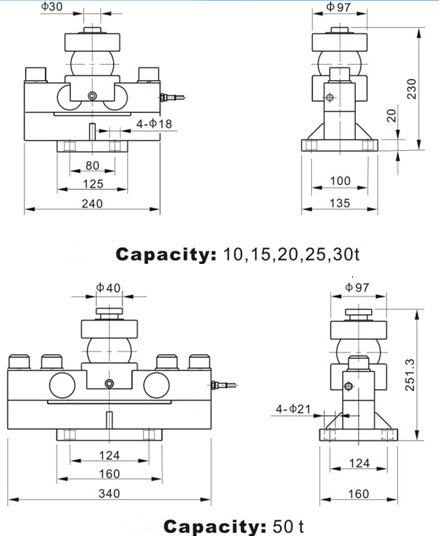

Capacity:	10,15,20,25,30,50t
Custom:	Size and Accuracy Could Be Customed
Pattern:	Single Point
Out-Wire:	5 Wires
Feature:	High Precision
Production Process:	Strain Gauge
Material:	Aluminum

Product Description

1. Name:10,15,20,25,30,50T high accuracy steel weighing bridge Load Cells
2. Material: Stainless steel or alloy steel

3. Capacity: 10,15,20,25,30,50T
4. Accuracy: C3
l Made of aluminum alloy.
l High accuracy, high side load tolerance
l Easy to install, IP65 protection
l Mainly used for electronic scales, truck scale and industrial weighing systems

5. Datasheet

Number	Specifications	/Technique
1	Capacity	10,15,20,25,30,50T
2	Accuracy class	C3
3	Rated output	2.0±0.005mV/V
4	Zero balance	±1.00%F.S.
5	Non-linearity	±0.03%F.S.
6	Hysteresis	±0.03%F.S.
7	Repeatability	±0.01%F.S.
8	Creep(30min)	0.02%F.S.
9	Temp.effect on output	0.02%F.S./10ºC
10	Temp.effect on zero	0.02%F.S./10ºC
11	Input impedance	770±5Ω
12	Output impedance	770±3Ω
13	Insulation	≥5000MΩ/100VDC
14	Recommended excitation	10V
15	Maximum excitation	15V
16	Compensated temp range	-10~50ºC
17	Operation temp range	-20~60ºC
18	Safe overload	120%F.S.
19	Ultimate overload	200%F.S.
20	Cable size	Φ6×12000mm
21	Material	Alloy or Stainless Steel
22	IP Class	IP67 / IP68

6. Instruction:

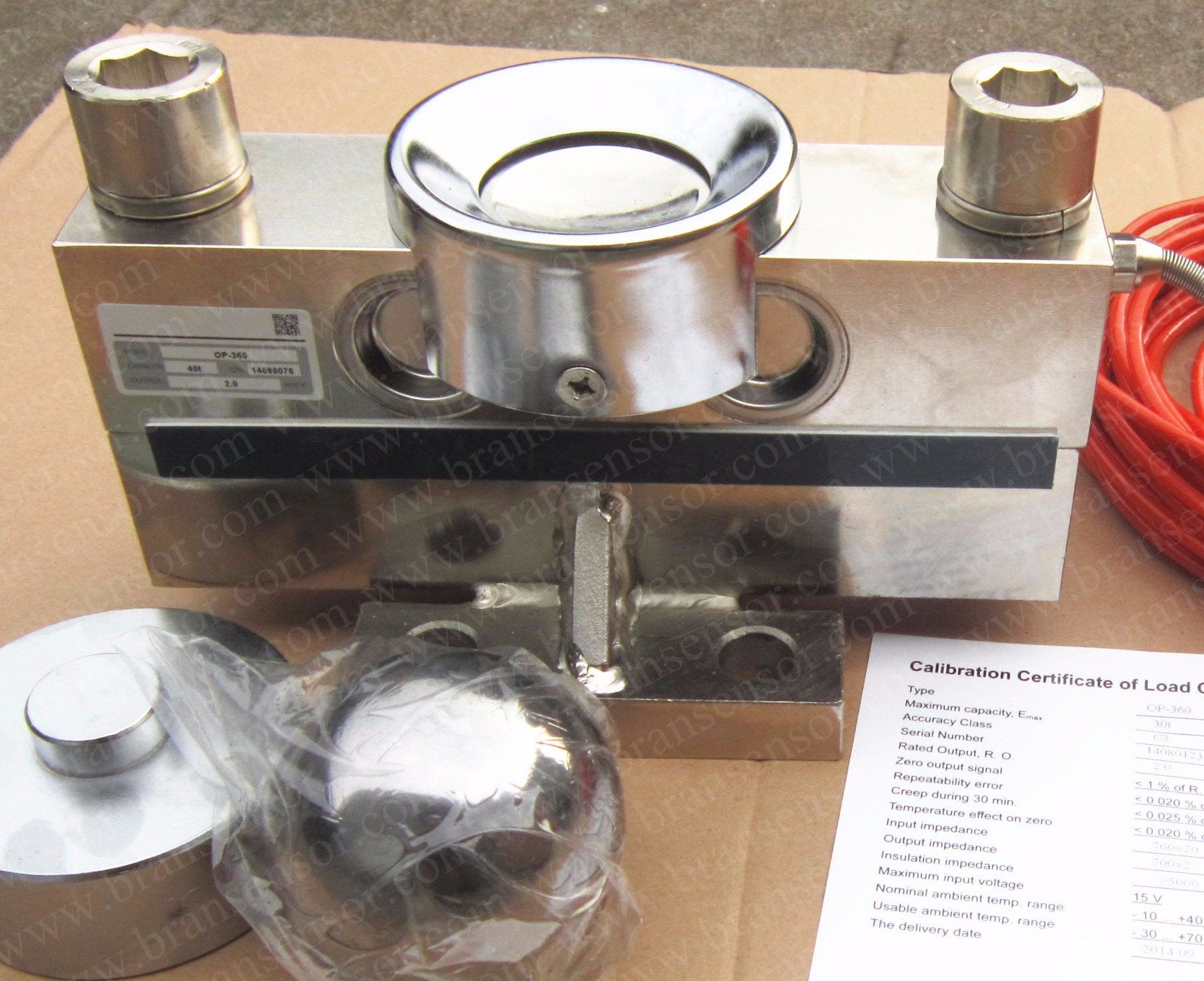

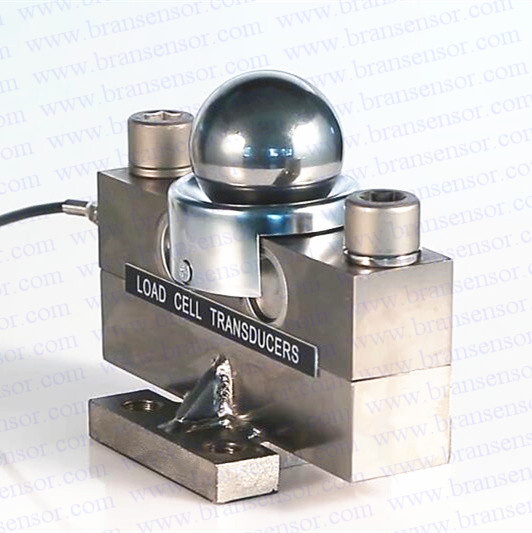

Double Ended Shear Beam Load Cell is constructed from high grade tool steel for resistance to heavy shock loads associated with truck weighing. It is electroless nickel plated for corossion resistance.

A high accuracy load cell/mounting accessory combination for large silo, tank, hopper or vessel weighing. It is an excellent solution for most high capacity applications, whether in harsh wash-down environments or hazardous areaswhere there is a risk of explosion.

The double shear beam load cell is manufactured from high strength stainless steel or alloy steel and available in capacities from 10,000kg to 50,000kg. Formore than 20 years, it has been known worldwide as a leading load cell for high capacity weighing, thanks in part to its fully welded and hermetically sealed design, giving protection to IP68.

7. Key Features:

This cell is designed to load from center through ball cup mechanism which helps for self restoring and self centering for improvement in accuracy.

It is offered with full mounting assembly for easy installation.

Trusted design for more than 20 years

Resistant to off-axis loading

Low profile design with substantial lift-off protection

Capacity range 2,000kg to 200,000kg

Fully welded and hermetically sealed stainless steel load cell, protected to IP68/IP69K

Need something special or a completely customized design? Contact BRANS to discuss your particular application requirements. www.bransensor.com
