30VDC High Quality DC Motor with Mounting Foot

Name: 30VDC High Quality DC Motor with Mounting Foot
Brand: all-electronics-online.com
SKU: 749794865
Availability: InStock
Rating: 4.7 (139 reviews)

Price:	US $ 16.9-40/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	80ZYT125-3038
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	80zyt125-3038
Voltage:	30VDC
Speed:	3000rpm
Power:	200W
Current:	<10A
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Type:	Zyt
Brand:	Sunrise Motor

Product Description

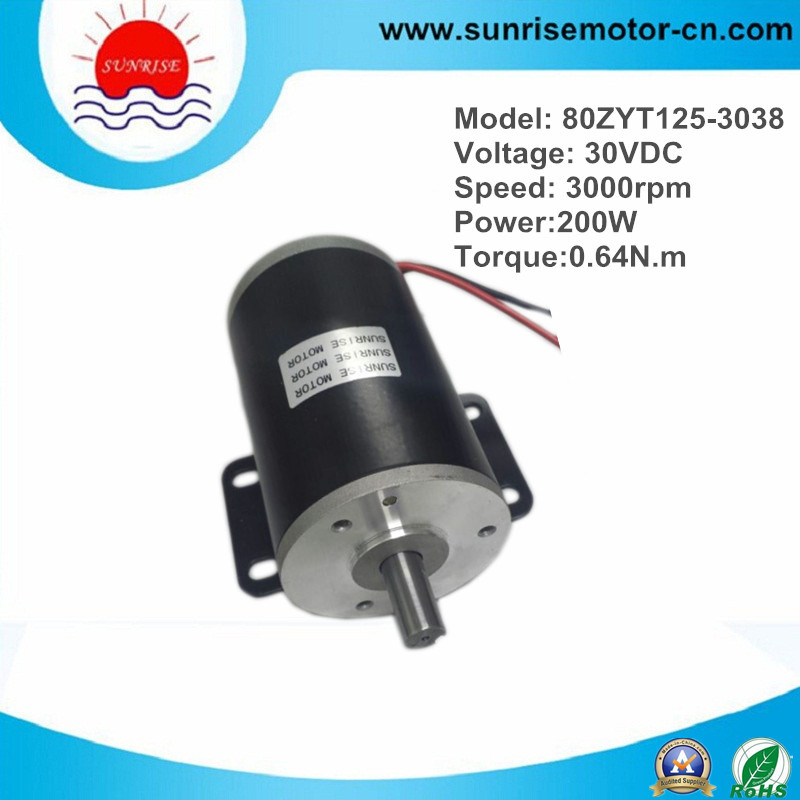

Permanent Magnet DC Motor
Model: 80ZYT125-3038
Voltage: 30VDC
Speed: 3000rpm
Power: 200W
Torque: 0.64n.m
Current: <10A

Motor with mounting feet.

We can also produce motor according to customer's requirements.
Motor can add encoder and gearbox.

Motor specifications:

Model	Voltage (V DC)	No Load		Rated Load			Length (mm)
Model	Voltage (V DC)	Current (A)	Speed (r/min)	Torque (N.m)	Current (A)	Speed (r/min)	Length (mm)
80ZYT125-3038	30	0.5	3800	0.64	9.5	3000	125

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
