30W 12V Constant Voltage Ce Bis Certificated Waterproof LED Driver

Name: 30W 12V Constant Voltage Ce Bis Certificated Waterproof LED Driver
Brand: all-electronics-online.com
SKU: 772460325
Availability: InStock
Rating: 4.6 (34 reviews)

Price:	US $ 4.53-4.74/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E30C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	30W Bis LED Driver
Output:	30W
Input Voltage:	220V
Output Voltage:	24V
Power Factor:	0.65
Efficiency:	85%
IP Rating:	IP 67
Certificates/Standards:	Bis Ce RoHS
Weight(Kg):	0.95
Dimensions(LWH):	1643225mm
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	Bis
Power Supply Voltage:	220V
Brand:	Neonpro

Product Description

30W 12V Constant Voltage CE BIS Certificated Waterproof LED Driver

1. Feature for 30W BIS LED Driver
*Fully sealed & Waterproof, IP67
*Constant voltage output, AC to DC Single Output Switching Power Supply
*High efficiency up to 90%, more electricity saving than regular power supply.
*Short circuit, overload protection
*2 years warranty.

2. Application for 30W BIS LED Driver
LED Signage
LED Decoration Lighting
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting
Used for LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc…

3. Specification for 30W BIS LED Driver

Model no.	LPS-12E30C
Input voltage	120 ±10%VAC 60 Hz
Max.Power	30W max
Output type	Constant voltage
Output voltage	12VDC ± 5%
Output current	2.5A max
Installation	Outdoor rainproof
IP rating	IP 67
Dimming	No
Built-in active PFC	No
Power factor	>0.65
Overload protection	105%-120% hiccup mode, auto-recovery
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~50'C
Cooling	Free air convection
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2 (18cm)
Weight(kg)	0.23kg
Certificates/standards	BIS CE RoHS

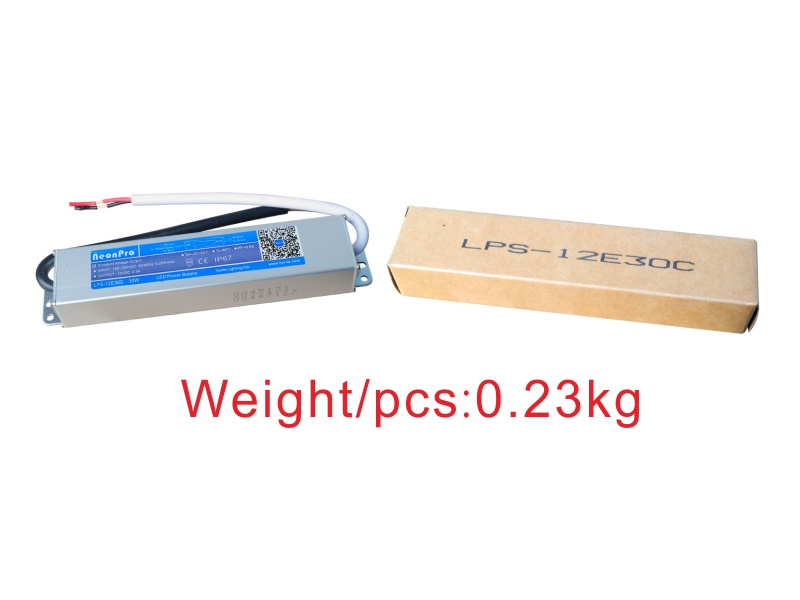

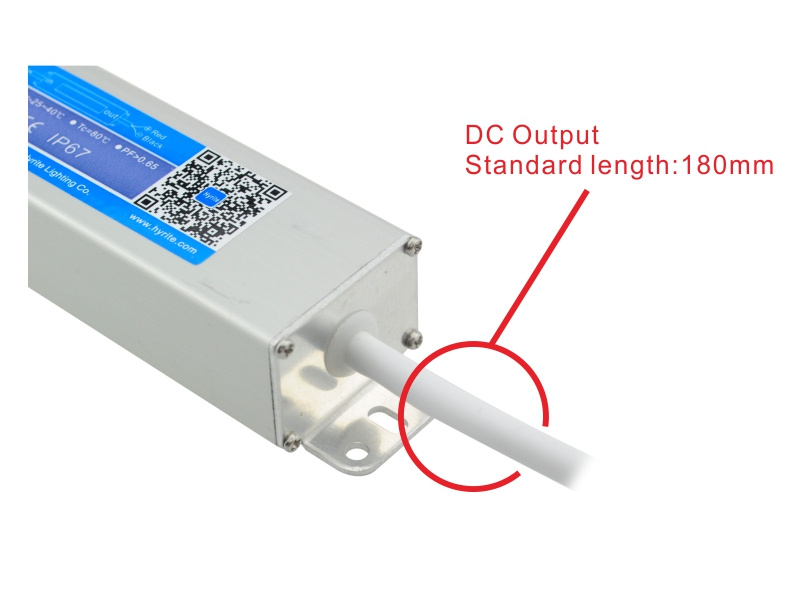

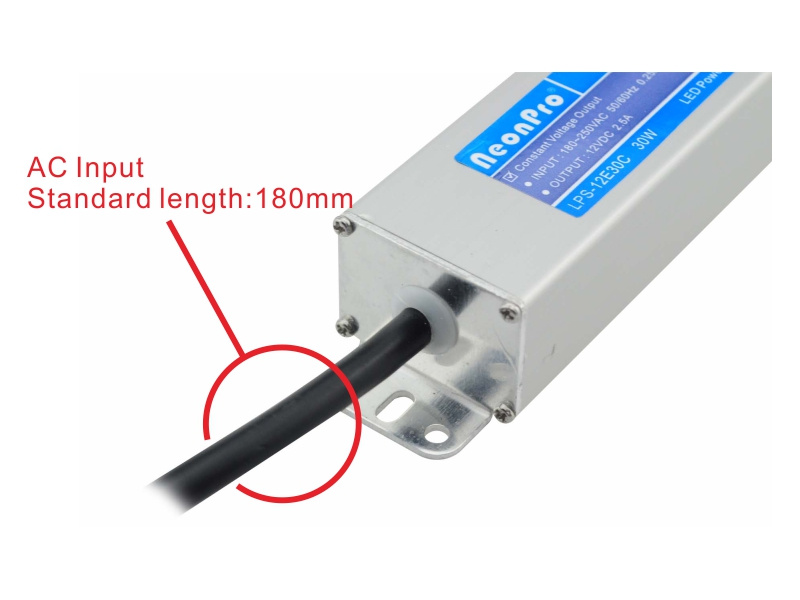

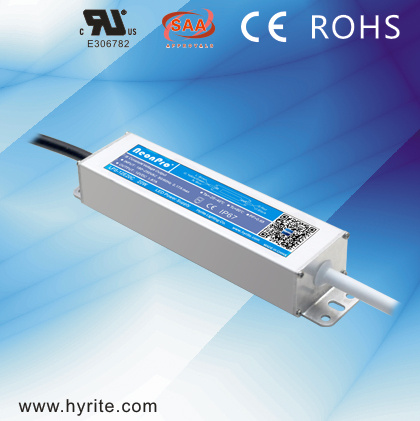

4. Product pictures for 30W BIS LED Driver:

5. Project/ Production/ Exhibition for 30W BIS LED Driver:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
