30W 24V Slim Size LED Driver for Light Box

Name: 30W 24V Slim Size LED Driver for Light Box
Brand: all-electronics-online.com
SKU: 783150245
Availability: InStock
Rating: 4.9 (77 reviews)

Price:	US $ 3.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TL-24E30
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-250
Output Voltage:	24V
Output Current:	1.25A
Size:	2851818mm
Dimming:	No
Wattage:	30W
Efficiency:	75%
IP Rating:	IP20
Cooling:	Free Air Convection
Weight(Kg):	0.2000
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC220-240V
Brand:	Neonpro

Product Description

30W 24V super slim indoor LED driver for cabinet lighting

1. Features of LED driver
-Super Slim body,special design for application with narrow space.
-Constant Voltage output
-For Indoor use only

2. Technical Specification of ED driver

Model no.	TL-24E30
Input voltage	220-240VAC 50Hz/60Hz
Max. power	30W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	75%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	1.25A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Connection input/output	Terminal
Weight(kg)	0.2000

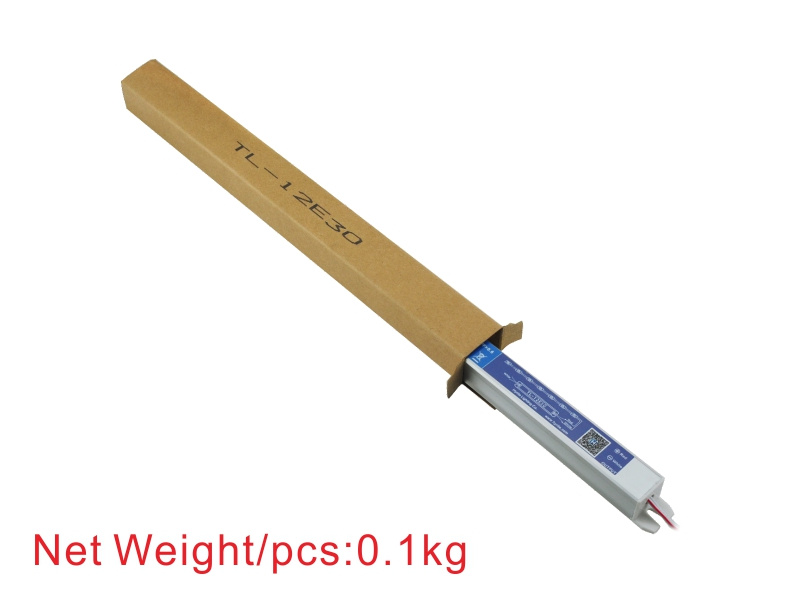

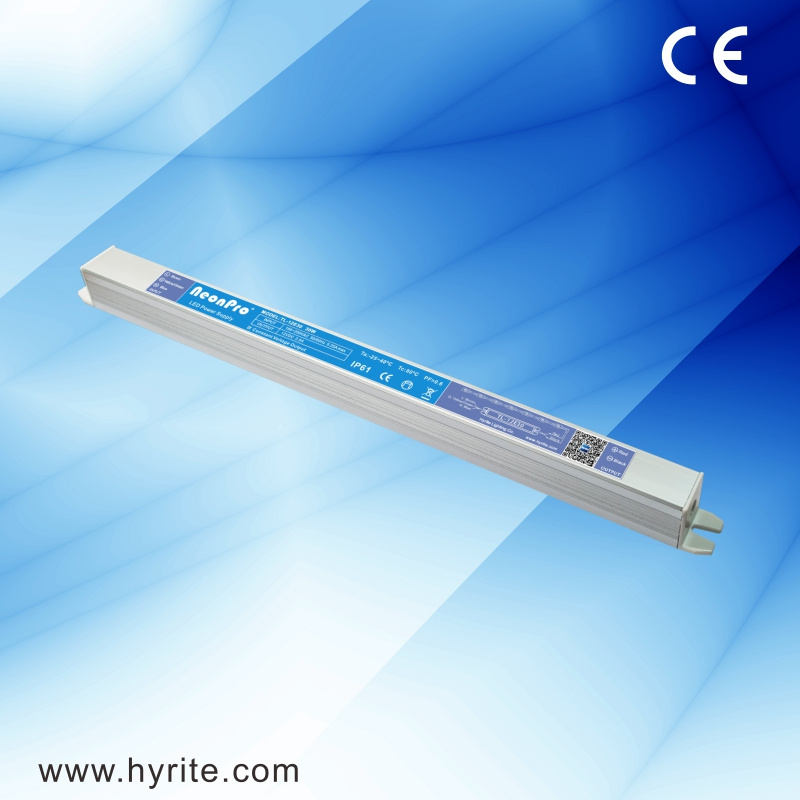

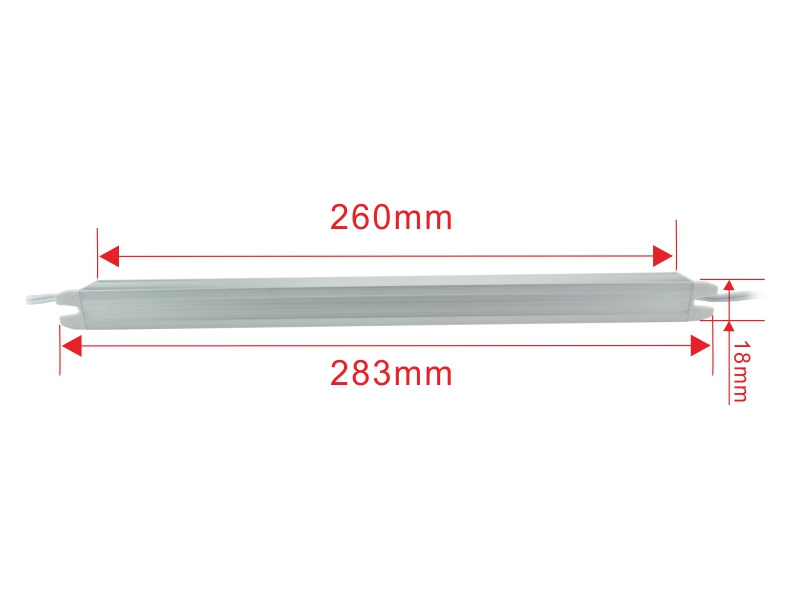

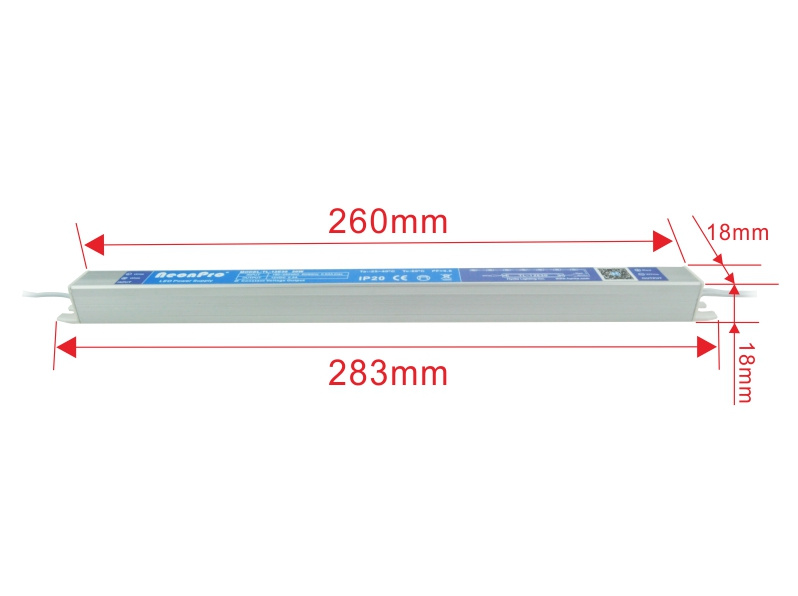

3. Detail pictures of LED driver

4. Application of LED driver
Slim LED light box
Display cabinet lighting

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.
