30W 5V 12V -5V Triple Output Switching LED Power Supply

Name: 30W 5V 12V -5V Triple Output Switching LED Power Supply
Brand: all-electronics-online.com
SKU: 730798572
Availability: InStock
Rating: 4.9 (49 reviews)

Price:	US $ 5.8-6.5/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

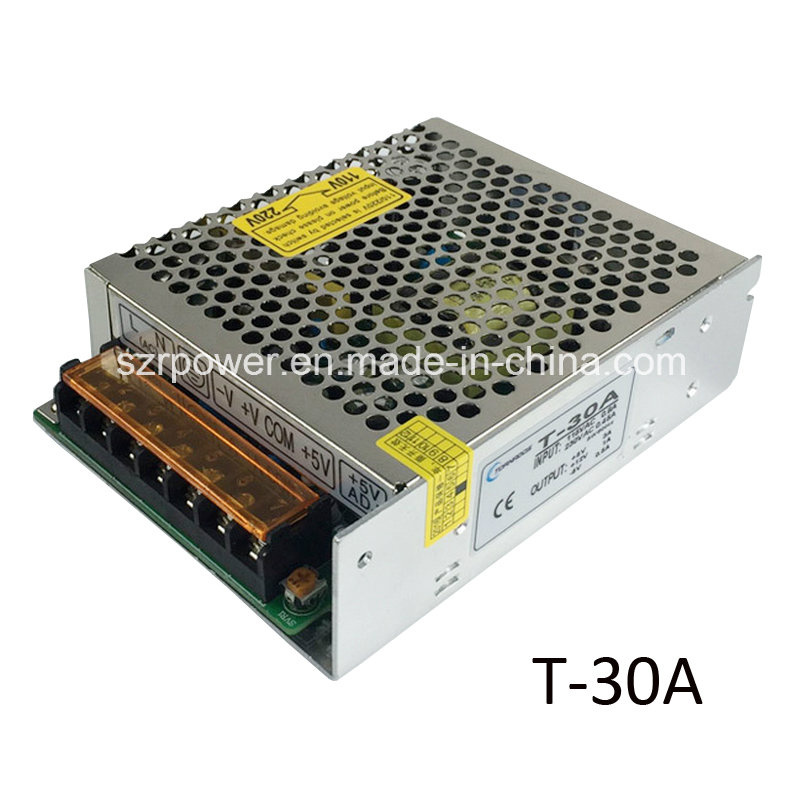

Prod Model:	T-30A
Efficiency:	90%
Output Current:	3A 1A 0.5A
Output Voltage:	5V 12V -5V
Protection:	Short Circuit/Over Load/Over Voltage
Input:	90V-130VAC
Sample Day:	a Week
Leadtime:	25 Days
Output Type:	Triple
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	RoHS
Brand:	OEM

Product Description

1. Product Description

Item	T-30A			T-30B
	CH1	CH2	CH3	CH1	CH2	CH3
Output voltage	5V	12V	-5V	5V	12V	-12V
Output voltage error(Note:2)	±2%	±2%,-6%	±2%,-10%	±2%	+2%,-10%	±6%
Rated output current	3A	1A	0.5A	3A	1A	0.5A
Output current rage	1-3A	0.1-1A	0.1-0.5A	1-3A	0.1-1A	0.1-0.5A
Wave and noise(Note:3)	50mVp-p	100mVp-p	50mVp-p	50mVp-p	100mVp-p	100mVp-p
Inlet stability(Note:4)	±0.5%	±1%	±1%	±0.5%	±1%	±1%
Load stability(Note:5)	±0.5%	±5%	±5%	±0.5%	±5%	±5%
Output power	30W			33W
Efficiency	70%			72%
Range for DC voltage	CH1;+10,-5%			CH1;+10,-5%
Input voltage range	85~132VAC/170~264VAC,47~63Hz;248~370VDC
Input current	0.8A/115V 0.45A/230V
AC inrush current	cold-start current 18A/115V 36A/230V
Leakage current	<0.5mA/240VAC
Overload proctection	105%~150% Type:Foldback: current limiting reset:auto recovery
Setup rise hold up time	200ms,50ms,30ms
Vibration	10~500Hz,2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal:1.5KvAC input and enclosure: 1.5KvAC output and enclosure:0.5KvAC
Isolation resistance	Input and output internal: Input and enciosure, Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10ºC~+60ºC,20%~90%RH
Size	129×98×38mm
Weight	0.4Kgs
Safety standards	Meet UL 1012 requirement(Not apply for the mark)
EMC standards	Mett FCC Part 15J Conduction class B

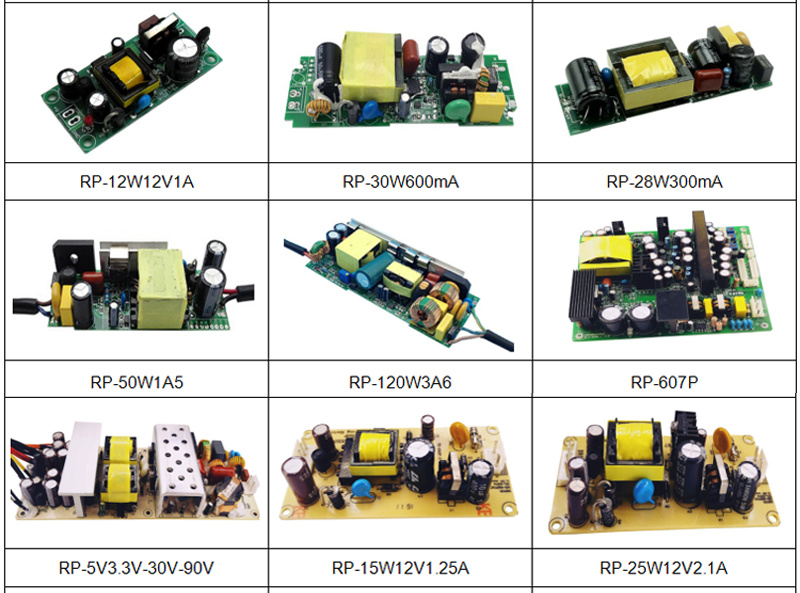

2. More products for your reference:

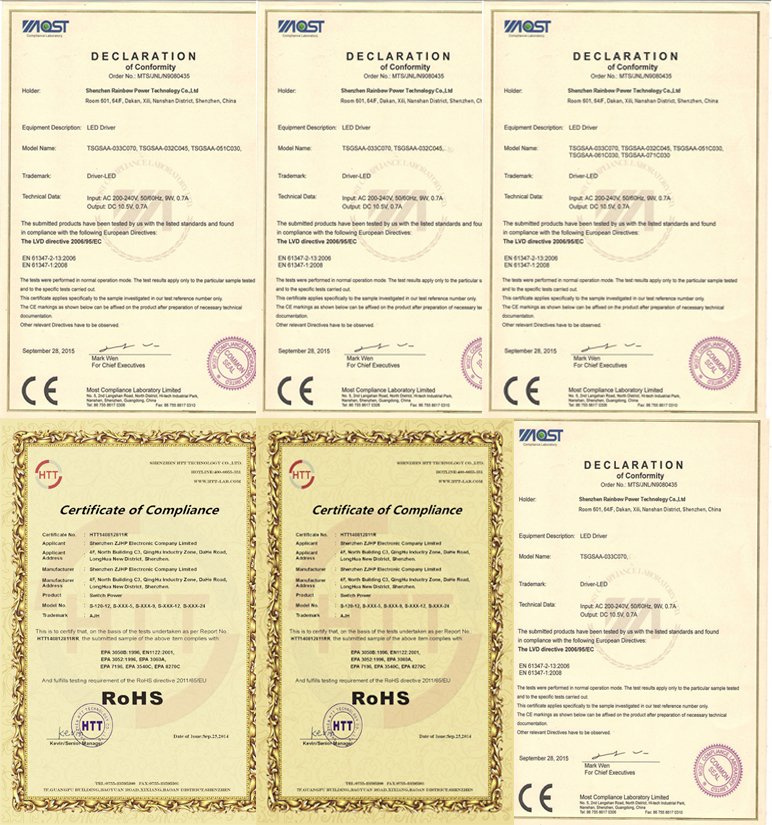

4. Certificate

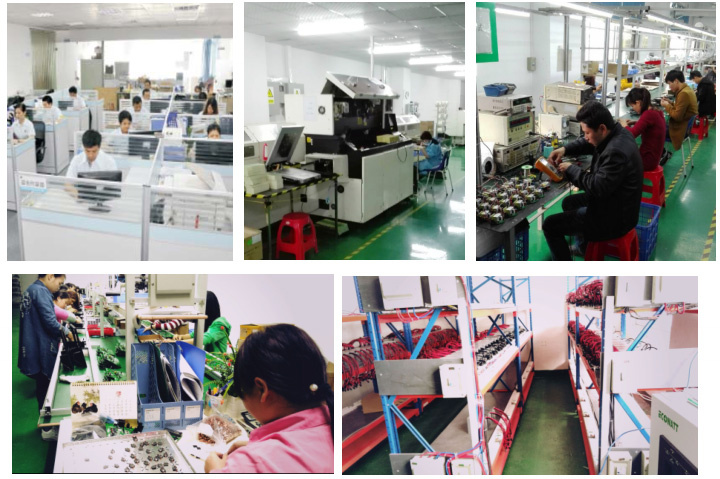

5. About Us:

6. FAQ

Shenzhen Rainbow Power Technology Co., Ltd is a professional manufacturer of Switching Power Supply for LED lighting projects, mechanical equipment, industrial automation, electronic technology, telecommunication, medical appliances and instrument meters etc.

Our main products: LED Driver, LED Power Supply, Switching Power Supply, LED Transformer, AC/DC Adapter etc.

We export to more than 30 countries, such as USA, Canada, Brazil, Columbia, Ecuador, Germany, France, Australia, Malaysia, HongKong, India, Egypt, Pakistan, Greece, UK and so on.

In order to ensure the stability and reliability of our products, Rainbow Power is equipped with many testing equipment for safety. Temperature, magnetic and EMI testing, automatic SMT machine and automatic solder machine etc., We have a team with well-experienced R & D Engineers then we are ready to design and produce your power supply.

Our mission is to provide Excellent quality, competitive price and more value-added service to our clients, all of these makes our core competitiveness get a far-reaching develop and prominent advance.

If you are interested in any of our products, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world.
