30W Constant Voltage Outdoor Waterproof LED Driver

Name: 30W Constant Voltage Outdoor Waterproof LED Driver
Brand: all-electronics-online.com
SKU: 740188055
Availability: InStock
Rating: 4.7 (129 reviews)

Price:	US $ 5.99-6.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-5E30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	30W
Input Voltage:	170-250V
Output Voltage:	5V
Output Current:	6A
Power Factor:	Low
Efficiency:	86%
IP Rating:	IP 67
Certificates/Standards:	CE SAA Saso
Weight(Kg):	0.28
Packing Information:	50PCS/ Carton, G.W15.5kg
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
In-Out:	AC to DC
Power Supply Voltage:	AC170-250V
Brand:	Neonpro

Product Description

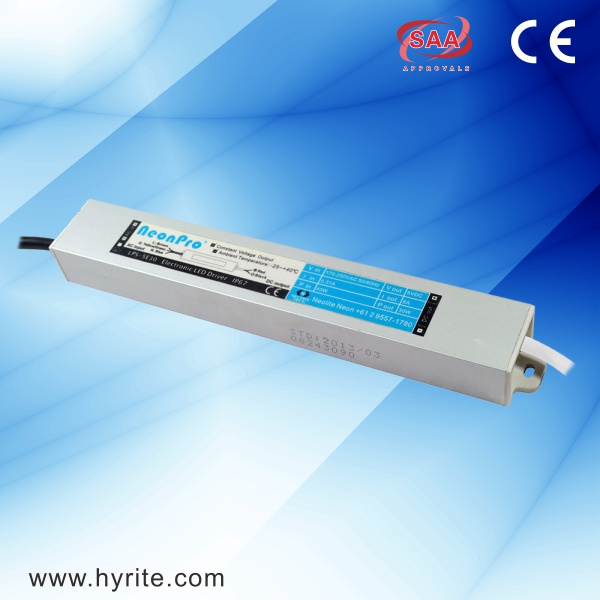

5V 30W IP67 170-250VAC Constant Voltage Outdoor Waterproof LED Driver

Features:
*External led power supply for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
*Seamless aluminum case, fully sealed & waterproof, IP67
*Constant voltage output
*100% burn-in test

Technical Specification of the LED Driver:

Model no.	FLPS-5E30, FLPS-12E30, FLPS-24E30
Model series	FLPS
Input voltage	185-265V 50/60Hz
Power	30W
Output type	Constant voltage
Dimming	Not dimmable
Power Factor	High PF>0.9
Power factor	≥0.9
Efficiency	80%
AC inrush current(max.)	65A@230VAC
Output voltage	5±0.5V, 12±0.5V, 24±0.5V
Output current	6.0A, 2.5A, 1.25A max
Overload protection	>130% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-30ºC~50ºC
Installation	Outdoor waterproof
IP rating	IP66
Cooling	Free air convection
Certificates/standards	CE
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2 (18cm)
Dimensions(LWH)	2133826mm
Weight(kg)	0.3300
Packing information	50pcs/carton 19kg

Applications of LED Driver
* LED module
* LED strip
* LED-neon tube
* Bar light
* Other signage lighting

Important Parameter of LED Driver:
* Store Temperature: -25~75° C
* Working Temperature: -25~40° C
* Work environment: Indoor or outdoor installations
* Waterproof Rating: IP67

Note:
*Payment Terms:T/T,L/C,Western Union
*Trade Term:FOB EXW CNF CIF
*Delivery:Express(DHL FedEx UPS EMS TNT);By Air/Sea
*Lead Time:1-2 days for in stock and 3-15 days for out of stock product
*OEM Service is welcome
*Certificate:CE ROHS

Shipping Method:

* Ocean or Air transportation
* International Express:DHL FedEx TNT UPS EMS etc.

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved
