| Prod Model: |
BK-G30 |
| Products Name: |
30W Fiber Packaging Box Laser Marking Machine |
| Power Supply: |
90-260V/50Hz-60Hz |
| Certificates: |
Ce FDA SGS ISO |
| Laser Source: |
Max/Ipg/Raycus |
| Marking Range: |
110*110mm/220*220mm/300*300mm |
| Warranty: |
2 Years |
| Operate System: |
Ezcad Software/Jcz Control Card |
| Cooling: |
Air Cooling |
| Marking Content: |
Bar Code, Two-Dimensional Code, Text ,Photo, Logo |
| File Formats: |
Plt, Pcw, Dxf, BMP,Shx, Ttf |
Product Description
30W Fiber Packaging Box Laser Marking Machine
What's the Portable Laser Marking Machine Datas? | Model | BK-G20/BK-G30/BK-G50/BK-G100 |
| Laser | 20W/30W/50W/100W |
| Product Name | 30W Fiber Packaging Box Laser Marking Machine |
| Laser Wavelength | 1064nm |
| Engraving Line Speed | ≤7000mm/s |
| Minimum line width | 0.01mm |
| Minimum Character | 0.15mm |
| Power Supply | 90-260V/50Hz-60Hz |
| Marking Range | 110*110mm/200*200mm/300*300mm(Optical) |
| Engraving Depth | ≤0.3mm/≤0.5mm/≤1.0mm(according to your demand) |
| Operating software | EZCAD/JCZ software(Optional language/Using simple) |
| Operating System | Windows Systems |

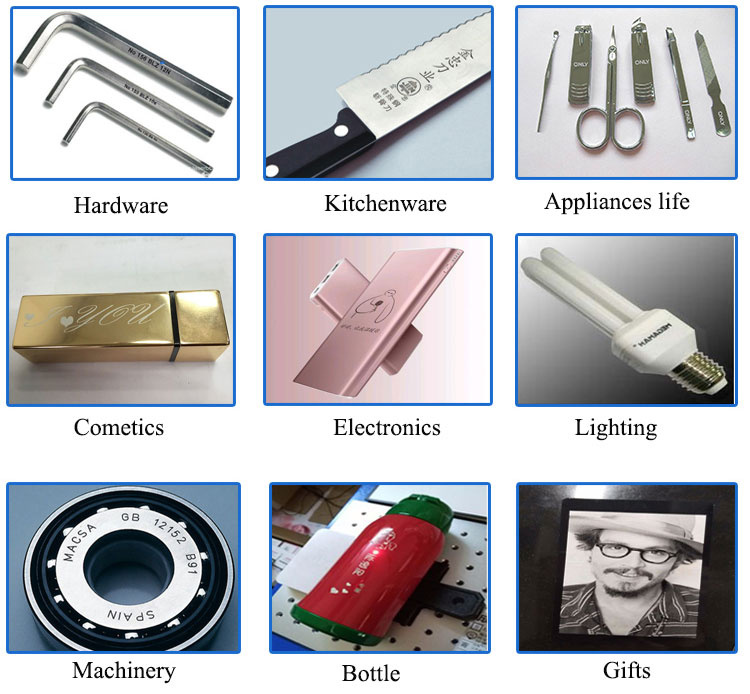

What industries can be applied to?
1. Sheet metal | 6. Electronic | 11. Elevator |
2. Automotive parts | 7. Aerospace | 12. Lighting lamps |
3. Metal carfts & Toys | 8. Hardware | 13. Advertising |
4. Furniture | 9. Kitchenware | 14. Fitness equipment |
5. Medical/Food Packing | 10. Agricultural | 15. watches & glassware |
What materials can be marked?
Material | CO2 Portable Laser Machine | Material | Fiber portable Laser Machine |
Wood | √ | Aluminum | √ |
Acryic | √ | Stainless Steel | √ |
Fabric | √ | ABS | √ |
Glass | √ | Brass | √ |
Leather | √ | alloy | √ |
Bamboo | √ | Metal | √ |
Cloth | √ | Copper | √ |
plastic | √ | plastic | √ |
EZCAD software runs on windows platform, Chinese / English interface, compatible with Autocad, Coreldraw, Photoshop and other software file formats, such as PLT, PCW, DXF, BMP and so on, and also can use SHX and TTF fonts directly
Hangzhou Nuoen Precision Instrument & Equipment Co.,Ltd.(Trade company)
Add: No. 8, Ning'an Road, Xiaoshan Economic Development Zone, Hangzhou City, Zhejiang, China(Trade Company)
Zip Code:311201
Box laser marking machine Hs code:8456110090
The Advantages About Our Company
1. 12 years Working Experiences.
2. It sells 1200 Sets a year.
3. Max Laser Source is the best in China(long use time).
4. Other Products:Laser engraving machine/laser printing machine/laser cutting machine/laser welding machine/laser cleaning machine.
5. 2 years guarantee. Less maintenance. High evaluation feedback.
6. The marking machine price-quality is very high.
7. Our machine used around the golbe in a large of markets, such as Germany, American,Korea, France, Italy, India, Brazil, Arab, Egypt, etc.
Packing
E: We have 3 layers package.For the outside, we adopt wood craft case.In the middle, the marking machine is covered by foam.For the inside layer, the Portable machine is covered by thickening plastic bag for waterproof.
Transportation
E: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation.We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Installing the Laser marking machine
E:We will send detail training video,95%customers can learn by themselves.
How can I do if the Laser marking machine goes wrong?
E: If confronted with such problems, please contact us ASAP and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Main business: Laser marking machine, laser cutting machine, laser welding machine, Laser cleaning machine and a series of testing machine.
Our products exported to Japan, South Korea, Spain, Italy, Brazil, Chile, Jordan, India, Ukraine and other countries.
We have CE ISO FDA SGS Cerficate about our laser products.
We will serve better service for our company.
Welcome to join us.
