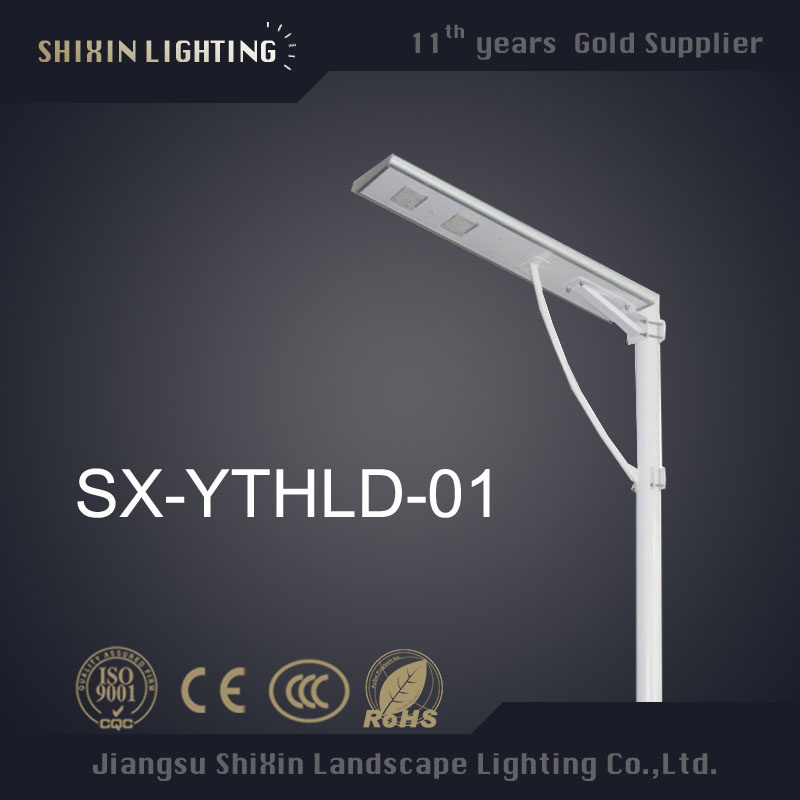

30W Integrated Solar Street Light with Motion Sensor (SX-YTHLD-01)
Price: |
US $ 300-400/Piece |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
SX-YTHLD-01 |
Height: |
5-15m |
Flange: |
400*400 |
Tc: |
3500-6000k |
Material: |
Aluminum Stainless Steel |
Guarantee: |
3-5years |
Apply: |
Street, Road |
Light Source: |
LED Lamp |
Lamp Body Material: |
Aluminum Alloy |
Light Type: |
Solar |
Color Temperature: |
Warm White |
Power: |
≥30W |
Technics: |
Painted Matte |
Illumination Time: |
8h |
Cell Type: |
Ni-MH Battery |
Charging Time (',H): |
6 |
Usage: |
Street |
IP Rating: |
IP65 |
Certification: |
RoHS |
Voltage: |
12/24V |
With Light Source: |
With Light Source |
Product Description

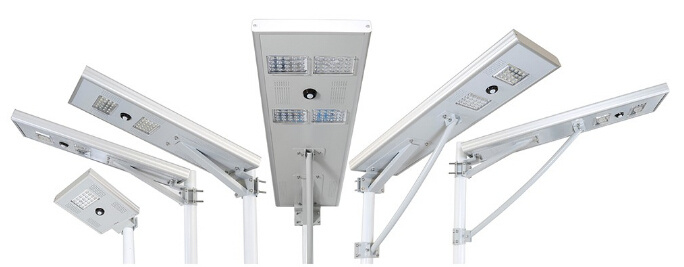

Product details
Working Mode | Movement Sensor | Sensing distance is 6-12m |
Working time | The lamp automatically turn on after sunset,and off when sunrise |
Default Working Mode:During working time,when there are movements detected,the lamp switches to 1005 capacity when movements gone,the lamp turns to 30% capacity to save power |
 | LED Light Source Adopting high power chip Bridgelux LEDs,high reliability outdoor applications -45mil Chips -Uo to 130lm/w -CRI>75Ra -50000h life sapn -Wide color temperature options Low color shifting and low light decay |
Solar panel -Monocrystalline Silicon Type -Top grade solar sells -Up to 21% charging efficiency -25years life span |  |
 | System Controller -Top brand and high reliability -IP67 aluminum case -Intellectual functions and multi-time dimming control |
Motion Sensor IP65 Waterproof Sensor,works with built-in indicator light,working conditions of the system can be easily checked |  |
 | Battery LifePO4 Lithium Battery adopted 12hours per night,3-5nights power backup;2000times life cycle |
Light Power | 8w | 12w | 15w | 20w | 25w | 30w | 40w | 50w | 60w |
Light Module Qty | 1pc | 2pcs | 4pcs |
PV Module(Watt) | 15 | 18 | 30 | 40 | 50 | 60 | 65 | 70 | 80 |
Battery Capacity(Ah) | 6 | 8 | 10 | 18 | 21 | 24 | 30 | 36 | 42 |
Mounting Height(m) | 3-4 | 3-4 | 4-5 | 5-6 | 5-6 | 6-7 | 6-8 | 7-8 | 7-10 |
Featureslighting source:LED
Solar panel:Monocrystalline or polycrystalline,10years life time
Storage battery:high efficiency colloid battery,free maintenance
Service life:5years
Controller:time control and light control,preventing from overcharge and overdischarge,having output short circuit protection.
Ambient temperature:-30~+60
Lighting time :subject to exact configuration power,normal over 8hours.
Height:5m-8m
Solar energy light brief introduction
1.Using the microcomputer intellective controller to transfer the light energy to electrical energy .Easy to install since no wiring & trenching,energy conservation and environmental protection
2.The microcomputer intellective controller is composed by advanced special-purpose integrated circuit,high conversion efficiency,prevent over-load &over-discharge,Output short circuit protection,extend work life, on the safe side,convenient usage.
3.High effective Non-maintaining accumulator cell,strong storage,durable usage.
4.Automatic track type time controller,Automatically adjust the working time along with different illumination time in various seasons.For extending the work time energy conservation intellective controller will automatic shut-off the light at Deep-night.
FAQ1:How many cycles full charge&discharge about your battery?
In 50% discharging deepness, it can be cycled for 1,200 times; in floating charging and discharging status, it can be cycled for 5000~6000 times.
2.How to Choose the System Voltage 12V or 24V or for normal street Light ?
We can design the System for 12v or 24v for solar street Light or 220-380V for normal street light .
3.What's the main difference between mono and polycrystalline solar panel?
production process and cost. Polysilicon technology is more mature since it is an early technology compared with Monosilicon.
4.The controller of your solar street light has dual time control function?
our solar charge controller is designed with dual time control function, you can set up the lighting time and divide it into two parts, like 12 hours (6 hours full power lighting + 6 hours half power lighting)
