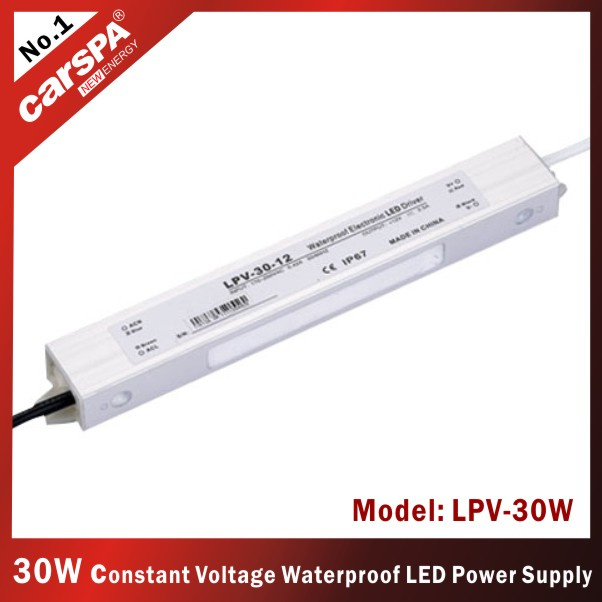

30W LED Constant Voltage Waterproof Switching Power Supply
| Price: |
US $ 9/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LPV-30W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
30W |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
1 - 50W |
| Connection Mode: |
Series Switching Power Supply |
| Certification: |
RoHS |
| Input Voltage: |
170~264vac, 235~373vdc |
Product Description
LED Constant Voltage Waterproof Switching Power Supply 30W
Features:
1. Constant voltage style power supply
2.170~264VAC AC input
3. Small volume, low weight, high efficiency
4. Protections: Short circuit/over load/over voltage/over temp
5. Cooling by free air convection
6. Fully encapsulated with IP67 level
7.100% full load burn-in test
8.2 Year warranty
| LPV-30W |
| Model | LPV-30-12 | LPV-30-24 | LPV-30-36 |
| OUTPUT | DC voltage | 12V | 24V | 36V |
| Voltage tolerance | ± 1% | ± 1% | ± 1% |
| Rated current | 2.5A | 1.3A | 0.8A |
| Current range | 0~2.5A | 0~1.3A | 0~0.8A |
| Rated power | 30W | 31.2W | 28.8W |
| Ripple& noise | 100mvp-p | 100mvp-p | 150mvp-p |
| INPUT | Voltage range | 170~264VAC, 235~373VDC |
| Frequency | 47~63Hz |
| AC current | 0.42A/230VAC |
| Efficiency | 78% | 80% | 82% |
| Inrush current | cold start 30A/230VAC |
| PROTECTION | Leakage current | < 0.5mA/240VAC |
| Over load | rated output power 105%~135%start over load protection |
| protection type: hiccup mode, auto-recovery after fault condition is removed |
| Over voltage | 15.6~17.8V | 30.6~33.2V | 42.6~44.2V |
| protection type: hiccup mode, auto-recovery after fault condition is removed |
| Over temperature | when temperature of transistor inner node is over 150º C, start over temperature protection |
| protection mode: cutoff output, auto-recovery after temperature goes down |
| ENVIRONMENT | Working temp. humidity | -10º C~+60º C, 20%~90%RH |
| Storage temp. humidity | -20º C~+85º C, 10%~95%RH non condensing |
| SAFETY | Withstand vibration | 10~500Hz, 2G 10min/1cycle, period for 60minutes, each axes |
| Withstand voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
| Isolated resistance | I/P-O/P, I/P-FG, O/P-FG: 100M ohms/500VDC |
| FITSTANDARDS | Safety standard | Fit UL1012, IP67 protect level |
| EMC standard | Fit EN55022, CLASSA |
| OTHERS | Dimension | 222*30*20mm (L*W*H) |
| Weight/packing | 0.25kg/80pcs/21kg/0.033 m³ /1.18CUFT |
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25º C of ambient temperature. |
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. |
3. Tolerance: includes set up tolerance, line regulation and load regulation.
|
