30W Programmable Constant Current LED Power Supply

Name: 30W Programmable Constant Current LED Power Supply
Brand: all-electronics-online.com
SKU: 816336475
Availability: InStock
Rating: 4.5 (58 reviews)

Price:	US $ 7.04-11.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD030-1SCF691WD-700
Output Power:	30W
Dimming:	0~10V, PWM, External Resistor, Clock
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	108~305VAC
Pack Sealing Size:	136X46X31 mm
Brand:	Fsp-Powerland

Product Description

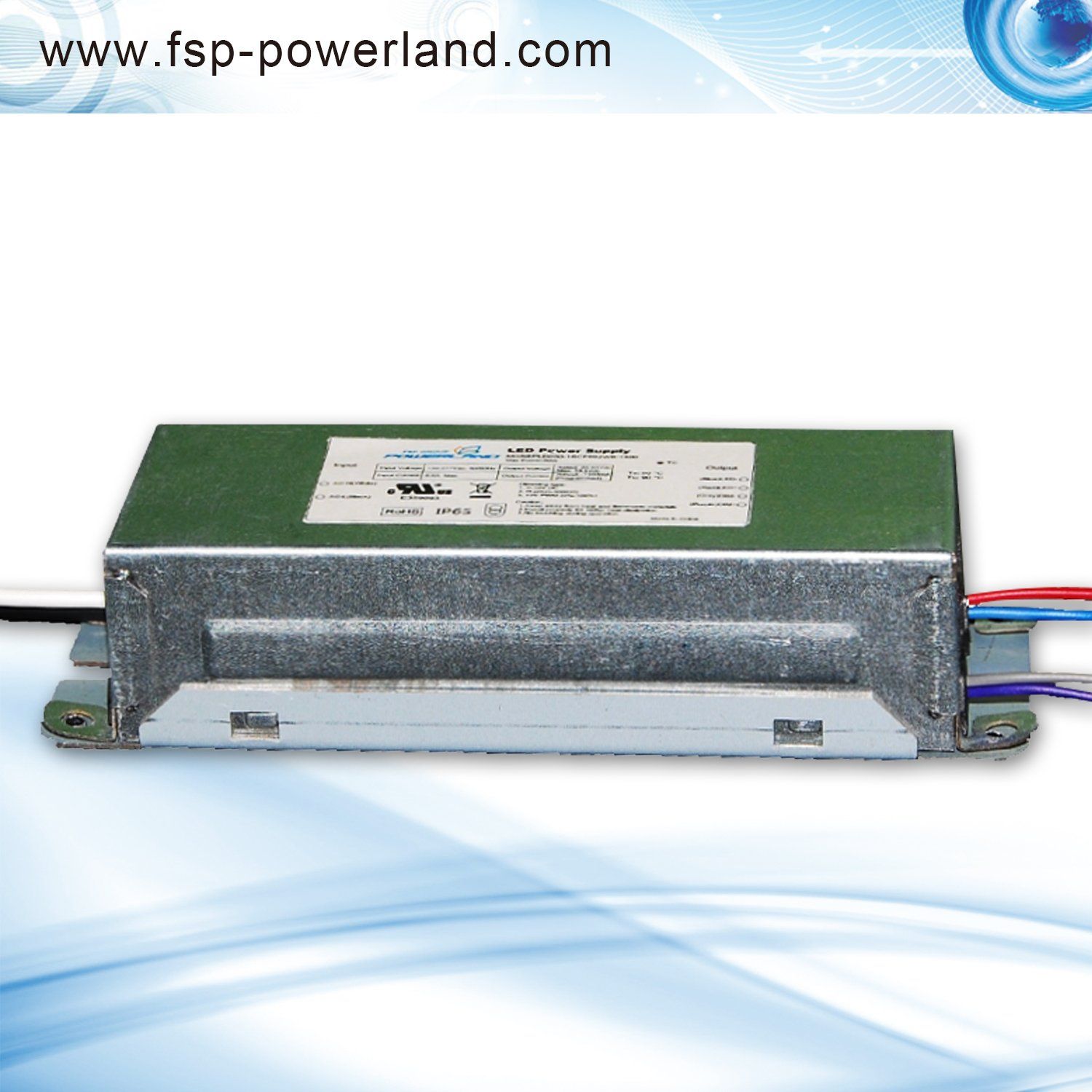

30W Programmable Constant Current LED Power Supply

PLD030-1SCF691WD-700 offers digital programmable drivers with wide-range adjustable output current and 108~305Vac universal input.

The output current of this series are programmable up to 0.7A, and designed for 0-10V/PWM/Rset/Clock dimming applications.

Applications
Outdoor & indoor LED lights
LED lights with flexible current settings
Downlights, high bay and low bay lights, spot lights, LED panels

Features
Ultra-deep dimming down to 1%, with dimming-off control
> 50,000 hours lifetime at 75ºC Tcase
> 5 years warranty at 75ºC Tcase
Constant current output
Output current programmable
Compatible with 0(0.1)-10V, PWM, external resistor, clock dimming
Universal input voltage: 108~305Vac
Safety according to UL1310 & EN61347-2-13
UL Class 2 Output
EMC according to FCC Part 15 Class A
Lightning, OVP, SCP, & Open Circuit Protection

Electrical Specifications

Model	PLD030-1SCF691WD-700
Output Voltage	20~50V
Output Current	350~700mA
Dimming	0~10V, PWM, External Resistor, Clock
Current Programmable	Yes
Output Power	30W
Max. Current Ripple	±40%
Voltage Range	108~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	0.4A
Max. Input Power	37W
Power Factor	>0.95 @ 120Vac & 80~100% full load, >0.90 @ 277Vac & 80~100% full load
Efficiency	85%
Max. Open Circuit Voltage	59.5V
THD	<20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp & Wet, and Type TL
Working Temperature	-20~+50ºC
Max. Case Temperature	90ºC
Surge Protection	Line to Line 1kV
Agency Approbations	UL1310 Class 2
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class A
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	136x46x31 mm (5.35x1.81x1.22 inch) Metal Case
Mounting Length	126 mm (4.96 inch)
Overall Length	136 mm (5.35 inch)
Weight	0.21 kg (0.79 lb)
Life Time	>50,000 hours @ full load, 75ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
