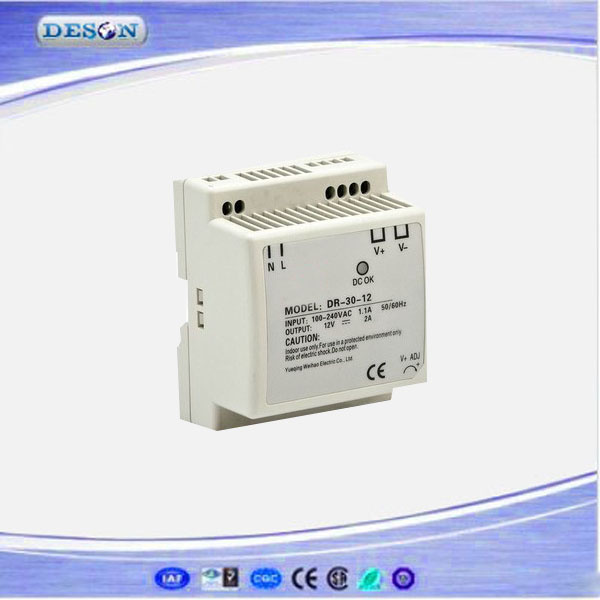

30W Single Output DIN Rail Switching Power Supply

Prod Model:	DR-30
Power:	30W
Input:	85 ~ 264VAC 120 ~ 370VDC
Output:	5V/12V/24V
Size:	78X93X56mm
Weight:	0.27kgs
Output Type:	Single
Warranty:	2 Years
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	30W
Brand:	Deson
Energy Transmission:	Switching Power Supply

Product Description

30W Single Output Din Rail Switching Power Supply

1.Universal AC Input / Full Range
2.Installed on DIN rail TS35/ 7.5 or 15
3.Protection : short circuit/Overload/Over voltage/ Over temperature
4.Cooling by free air convection
5.100% full load burn-in test
6.Din Rail Installation
7.Isolation Class 2
8. 2 years warranty


Product Description


MODEL		DR-30-5	DR-30-12	DR-30-15	DR-30-24
OUTPUT	DC VOLTAGE	5V	12V	15V	24V
	RATED CURRENT	3A	2A	2A	1.5A
	CURRENT RANGE	0 ~ 3A	0 ~ 2A	0 ~2A	0 ~ 1.5A
	RATED POWER	15W	24W	30W	36W
	RIPPLE & NOISE (max.)	80mVp-p	120mVp-p	120mVp-p	150mVp-p
	VOLTAGE ADJ. RANGE	4.75 ~ 5.5V	10.8 ~ 13.2V	13.5 ~ 16.5V	21.6 ~ 26.4V
	VOLTAGE TOLERANCE	±2.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±1.0%	±1.0%	±1.0%	±1.0%
	LOAD REGULATION	±1.0%	±1.0%	±1.0%	±1.0%
	SETUP, RISE TIME	100ms, 30ms/230VAC 100ms, 30ms/115VAC at full load
	HOLD TIME(Typ.)	100ms/230VAC 30ms/115VAC at full load
INPUT	VOLTAGE RANGE	85 ~ 264VAC 120 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	74%	81%	82%	83%
	AC CURRENT	0.88A/115VAC 0.48A/230VAC
	INRUSH CURRENT(max.)	COLD START 15A/115VAC 30A/230VAC
PROTECTION	OVERLOAD	105 ~ 160% rated output power
		Protection type : Constant current limiting,recovers automatically after fault condition is removed
	OVER VOLTAGE	5.75 ~ 6.75V	13.8 ~ 16.2V	17.25 ~ 20.25V	27.6 ~ 32.4V
		Protection type : Shut down o/p voltage,re-power on to recover
ENVIRONMENT	WORKING TEMP.	-20 ~ +60ºC (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20 ~ +85ºC , 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/ºC (0 ~ 50ºC)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	Design refer to UL60950-1,TUV EN60950-1,EN50178
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
	EMI CONDUCTION & RADIATION	Compliance to EN55022 (CISPR22) Class B
	HARMONIC CURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN61000-4-2,3,4,5; ENV50204, EN55024, Light industry level, criteria A
OTHERS	MTBF	441.5K hrs min. MIL-HDBK-217F (25ºC)
	DIMENSION	78*93*56mm (L*W*H)
	PACKING	0.27Kg; 48pcs/14Kg/1.02CUFT
