310VDC 2000rpm 1.8n. M High Voltage Brushless DC Motor with Driver

Name: 310VDC 2000rpm 1.8n. M High Voltage Brushless DC Motor with Driver
Brand: all-electronics-online.com
SKU: 787001545
Availability: InStock
Rating: 4.7 (41 reviews)

Price:	US $ 160.8-205/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	100BL3A95-30025
Model:	100bl3a95-30025
Voltage:	310VDC
Rated Speed:	2000rpm
Rated Torque:	1.8n.M
Rated Current:	1.5A
Power:	368W
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Shunt
Structure And Working Principle:	Brushless
Type:	BLDC
Certification:	SGS
Brand:	Sunrise Motor

Product Description

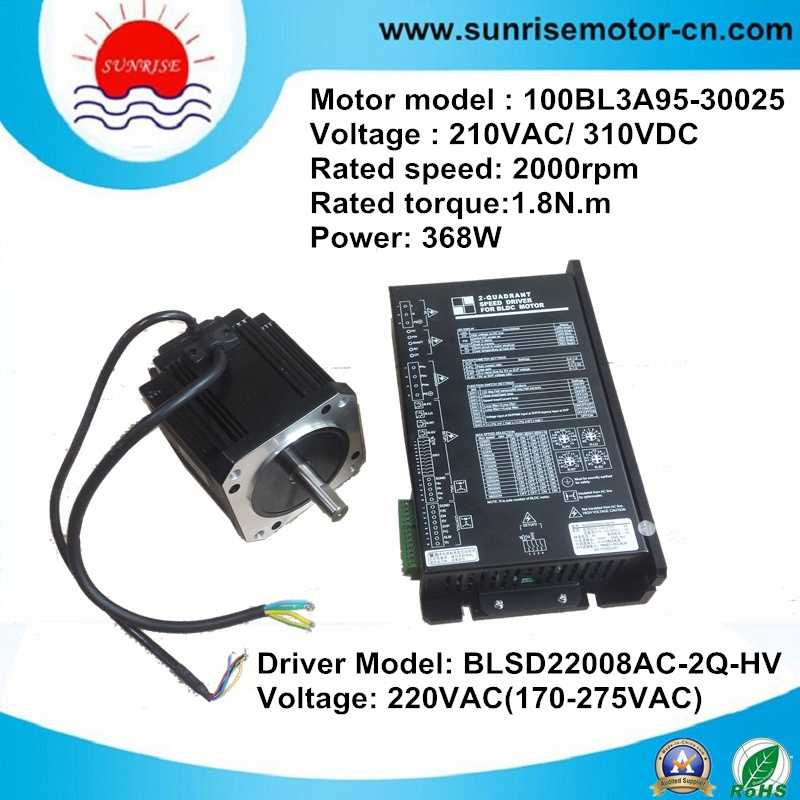

Motor model: 100BL3A95-30025
Voltage : 210VAC/ 310VDC
Rated speed : 2000rpm
Rated torque: 1.8N.m
Rated current: 1.5A
No-load speed: 2500rpm
Peak torque: 5.4N.m
Peak current: 4.5A
Ke(RMS): 120V/Krpm
Number of poles: 8

Motor specifications:

Model	Voltage (V DC)	No Load		Rated Load			Length (mm)
Model	Voltage (V DC)	Current (A)	Speed (r/min)	Torque (N.m)	Current (A)	Speed (r/min)	Length (mm)
100BL3A95-30025	310V	5.4	2500	1.8	1.5	2000	95

Remark:
1: We can also manufacture products according to customer's requirements.
2. Motor can add gearbox and encoder.

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
