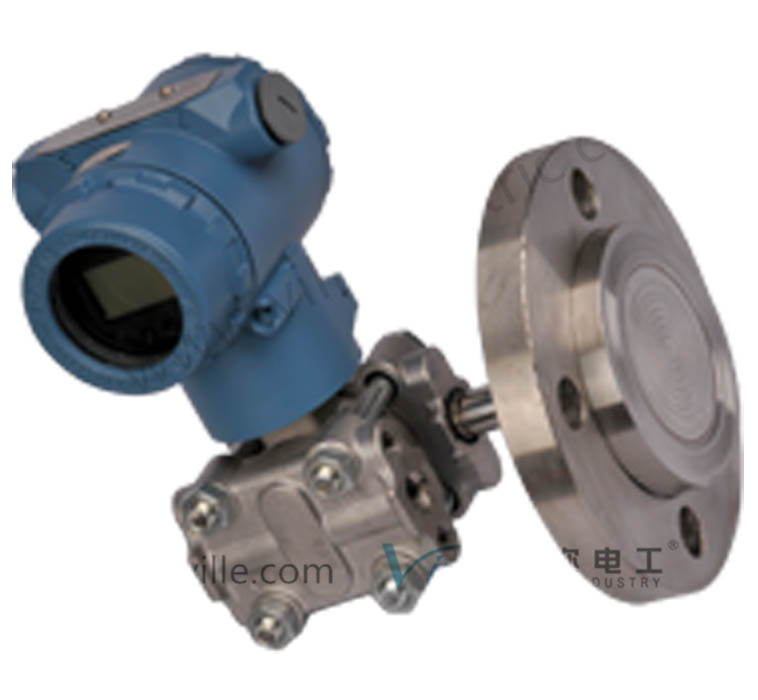

3151lt Flange Type Liquid Level Transmitter
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
3151LT series |
| Accuracy Grade: |
0.5;1.02.5 |
Product Description
Application
3151LT flange type liquid level transmitter adopts advanced-technology high-accurate compact smart sensor, to compensate temperature and static pressure with digital compensation technology which improves measuring accuracy and decreases temperature drift. With long-term stable performance, reliable and strong self-diagnose capacity which makes it popular among transmitter market. 3151LT flange type liquid level transmitter can avoid contact between medium and isolation diaphragm which is applicable to the following occasions: 1, when medium is corrosive to transmitter joint and sensor; 2, when high-temperature medium has to be separated from transmitter; 3, when medium is mixed with suspended solids or high-viscosity which may block transmitter joint and pressure chamber; 4, when medium from pressure tube is easy to solidify or condensate; 5, when change medium which needs to clean without mixture; 6, when clean environment is required without pollution. Measuring range: 0-6kPa~10MPa With various structure materials, remote device is welded which is reliable, liquid-filled cavity is with low-volume which reduces temperature influence, filling can be general silicon oil or high-temperature silicon oil based on requirements. For corrosive medium, isolation diaphragm is required.
Technical Parameters Output signal: 4~20mAoutput with HART® protocol digital signal(two-wire system)
Power supply: Outside power24V DC, (power range 12V~45V)
Installation: Explosion-proof dCT5, intrinsic safety iaCT5
Drift features: Range upper and lower limit shall not exceed range limit after positive and negative drift. Maximum positive drift is 0.975URL, maximum negative drift is-URL at minimum range.
Temperature range: medium temperature -40~104ºC, storage temperature -40~85ºC, working temperature -40~85ºC/-20~70ºC (with digital head)
Relative humidity: 0~100%
Damping: time constant within 0.2~32.0S is adjustable
Start time: 3S, no need to preheat
Performance: under standard test conditions like without drift, 316stainless steel isolation diaphragm etc.
Model
3151LT | Liquid Level Transmitter |
| code | Range |
3 | 0-0.12~7.5 kPa |
4 | 0-0.40~40 kPa |
5 | 0-2~200 kPa |
6 | 0-7~700 kPa |
7 | 0-21~2100 kPa |
8 | 0-70~7000 kPa |
| code | Output |
E | 4~20 Ma,with HART protocol digital signal |
| code | Pressure chamber plug Isolation diaphragm |
22 | 3166ST 3166ST 3166ST |
| code | Remote flange |
F1 | Flange type |
| code | Accessories |
M4
B1
B2
B3 | Multi-function LED head
Bend bracket pipe mounting 2"
Bend bracket plate mounting
Flat bracket pipe mounting 2" |
