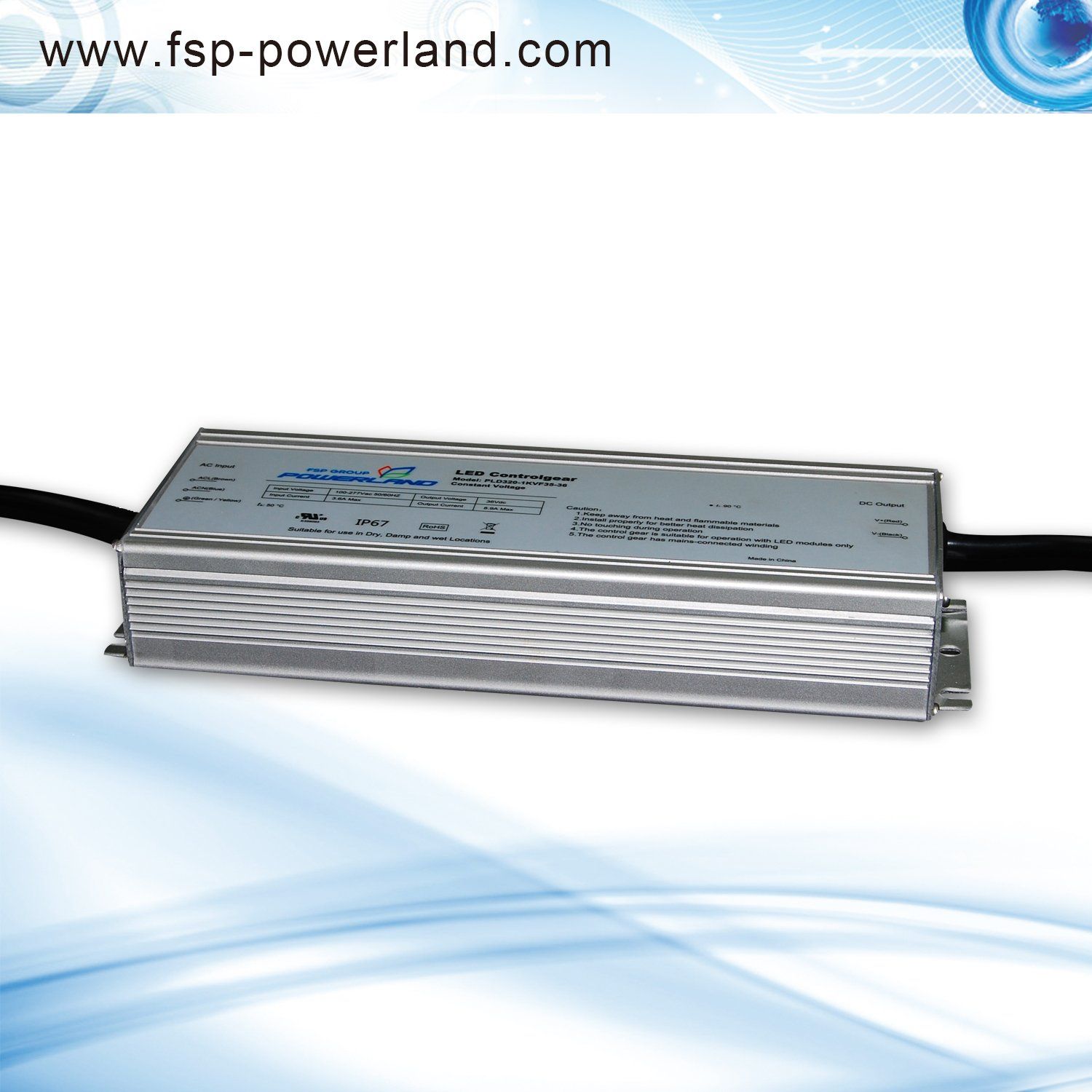

320W 36V Outdoor Constant Voltage Waterproof LED Power Supply

Name: 320W 36V Outdoor Constant Voltage Waterproof LED Power Supply
Brand: all-electronics-online.com
SKU: 798832125
Availability: InStock
Rating: 5 (47 reviews)

Price:	US $ 53-70/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD320-1KVF35-36
Output Power:	320W
Output Voltage:	36V
Output Current:	8.8A
Efficiency:	93%
Ingress Protection:	IP67
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	90~305VAC
Pack Sealing Size:	230X84X42.5 mm
Brand:	Fsp-Powerland

Product Description

320W 36V Outdoor Constant Voltage Waterproof LED Power Supply

PLD320-1KVF35-36 is a constant voltage drivers with 90~305Vac universal input.
The output voltage is 36V, and designed with 93% efficiency and all-around protections.

Applications
Outdoor & indoor LED lights
LED lights with constant voltage
Street lights, high bay and low bay lights, LED panels

Features
100,000 hours lifetime at 70ºC Tcase

7 years warranty at 70ºC Tcase
IP67 ingress protection

Min. operating temperature @ -40ºC
Constant voltage output

Universal input voltage: 90~305Vac
Safety according to UL8750 & EN61347-2-13

Surge voltage rating: L-N 3kV, L/NGND 6kV

EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection

Electrical Specifications

Model	PLD320-1KVF35-36
Output Voltage	36V
Output Current	8.8A
Output Power	320W
Max. Current Ripple	±10%
Voltage Range	90~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	4.0A
Max. Input Power	360W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	93%
Max. Open Circuit Voltage	39V
THD	<20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp & Wet
Working Temperature	-40~+70ºC
Max. Case Temperature	90ºC
Surge Protection	3kV/6kV
Agency Approbations	UL8750
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	230x84x42.5 mm (9.06x3.31x1.67 inch)
Mounting Length	244 mm (9.61 inch)
Overall Length	254 mm (10.00 inch)
Weight	1.68 kg (3.70 lb)
Life Time	100,000 hours @ full load, 70ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

Electrical Specifications

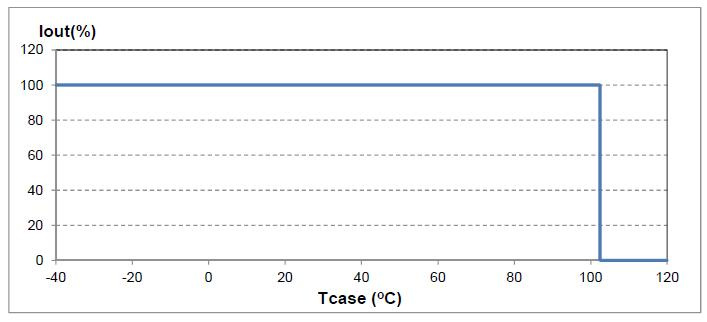

Output Current vs. Case Temperature (with ±5oC Tolerance)

Performance Characteristics
Power Factor vs. Output Power

Efficiency vs. Output Power

Performance Characteristics
Life Time vs. Case Temperature

Mechanical Specification
