Product Description

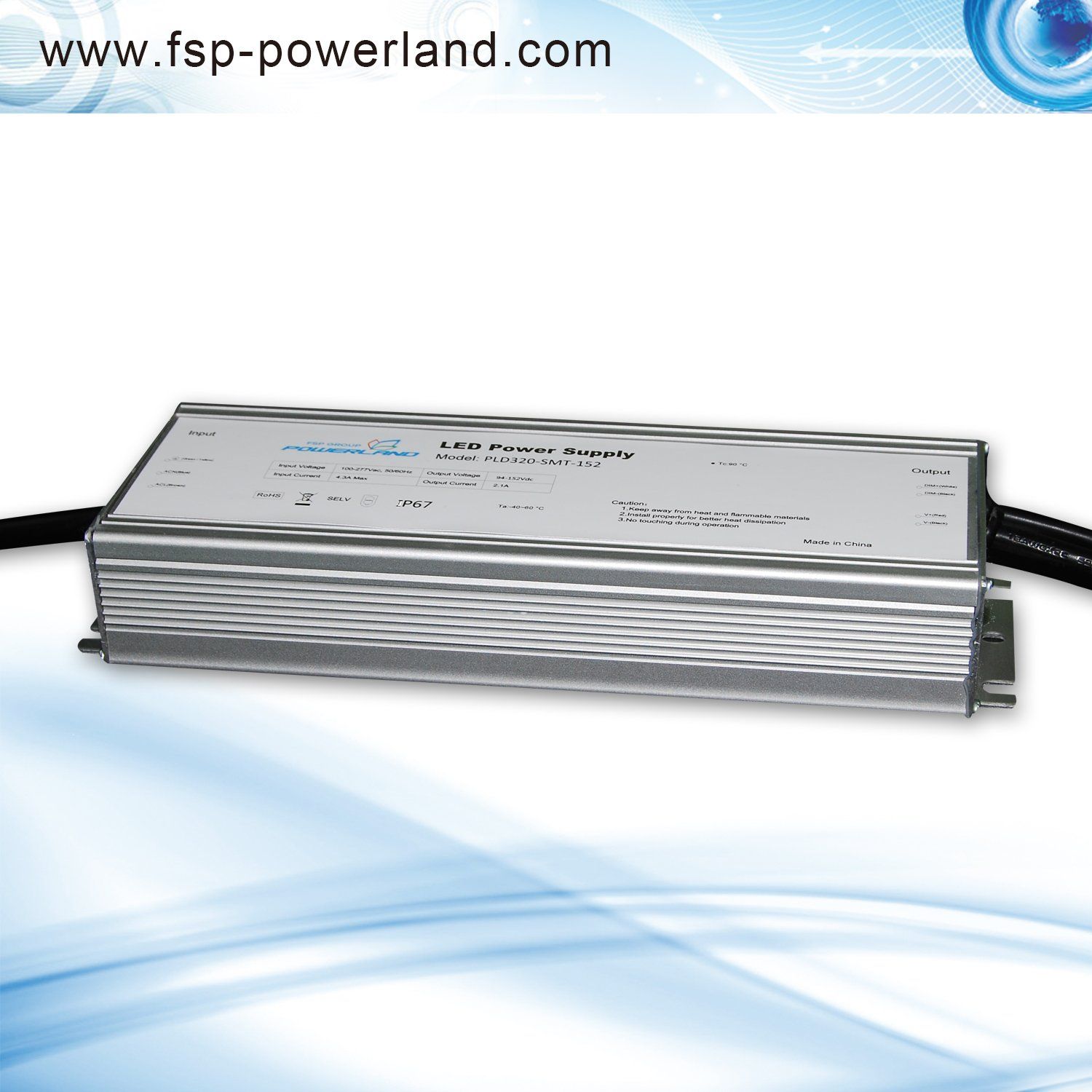

320W 5.93A Programmable Waterproof LED Power Supply
PLD320-SMT-54 offers digital programmable drivers with wide-range adjustable output current ,together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series is programmable up to 5.93A, and designed for 0(0.05V)-10V/PWM/Rset/Clock /DMX ultra-deep dimming applications.
Applications
Outdoor & indoor LED lights
LED lights with flexible current settings
Street lights, parking lights and Architecture decoration lights
LED Horticulture lights
Features
Ultra-deep dimming dowm to 0.5% compatible with DMX
12V/100mA auxiliary output(optional)
Output current & output voltage programmable
> 70,000 hours lifetime at 75oC Tcase
> 7 years warranty at 75oC Tcase
IP67 ingress protection
Min. operating temperature @ -40oC
Constant current & constant voltage output
Output current & output voltage programmable
Compatible with 0-10V, PWM, external resistor, clock dimming
Universal input voltage: 108~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection
Electrical Specifications
| Model | PLD320-SMT-54 |
| Output Voltage | 36~54V |
| Output Current | 5.93A |
| Output AUX Power Voltage (Optional) | 12V |
| Output AUX Power Current (Optional) | 0-100mA |
Dimming
| 0(0.05)~10V, PWM, External Resistor, Clock |
Current Programmable
| Yes |
| Output Power | 320W |
| Max. Current Ripple | ±10% |
Max. Voltage Ripple
| ±0.5% |
| Voltage Range | 108~305Vac |
| Frequency Range | 47~63Hz |
| Max. Input Current @ 230Vac | 3.5A |
| Max. Input Power | 360W |
| Power Factor | >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
| Efficiency | 93% |
| Max. Open Circuit Voltage | 63V |
| THD | <20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load |
| Protections | OVP, OTP, OCP, SCP |
| Environmental Protection | UL Dry & Damp & Wet |
| Working Temperature | -40~+70oC |
| Max. Case Temperature | 90oC |
| Surge Protection | 5.5kV/11kV |
| Agency Approbations | UL8750 |
| Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
| Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
| Isolation(Primary to Secondary) | 3750Vac / 10mAMax / 60seconds |
Isolation(Primary to Earth)
| 1875Vac / 10mAMax / 60seconds |
Isolation(Secondary to Earth)
| 1875Vac / 10mAMax / 60seconds |
| Dimension | 245x84x42.5 mm (9.65x3.31x1.67 inch) |
| Mounting Length | 259mm (10.2 inch) |
| Overall Length | 269 mm (10.59 inch) |
| Weight | 1.7 kg (3.75 lb) |
| Life Time | >70,000 hours @ full load, 75oC Tcase |
* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.
