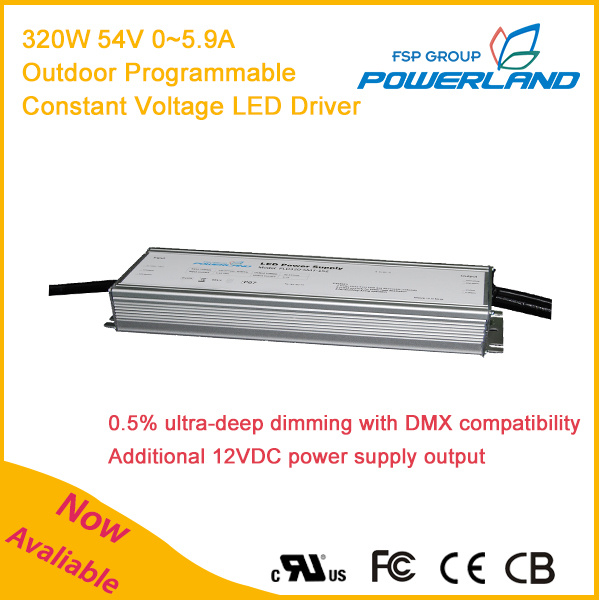

320W 54V 0~5.9A Outdoor Programmable Constant Voltage LED Power Supply

Name: 320W 54V 0~5.9A Outdoor Programmable Constant Voltage LED Power Supply
Brand: all-electronics-online.com
SKU: 804348765
Availability: InStock
Rating: 4.6 (141 reviews)

Price:	US $ 55-70/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD320-SMT-54
Output Power:	320W
Dimming:	0~10V, PWM, External Resistor, Clock
Output Voltage:	54V
Output Current:	0~5.9A
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	108~305VAC
Pack Sealing Size:	230X84X42.5 mm
Brand:	Fsp-Powerland

Product Description

320W 54V 0~5.9A Outdoor Programmable Constant Voltage LED Driver

PLD320-SMT-54 offers low-cost digital programmable constant voltage drivers with wide adjustable range, together with 12V/100mA auxiliary output (optional) for smart lighting.

The output voltage of this series is programmable up to 48V.

Applications
Outdoor & indoor LED lights
LED lights with flexible current settings
Street lights, parking lights and Architecture decoration lights
LED Horticulture lights

Features
> 70,000 hours lifetime at 75ºC Tcase
> 7 years warranty at 75ºC Tcase
IP67 ingress protection
Min. operating temperature @ -40ºC
Constant voltage output
Universal input voltage: 108~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class B for the model without 12V . FCC Part 15 Class A for the model with 12V
Lightning, OVP, SCP, OTP & Open Circuit Protection

Electrical Specifications

Model	PLD320-SMT-54
Output Voltage	54V
Output Current	0~5.93A
Output Power	320W
Max. Voltage Ripple	±0.5%
Voltage Range	108~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	3.5A
Max. Input Power	360W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 284Vac & 85~100% load
Efficiency	93%
Max. Open Circuit Voltage	65V
THD	<20% @ 120Vac & 80~100% load, <20% @ 284Vac & 85~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp & Wet
Working Temperature	-40~+70ºC
Max. Case Temperature	90ºC
Surge Protection	L-N 5.5kV, L/N-Earth 11kV
Agency Approbations	UL8750
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	245x84x42.5 mm (9.65x3.31x1.67 inch)
Mounting Length	259mm (10.2 inch)
Overall Length	269 mm (10.59 inch)
Weight	1.7 kg (3.75 lb)
Life Time	>70,000 hours @ full load, 75ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

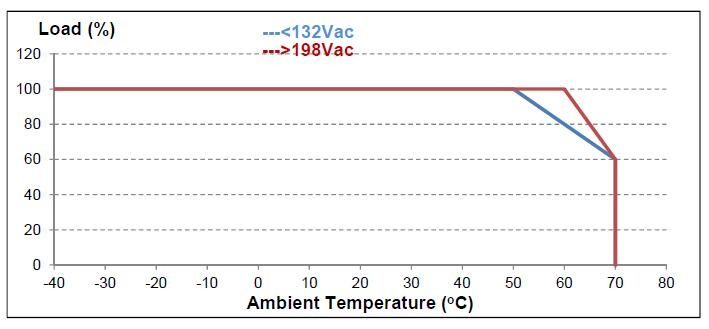

Dreating Curve

Electrical Specification

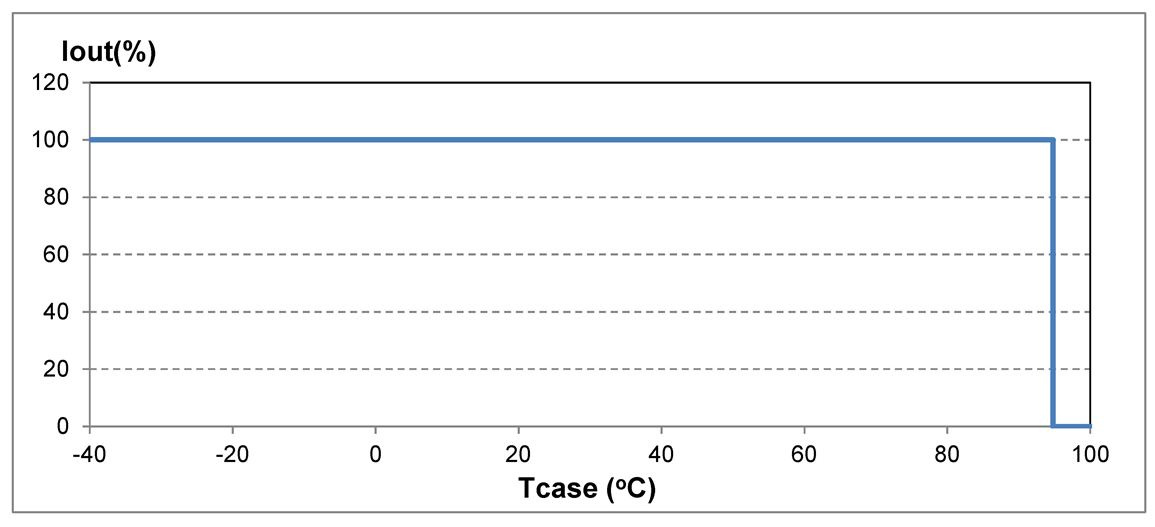

Output Current vs. Case Temperature

Performance Characteristics

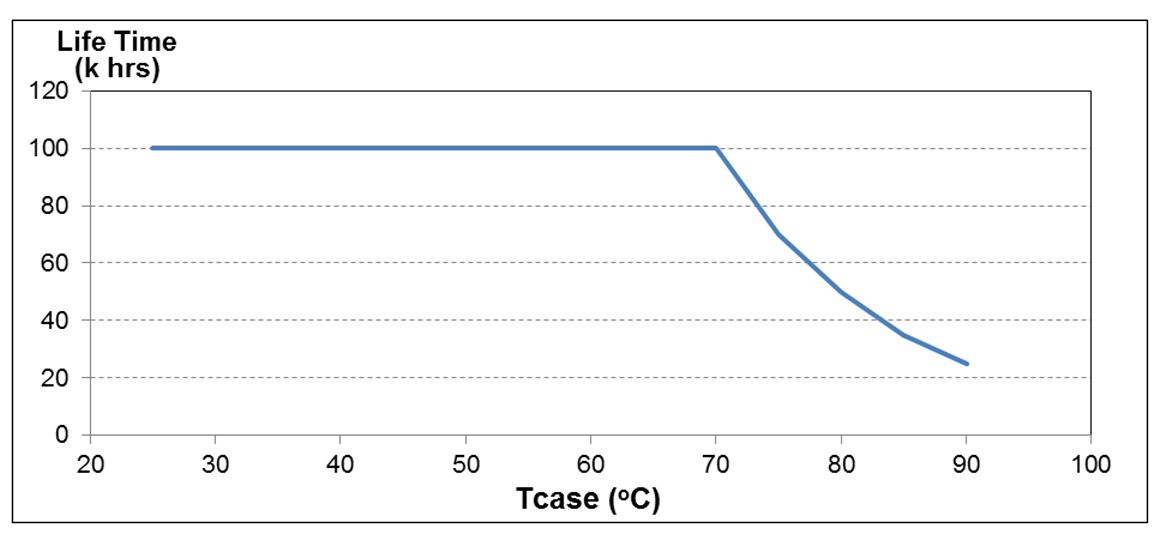

Life Time vs. Case Temperature

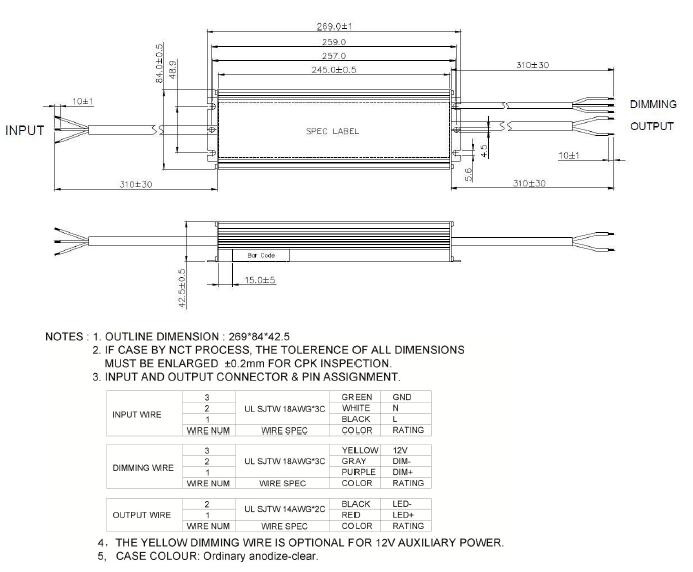

Mechanical Specification
