Product Description

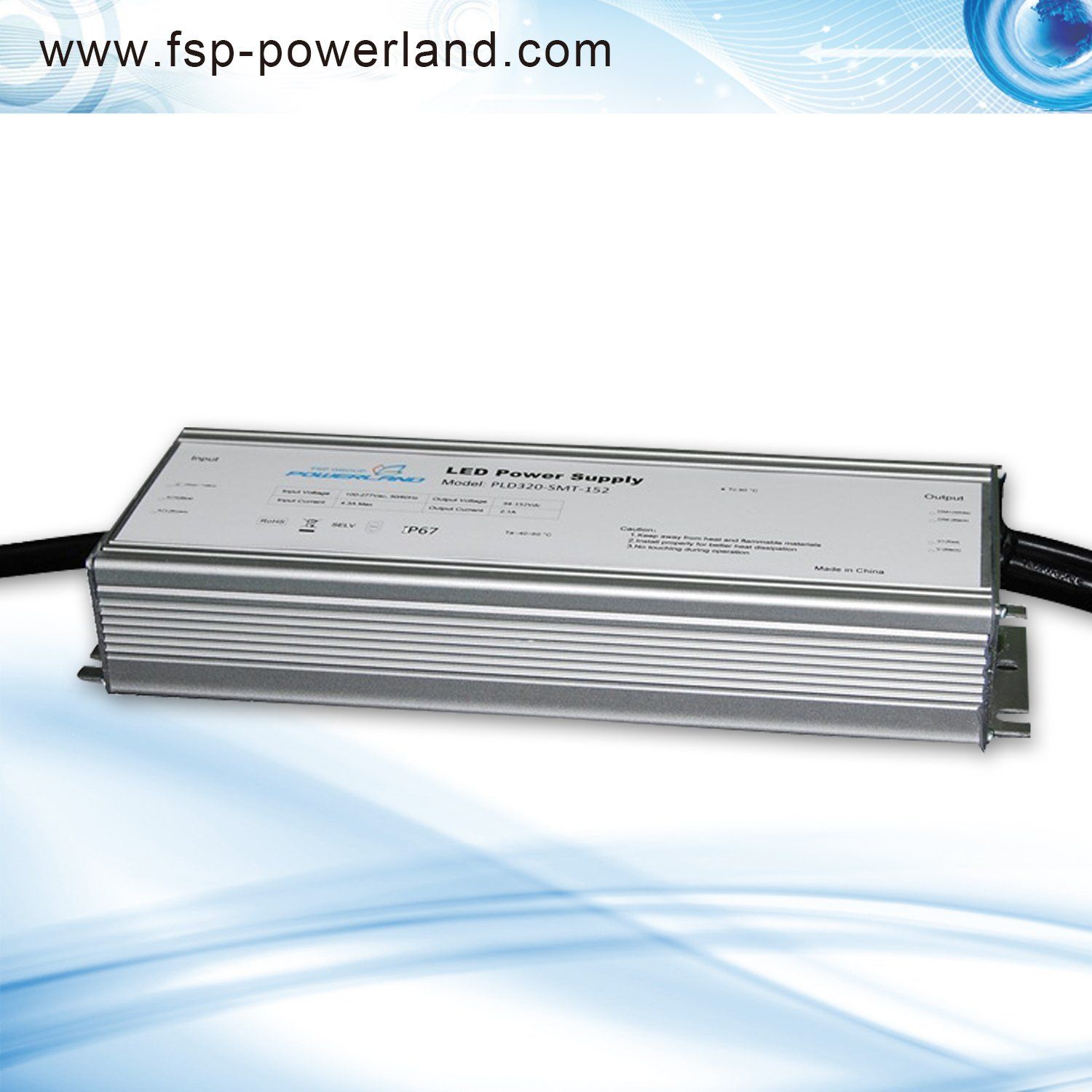

320W 8.88A Outdoor Programmable Constant Current LED Driver
PLD320-SMT-36C offers digital programmable drivers with wide-range adjustable output current and 90~305Vac universal input,together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series are programmable up to 8.88A, designed for 0(0.05V)-10V/PWM/Rset/Clock /DMX ultra-deep dimming applications.ApplicationsOutdoor & indoor LED lights
LED lights with flexible current settings
Street lights, parking lights and Architecture decoration lights
LED Horticulture lightsFeaturesUltra-deep dimming dowm to 0.5% compatible with DMX( Upom request)
12V/100mA auxiliary output(optional)
Output current & output voltage programmable
> 70,000 hours lifetime at 75ºC Tcase
> 7 years warranty at 75ºC Tcase
IP67 ingress protection
Min. operating temperature @ -40ºC
Constant current & constant voltage output
Output current & output voltage programmable
Compatible with 0(0.05)-10V, PWM, external resistor, clock dimming
Universal input voltage: 108~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class B for the model without 12V . FCC Part 15 Class A for the model with 12V
Lightning, OVP, SCP, OTP & Open Circuit ProtectionElectrical Specifications| Model | PLD320-SMT-36C |
Output Voltage | 24~36V |
Max Output Current | 8.88A |
| Output AUX Power Voltage (Optional) | 12V |
| Output AUX Power Current (Optional) | 0-100mA |
Dimming
| 0(0.05)~10V, PWM, External Resistor, Clock |
Current Programmable
| Yes |
Output Power | 320W |
Max. Current Ripple | ±10% |
Max. Voltage Ripple
| ±5% |
Voltage Range | 108~305Vac |
Frequency Range | 47~63Hz |
Max. Input Current @ 230Vac | 3.5A |
Max. Input Power | 360W |
Power Factor | >0.95 @ 115Vac & 80~100% load, >0.90 @ 284Vac & 85~100% load |
Efficiency | 92.5% |
Max. Open Circuit Voltage | 45V |
THD | <20% @ 120Vac & 80~100% load, <20% @ 284Vac & 85~100% load |
Protections | OVP, OTP, OCP, SCP |
Environmental Protection | UL Dry & Damp & Wet |
Working Temperature | -40~+70ºC |
Max. Case Temperature | 90ºC |
Surge Protection | L-N 5.5kV, L/N-Earth 11kV |
Agency Approbations | UL8750 |
Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation(Primary to Secondary) | 3750Vac / 10mAMax / 60seconds |
lsolation(Primary to Earth)
| 1875Vac / 10mAMax / 60seconds |
Isolation(Secondary to Earth)
| 875Vac / 10mAMax / 60seconds |
Dimension | 230x84x42.5 mm (9.06x3.31x1.67 inch) |
Mounting Length | 259mm (10.2 inch) |
Overall Length | 269 mm (10.59 inch) |
Weight | 1.7 kg (3.75 lb) |
Life Time | >70,000 hours @ full load, 75ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
Dreating Curve
Electrical Specification

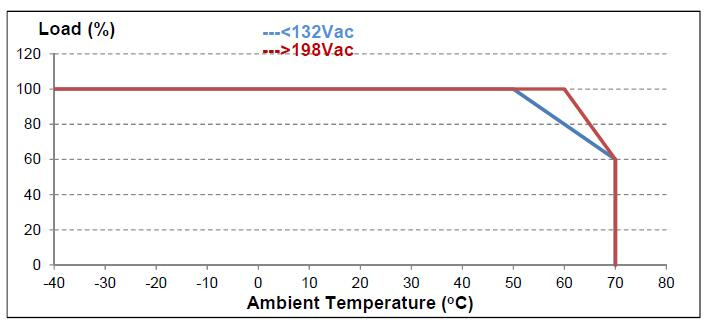

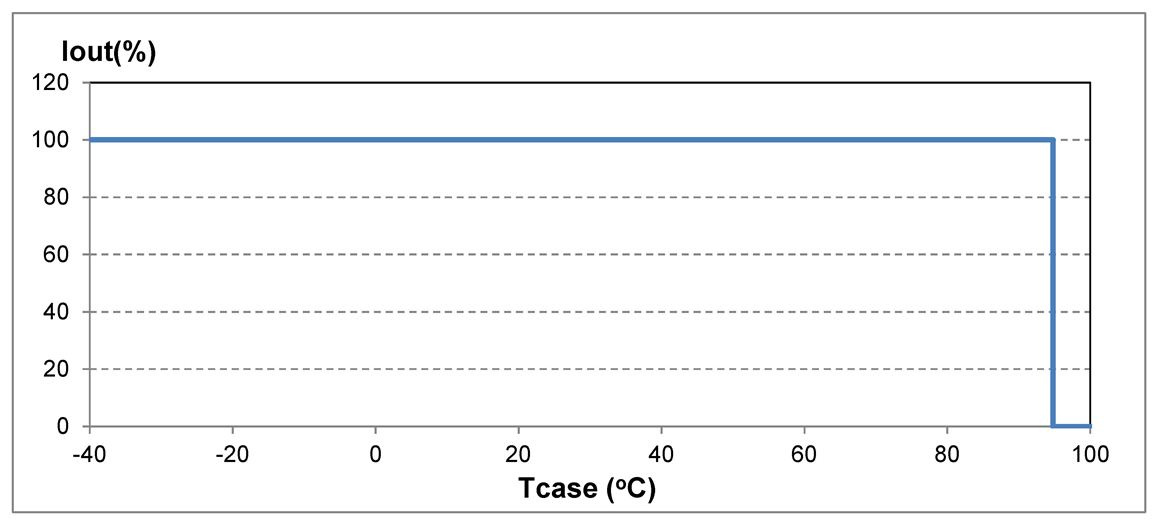

Output Current vs. Case Temperature

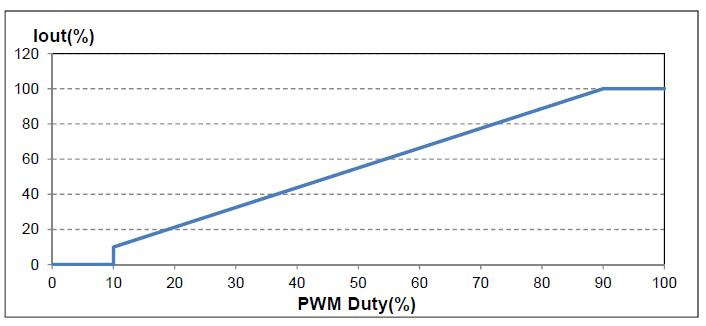

Output Current vs. PWM Dimming Duty Cycle

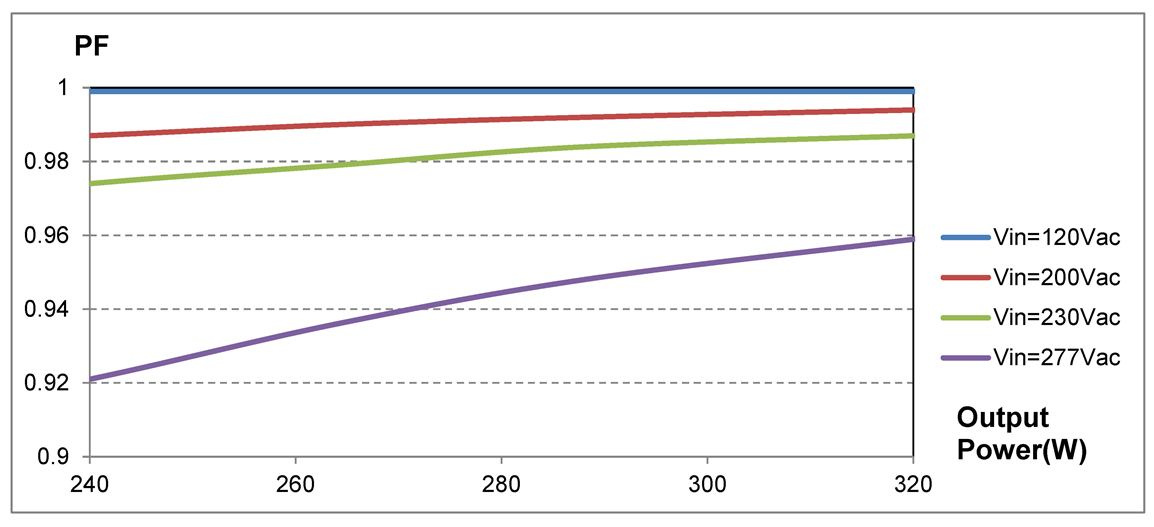

Power Factor vs. Output Power
Performance Characteristics

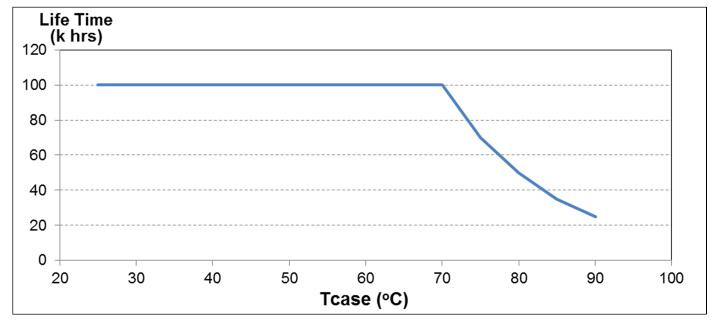

Life Time vs. Case Temperature

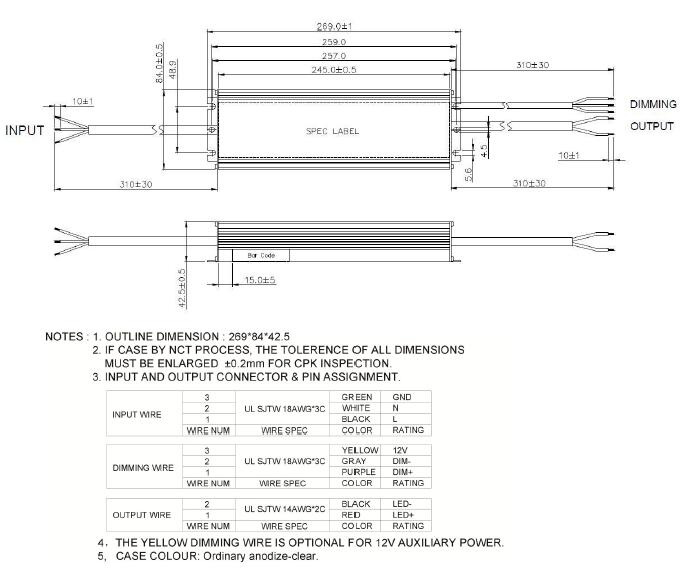

Mechanical Specification
