| Prod Model: |
PLD320-SMT |
| Output Power: |
320W |
| Dimming: |
0~10V, PWM, External Resistor, Clock |
| Output Voltage: |
24~420V |
| Output Current: |
0.7A~8.8A |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
90~305VAC |
| Pack Sealing Size: |
230X84X42.5 mm |
| Brand: |
Fsp-Powerland |
Product Description

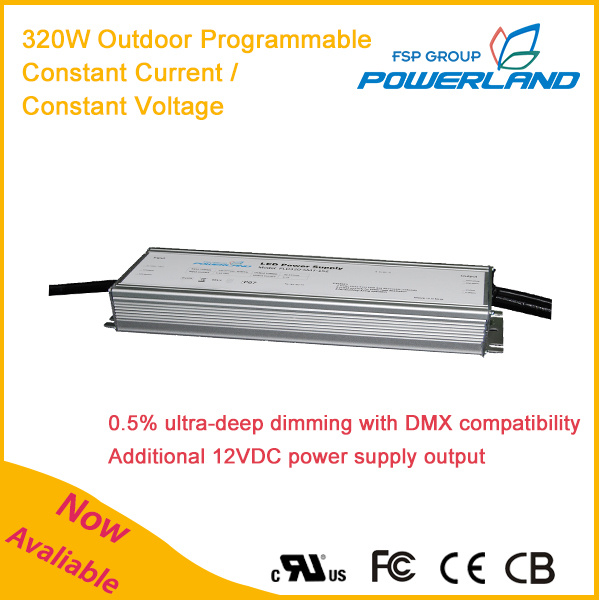

320W Outdoor Programmable Constant Current / Constant Voltage LED Driver
Powerland's PLD320-SMT series offers digital programmable drivers with wide-range adjustable output ,together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series is programmable up to 0.7/1.4/2.1/5.4/5.9/6.6/8.8A, and designed for 0(0.05V)-10V/PWM/Rset/Clock /DMX ultra-deep dimming applications.
Applications
Outdoor & indoor LED lights
LED lights with flexible current settings
Street lights, parking lights and Architecture decoration lights
LED Horticulture lights
FeaturesUltra-deep dimming dowm to 0.5% compatible with DMX( Upom request)
12V/100mA auxiliary output(optional)
Output current & output voltage programmable
> 70,000 hours lifetime at 75ºC Tcase
> 7 years warranty at 75ºC Tcase
IP67 ingress protection
Min. operating temperature @ -40ºC
Constant current & constant voltage output
Output current & output voltage programmable
Compatible with 0(0.05)-10V, PWM, external resistor, clock dimming
Universal input voltage: 108~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class B for the model without 12V . FCC Part 15 Class A for the model with 12V
Lightning, OVP, SCP, OTP & Open Circuit Protection
SpecificationsInput
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input
Current | Max. Input
Power | THD | Power
Factor |
| 108~305Vac | 320W | 24V
…
428V | 0.7A
…
8.88A | 94% | 90ºC | 4.0A | 360W | <20% | >0.95 |
* Based on 25ºC ambient temperature, rated input voltage, and full load.
** Refer to Page 2 for detailed specifications for this series of LED drivers.
Electrical Specifications| Model | PLD320-SMT-36C | PLD320-SMT-48 | PLD320-SMT-54 | PLD320-SMT-58 | PLD320-SMT-152 | PLD320-SMT-228 | PLD320-SMT-428 |
Output Voltage | 24~36V | 32~48V | 36~54V | 40~58.8V | 94~152V | 142~228V | 320~428V |
Output Current | 8.88A | 6.66A | 5.93A | 5.52A | 2.1A | 1.4A | 0.7A |
Dimming
| 0(0.05)~10V, PWM, External Resistor, Clock, DMX(upon request) |
Current Programmable
| Yes |
Output Power | 320W | 320W | 320W | 320W | 320W | 320W | 320W |
Max. Current Ripple | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Max. Voltage Ripple | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Voltage Range | 108~305Vac | 108~305Vac | 108~305Vac | 108~305Vac | 108~305Vac | 108~305Vac | 108~305Vac |
Frequency Range | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz |
Max. Input Current @ 230Vac | 3.5A | 3.5A | 3.5A | 3.5A | 3.5A | 3.5A | 3.5A |
Max. Input Power | 360W | 360W | 360W | 360W | 360W | 360W | 360W |
Power Factor | >0.95 @ 120Vac & 80~100% load, >0.90 @ 284Vac & 85~100% load |
Efficiency | 92.5% | 92.5% | 93% | 93% | 93% | 93.5% | 94% |
Max. Open Circuit Voltage | 45V | 65V | 65V | 65V | 175V | 265V | 480V |
THD | <20% @ 120Vac & 80~100% load, <20% @ 284Vac & 85~100% load |
Protections | OVP, OTP,Open Circuit Protection, SCP |
Environmental Protection | UL Dry & Damp & Wet |
Working Temperature | -40~+70ºC |
Max. Case Temperature | 90ºC |
Surge Protection | 5.5kV/11kV |
Agency Approbations | UL8750 |
Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation(Primary to Secondary) | 3750Vac / 10mAMax / 60seconds |
Isolation(Primary to Earth) | 1875Vac / 10mAMax / 60seconds |
Isolation(Secondary to Earth) | 1875Vac / 10mAMax / 60seconds |
Dimension | 245x84x42.5 mm (9.65x3.31x1.67 inch) |
Mounting Length | 259mm (10.2 inch) |
Overall Length | 269 mm (10.59 inch) |
Weight | 1.7 kg (3.75 lb) |
Life Time | >70,000 hours @ full load, 75ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

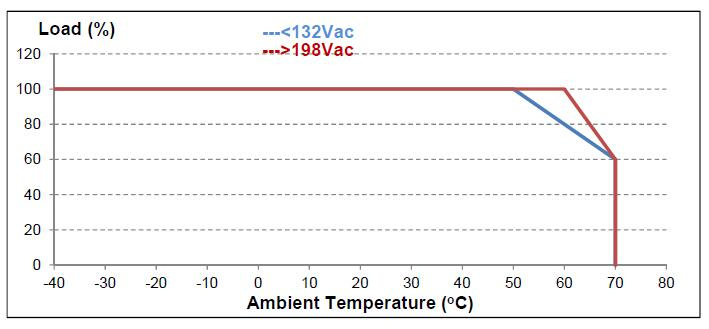

Dreating Curve
Electrical Specification

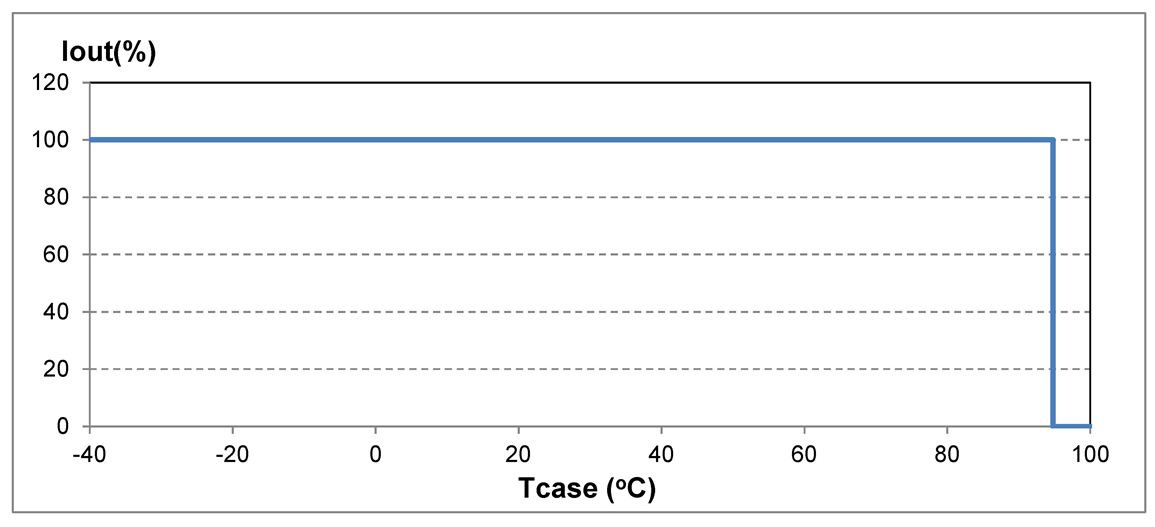

Output Current vs. Case Temperature

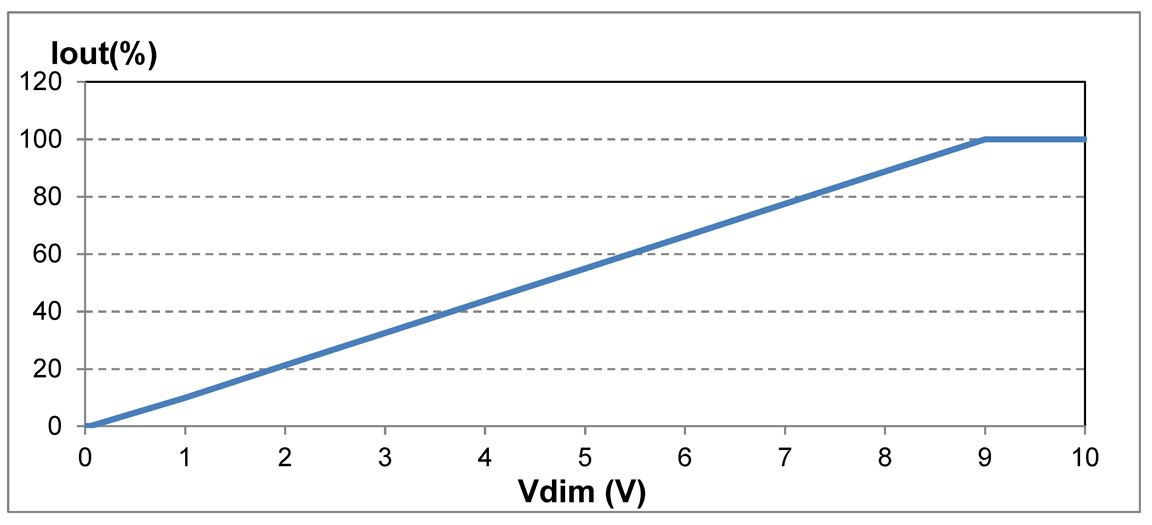

Output Current vs. 0(0.05)-10V Dimming Control Voltage
Performance Characteristics

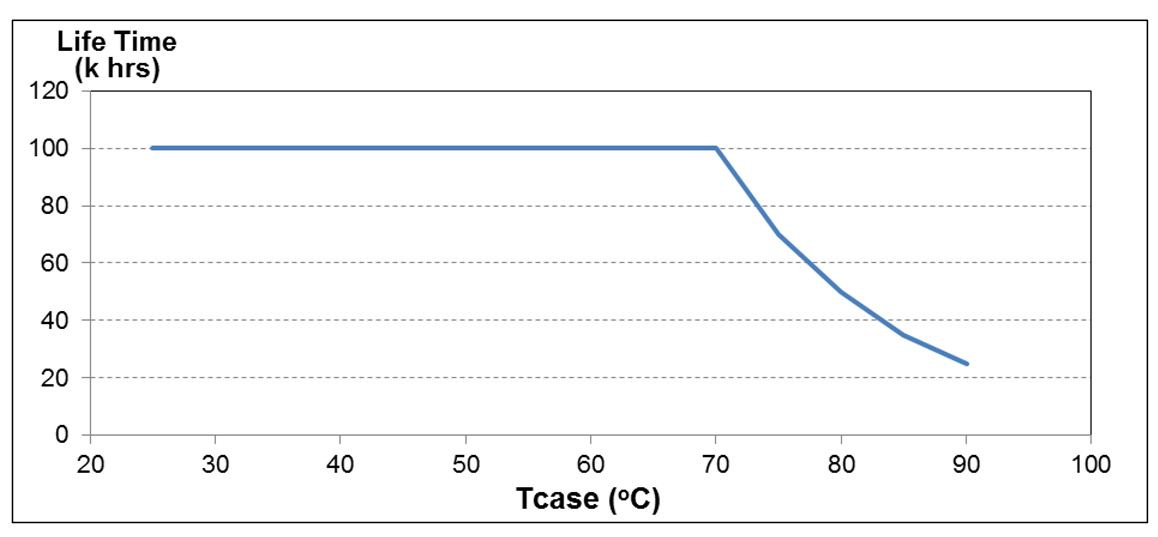

Life Time vs. Case Temperature

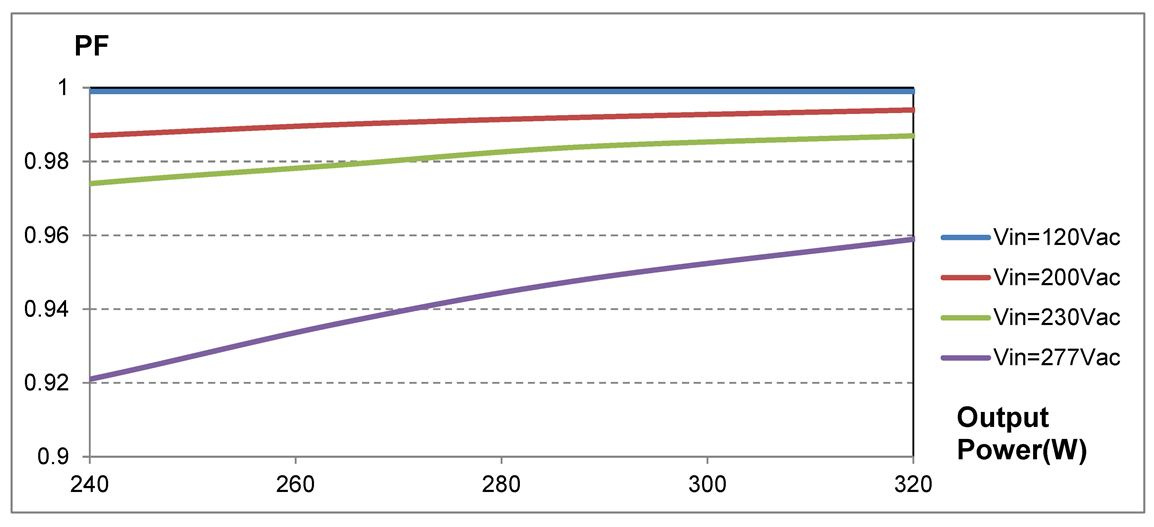

Power Factor vs. Output Power

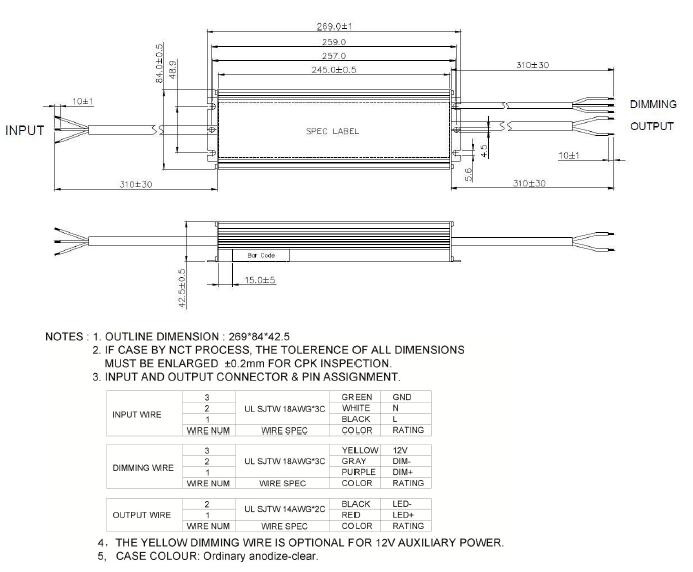

Mechanical Specification(Model: PLD320-SMT-36/PLD320-SMT-48/PLD320-SMT-54/PLD320-SMT-58)
