32AMP 380VAC Three Phase 3p Rack Automatic Transfer Switch for Power Supply

Name: 32AMP 380VAC Three Phase 3p Rack Automatic Transfer Switch for Power Supply
Brand: all-electronics-online.com
SKU: 804790735
Availability: InStock
Rating: 5 (98 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RSTS33-32A Rack series
Machine Size:	400420400mm
N/W:	27kg-31kg
Transfer Time:	5ms

Product Description

STS of RSTS-series is the sophisticated product with the high performance and high cost performance which is designed as for the Chinese level A computer room. It is the second generation of the fast load switch system researched with the fully new digital technology. It adopts the delay topology structure and realizes the precision of switch time fully to perfectly transfer the load. RSTS- series own the own the high protection which improves the safety and reliability of the system operation. RSTS-series have the harmonious LCD interface design to realize the zero-distance communication between the human and computer; RSTS-series add the STS and PC in communication. The users can learn the work status of STS through using RS232 to conduct the communication; With the application concept that the safety is the first, it is no doubt that STS of RSTS- series is the best choice of you.

Application fields:
It is suit to very high requirement surroundings, like high-speed railway,airport,bank and date center ,hospital,and so on. Static Transfer Switch can switch the mian power supply to the emergency one when it does't work.

Packaging & Delivery:
Waterproof Plastic bags ,Carton packing with foam interlayer are standard. But if you have special requirements we can make adjustment to fit you.

Performance and features:
* The design and production is conducted according to the standard power distribution requirements;
* The original imported SCR template design is adopted and the product has the strong overload and impact resistance capability;
* The delay topology structure is adopted and the precision of switch has been realized.
* The product has the extremely strong power adaptability and RSTS series can input the same phase and the different phase at the same time Power situation

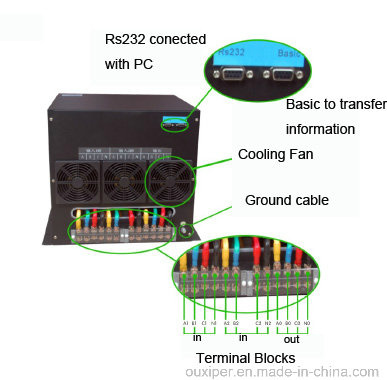

* The direct communication of RS232 and PC is adopted and the real-time monitoring of the upper computer is realized.
* The MCU digital control is adopted
* The intelligent inspection and monitoring function is adopted;
* The product has the protection area functions of over voltage, under voltage, over current and others;
*The product owns the LCD and LED operation monitoring interface;

Fast load transfer:
This series of products adopt the synchronous control technology and the high-sampling template to ensure the consistence. This series of products also have the MCU and GAL intelligent control chip to ensure that the power parts can switch the load supply circuit safely, reliable and rapidly

Main Technical Parameters:
Model		RSTS-3325	RSTS-3332	RSTS-3340	RSTS-3363	RSTS-33100
Standard Volume		16.5KW	21KW	26KW	41KW	66KW
Rated Current		each phase 25A	each phase 32A	each phase 40A	each phase 63A	each phase 100A
Switch Time		≤5ms
Output Interface		Cable row
Priority		Automatic setting
Input	Scope of input voltage of M1circuit	230VAC/380V
	Scope of input voltage of M2 circuit	230VAC/380V
	Scope of input frequency	50HZ-60HZ
	Power environment	Same phase and different phase
Output	Scope of output voltage	230VAC/380V
	Output over current	110%
	Output efficiency	≥98%
Management	Status display	Display of LCD electric quantity parameters, display of LED status
	Interface management	RS232 interface/Baisc
	Software	X
Protection	Power surge protection	Input M1/input M2
	Communication surge protection	RS232 interface/Basic
	Overload short circuit protection	Over current short circuit protect
Standard Recognition	Design and production	ISO9001:2000
	Safety certificate	EN50091-2,IEC60950
	Electromagnetic compatibility	EN50091-2,EN61000-3-2,EN6000-4-2/-3/-4
Environment	Environmental temperature	-30°C----+60°C
	Environmental humidity	0%-90%
Physical property	Size of machine	400×420×400mm

After-sale Service:
1).All products will be strictly Quanlity Checked in hours before packing
2).All products will be packed before shipping
3).All products have warranty for one year.

Welcome to visit our manufacture:
Any requiries will be replied within 24 hours

Dongguan Ouxiper Eectronic Co., Ltd was established in 2005. The head office is in Hongkong. Our company is located in Dongguan city which has a good reputation of the world's factory in The Pearl River Delta center of Guangdong Province. It is a comprehensive enterprise which combines the design, development, manufacturing, sales and sevice. It is a member unit of China Power Supply Society. At present, our company owns the advance manufacturing equipment, professional technicians and perfect quality assurance system. With strong technical force, professional managing system and over 10 years of R&D experiences, our products are ensured to be first-class. Our company has reached the advanced level both in domestic and overseas in R&D capability, technicial level, production capacity and quality requirement. We have promoted our brand name products in overseas market. With high precise product technology, excellent R&D capability and good deliverability of high quality products, our company has set up longterm stable cooperation with so many domestic and well-known brand customers.

Our company is based on the enterprise principle of "pursuit the quality, breakthrough and innovation" and the enterprise spirit is dedication, innovation, exploration and progress. Computer room equipment safety of power and technical good service is our enterprise development orientation. Our company inherits operation concept that"quality first and customer supremacy", Providing the best products and classic service for you is our goal and we sincerely welcome negotiation and cooperation with all friends.

We are specialized in the R&D of STS static transfer switch and series products of PDU industrial plug. It is widely used in computer system, fire fighting system, hospital. Hotel, super-highway, metro^...And other Important electricity environment. With excellent quality, professional knowledge, considerate service, our company has gained the excellent praise from user. With the principle of mutual development, resourse sharing and classic service, our company bases on the huge market of Pearl River Delta and distributes both China and all over the world. Our company has established the professional supply system and after-sales service team. We become extremely popular supplier of equipments in the professional safe computer room and gained excellent evaluation in the industry.
