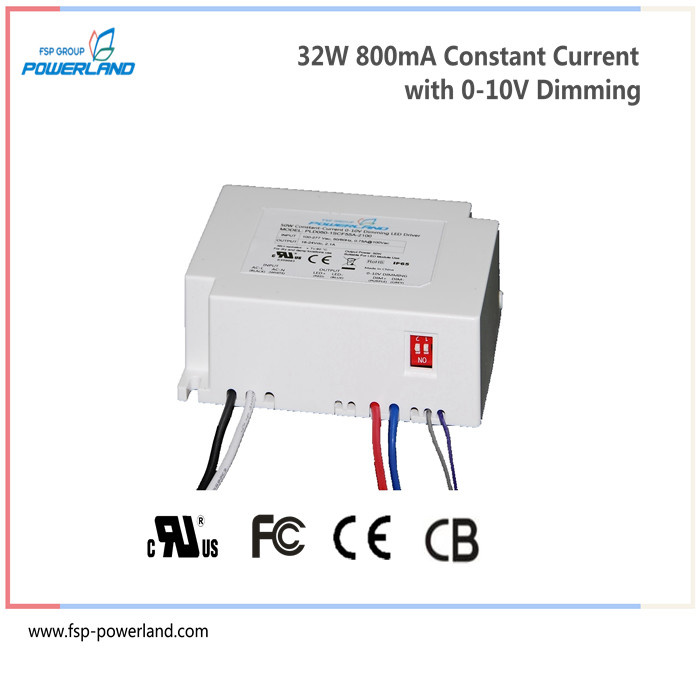

32W 800mA Constant Current Dimmable Spot Light LED Driver

Name: 32W 800mA Constant Current Dimmable Spot Light LED Driver
Brand: all-electronics-online.com
SKU: 798571805
Availability: InStock
Rating: 4.9 (91 reviews)

Price:	US $ 11.8-18/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD032-1SCF55A-800
Output Power:	32W
Dimming:	0-10V Dimming
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	108~305VAC
Pack Sealing Size:	95X70X32 mm
Brand:	Fsp-Powerland

Product Description

32W 800mA Constant Current Dimmable Spot Light LED Driver with 5 Years Warranty

PLD032-1SCF55A-800 offers constant current drivers with wide-range dimmable output
current and 108~305Vac universal input.

The output current of this series is up to 0.8A ,and designed for 0-10V dimming applications.

Applications
Indoor LED lights
Downlights, spotlights, LED panels

Features
100,000 hours lifetime at 65oC Tcase

5 years warranty at 50oC Tcase

Constant current output
Compatible with 0-10V dimming
Universal input voltage: 108~305Vac

Safety according to UL8750 &EN61347-2-13

EMC according to FCC Part 15 Class B

Lightning, OVP, SCP, & Open Circuit Protection

Electrical Specifications

Model	PLD032-1SCF55A-800
Output Voltage	25~40V
Output Current	800mA
Dimming	0-10V Dimming
Output Power	32W
Max. Current Ripple	±30%
Voltage Range	108~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	0.40A
Max. Input Power	42W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	87%
Max. Open Circuit Voltage	70V
THD	<20% @ 120Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp
Working Temperature	-20~+60oC
Max. Case Temperature	90oC
Surge Protection	1kV
Agency Approbations	UL8750
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	95x70x32 mm (3.74x2.76x1.26 inch)
Mounting Length	85 mm (3.35 inch)
Overall Length	95 mm (3.74 inch)
Weight	0.34 kg (0.75 lb)
Life Time	100,000 hours @ full load, 65oC Tcase

* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.

Performance Characteristics

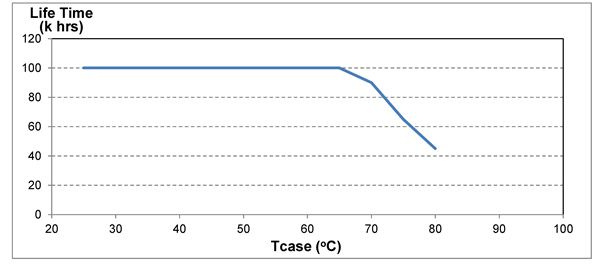

Life Time vs. Case Temperature

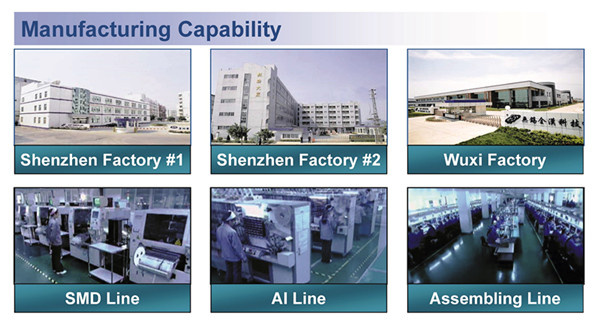

FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.

Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.

Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
