| Prod Model: |
QW296-430-L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
29.6V Li-ion or Li-Polymer Battery Pack |
| Warranty: |
One Year |
| Desktop Type: |
Yes |
| Delivery Date: |
15days |
| Type: |
Li-Polymer Battery |
| Charger Type: |
Electric Charger |
| Nominal Voltage: |
33.6V |
Product Description

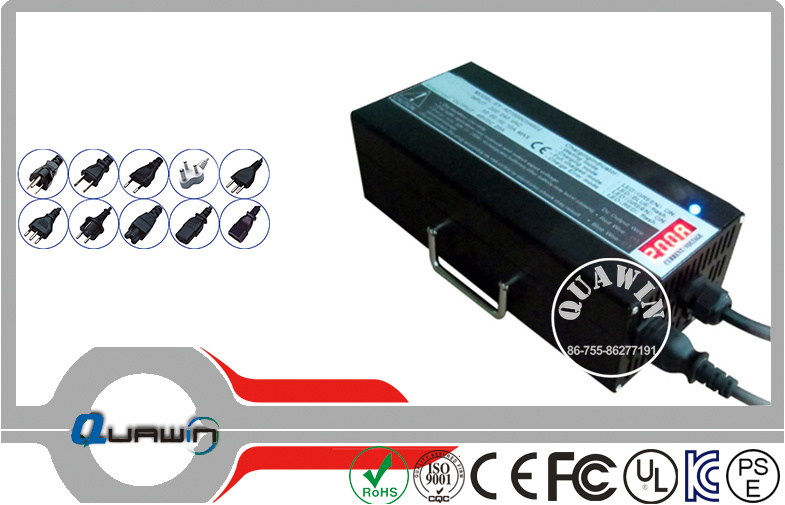

29.6V Li-ion Lithium Polymer battery Charger(33.6V 43A)
Quick Detail:Brand Name: QUAWIN
Model Number: QW296-430-L
Use: 29.6V Li-ion or Li-polymer battery pack
Type: Electric
Place of Origin: Guangdong China (Mainland)
Battery charger: Automatic battery charger 33.6V
Certificate: CE RoHS
Color: Black
Input voltage: AC 180~240V 45/65Hz with PFC
Output voltage: 33.6V
Output current: 43A
Output power: 1444.8W
Charge mode: CC- CV(Constant Current- Constant Voltage), with MCU controller.
Output Connector: Alligator Clip, SR175A Output Plug, SB175A Output Plug, SB50A Output Plug, Custom
Packaging & Delivery:Inner package: White box/polybags/at your request
outer package: Carton
Specifications:29.6V Li-ion or Lithium Polymer battery PACK
Features:Charging mode: CC- CV(Constant Current- Constant Voltage), with MCU controller.
High efficiency and low power consumption
Stabilized output and low noice
Efficiency(at 100% load): 90%
Operating temperature: -10C ~ 45C
Storage temperature: -20C ~ 70C
Operating humidity: 5%~90%RH
Shock & Vibration: SAEJ1378 Standard
Specification:Input: AC 180~240V 45/65Hz with PFC
Output: DC 33.6V
Charging current: 43A
Weight: 3000g(only body)
Dimension: 264*120*84mm
Safety protections:
Over Voltage protection
Short Circuit protection
Polarity error protection
Over power protection
LED Indicator:GREEN Light ON: Fully charged or no connected.
BLUE Light flash: Battery is being charged.
RED Light ON: Charger under protection (over temperature protection, output short-circuit protection, reverse polarity protection, output over-voltage protection).
| ITEM | QW259-360-L | QW259-370-L | QW259-380-L | QW259-390-L | QW259-400-L | QW296-360-L |
| Output voltage: | 29.4V | 29.4V | 29.4V | 29.4V | 29.4V | 33.6V |
| Rated output current: | 36A | 37A | 38A | 39A | 40A | 36A |
| Output power: | 1058.4W | 1087.8W | 1117.2W | 1146.6W | 1176W | 1209.6W |
| ITEM | QW296-370-L | QW296-380-L | QW296-390-L | QW296-400-L | QW296-410-L | QW296-420-L |
| Output voltage: | 33.6V | 33.6V | 33.6V | 33.6V | 33.6V | 33.6V |
| Rated output current: | 37A | 38A | 39A | 40A | 41A | 42A |
| Output power: | 1243.2W | 1276.8W | 1310.4W | 1344W | 1377.6W | 1411.2W |
| ITEM | QW296-430-L | QW296-440-L | QW333-320-L | QW333-330-L | QW333-340-L | QW333-350-L |
| Output voltage: | 33.6V | 33.6V | 37.8V | 37.8V | 37.8V | 37.8V |
| Rated output current: | 43A | 44A | 32A | 33A | 34A | 35A |
| Output power: | 1444.8W | 1478.4W | 1209.6W | 1247.4W | 1285.2W | 1323W |
| ITEM | QW333-360-L | QW333-370-L | QW333-380-L | QW333-390-L | QW370-290-L | QW370-300-L |
| Output voltage: | 37.8V | 37.8V | 37.8V | 37.8V | 42V | 42V |
| Rated output current: | 36A | 37A | 38A | 39A | 29A | 30A |
| Output power: | 1360.8W | 1398.6W | 1436.4W | 1474.2W | 1218W | 1260W |
| ITEM | QW370-310-L | QW370-320-L | QW370-330-L | QW370-340-L | QW370-350-L | QW407-270-L |
| Output voltage: | 42V | 42V | 42V | 42V | 42V | 46.2V |
| Rated output current: | 31A | 32A | 33A | 34A | 35A | 27A |
| Output power: | 1302W | 1344W | 1386W | 1428W | 1470W | 1247.4W |
| ITEM | QW407-280-L | QW407-290-L | QW407-300-L | QW407-310-L | QW407-320-L | QW444-240-L |
| Output voltage: | 46.2V | 46.2V | 46.2V | 46.2V | 46.2V | 50.4V |
| Rated output current: | 28A | 29A | 30A | 31A | 32A | 24A |
| Output power: | 1293.6W | 1339.8W | 1386W | 1432.2W | 1478.4W | 1209.6W |
